Configuration Options

Configurable parameters have a dialog box or a drop-down list. Once a
configuration change has been made on a page, be sure to click on the
"Apply" button to confirm the new setting. The following table
summarizes the Web page configuration buttons.
Button
Apply
Default
Reset
Notes: 1. To ensure proper screen refresh, be sure that Internet
2. When using Internet Explorer 5.0, you may have to manually

Panel Display

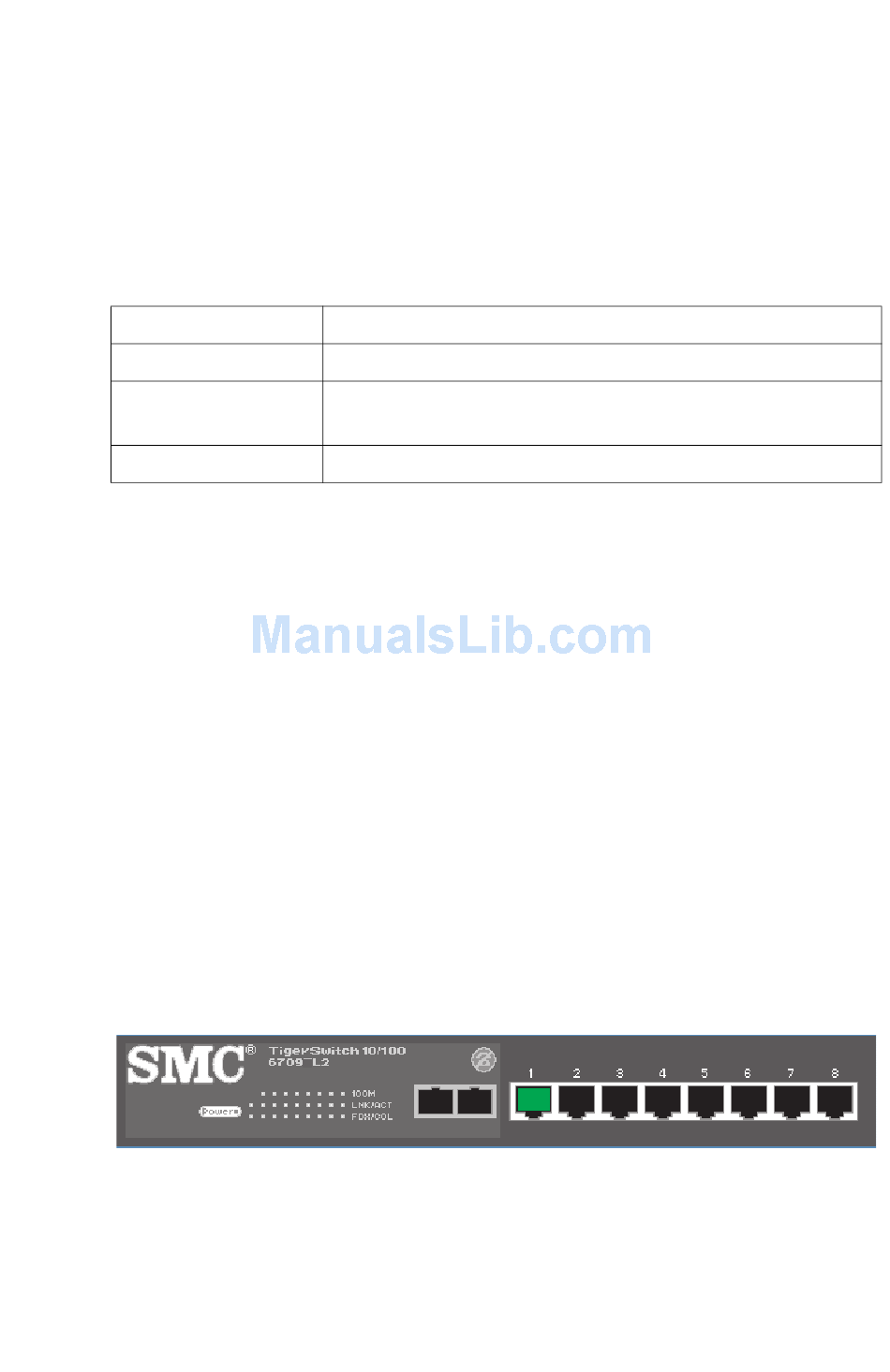

The Web agent displays an image of the switch's ports, indicating whether
each link is up or down. Clicking on the image of a port opens the Port
Configuration page as described on page 3-12.
Action
Sets specified values to the system for the displayed page.
Cancels specified values and restores current values prior
to pressing "Apply."
Immediately updates values for the current page.
Explorer 5.x is configured as follows: Under the menu "Tools
/ Internet Options / General / Temporary Internet Files /
Settings," the setting for item "Check for newer versions of
stored pages" should be "Every visit to the page."
refresh the screen after making configuration changes by
pressing the browser's refresh button.
