T
C
RUNK
ONFIGURATION

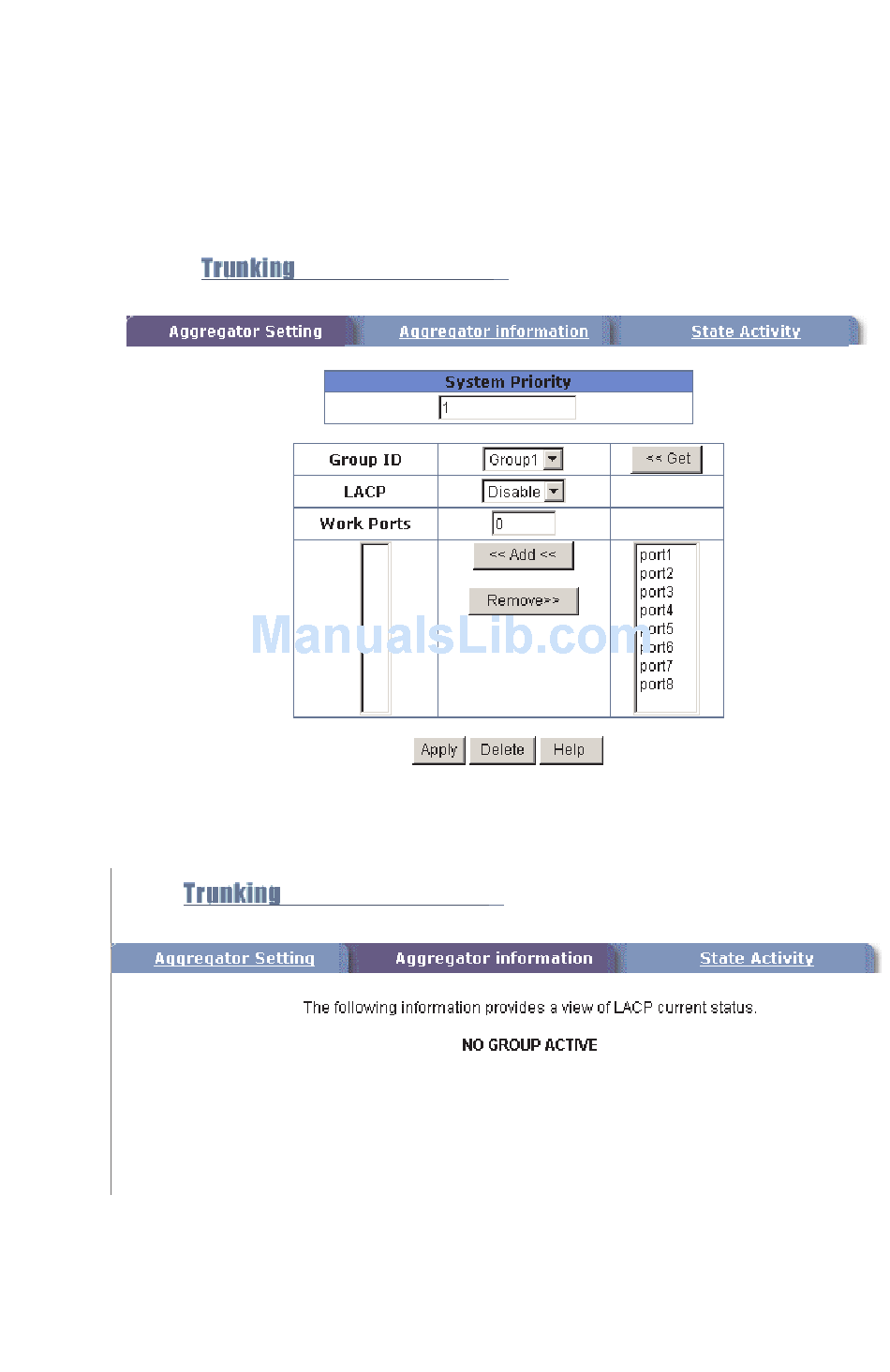

Web – Click Administrator=>Trunking=>Aggregator Setting. Select the
group ID and click the Get button to display the settings for the specified
group. Set LACP to "Disable." Use the Add and Remove buttons to assign
port members, and then click Apply.
Click Administrator=>Trunking=>Aggregator Information to display
currently configured static trunks and group members.
3-15
