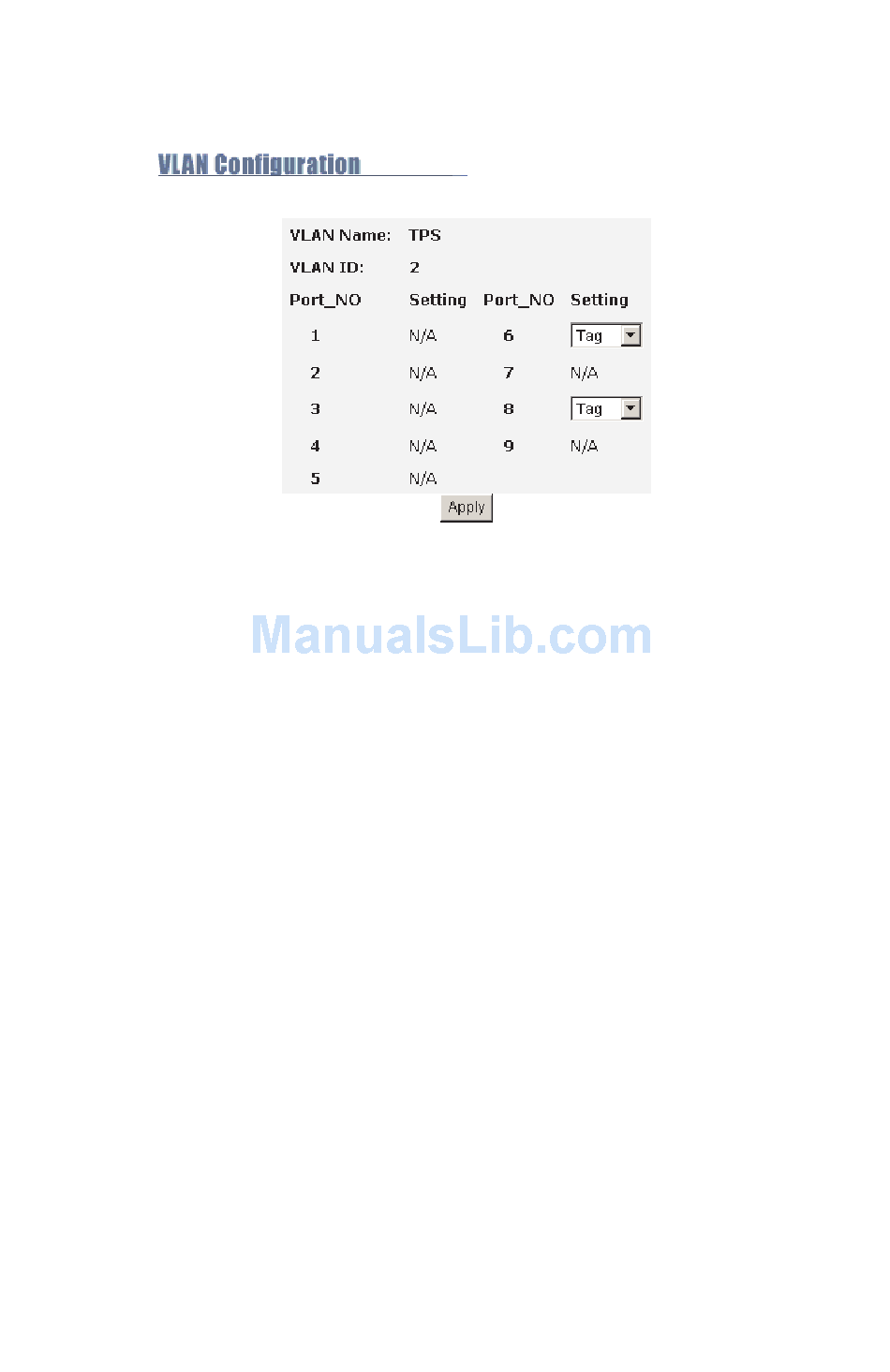

Set each port to transmit tagged or untagged frames, then click Apply.

Configuring the PVID and Ingress Filters

You also need to configure the default port VLAN ID (PVID), ingress
filtering, and acceptable frame types.
Field Attributes
• PVID – VLAN ID assigned to untagged frames received on the port.
(Default: 1)
• Ingress Filtering 1 – If ingress filtering is enabled, incoming frames
for VLANs which do not include this ingress port in their member set
will be discarded at the ingress port. (Default: Enabled)
- Ingress filtering only affects tagged frames.
- If enabled, the port will discard incoming frames tagged for VLANs
which do not include this ingress port in their member set.
- If disabled, the port will accept any VLAN-tagged frame if the tag
matches a VLAN known to the switch.
- Ingress filtering does not affect VLAN independent BPDU frames,
such as GVRP or STP.
• Ingress Filtering 2 – Sets the port to drop untagged frames. If only
tagged frames are accepted, the switch will only accept frames if the
frame tag matches a VLAN to which this port has been assigned.
(Default: Disabled)
