VLAN C
ONFIGURATION

Creating Tagged VLANs

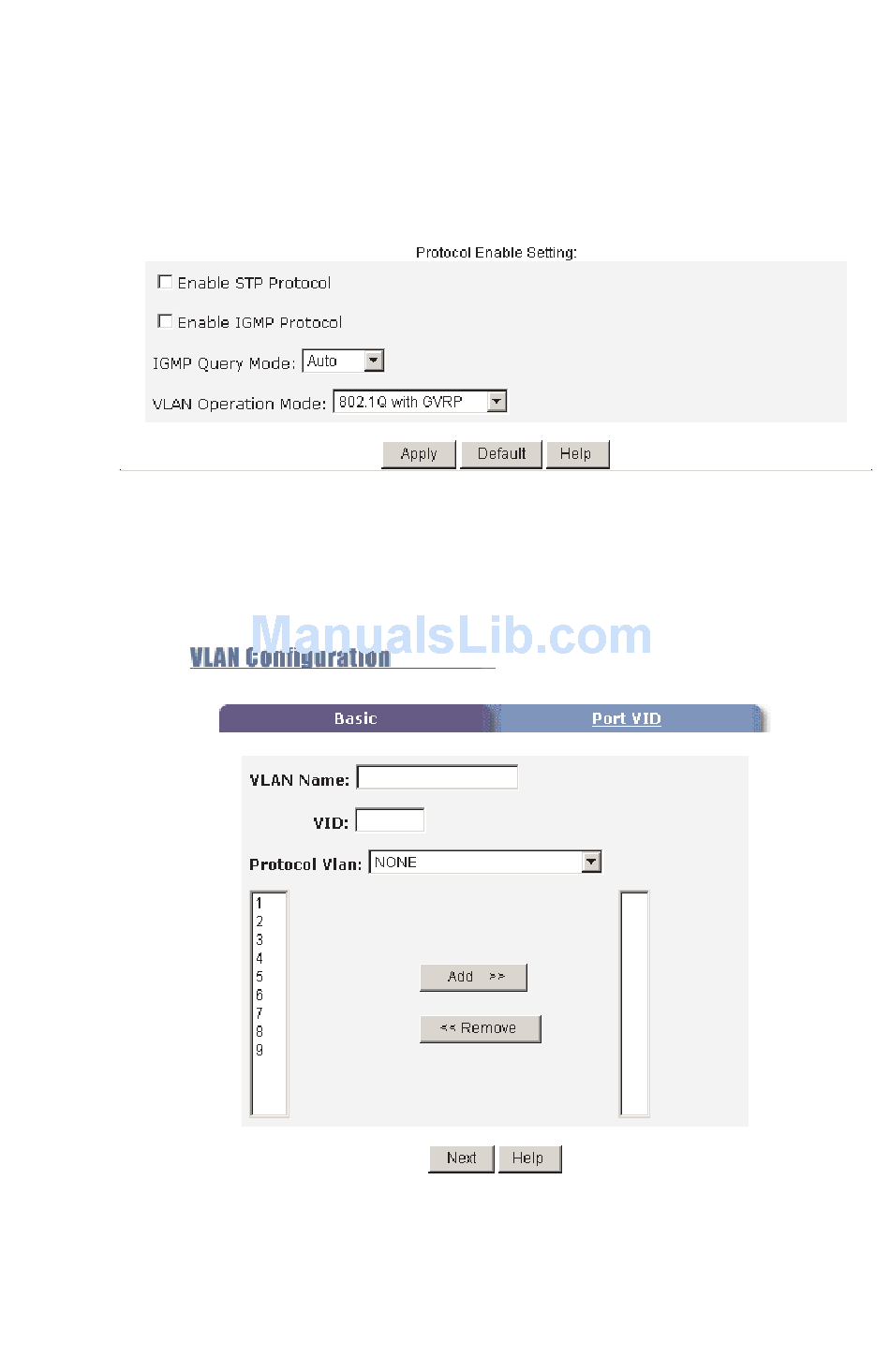

Web – Click Administrator=>Switch Settings=>Advanced. Set VLAN
Operation Mode to 802.1Q with or without GVRP, then click Apply.
Click Administrator=>VLAN Configuration=>Basic. Click Add to create a
group. Enter the VLAN Name (1-15 characters) and Group ID (2-4094).
Select a protocol type if you want to create a protocol based VLAN. Use
the Add or Remove buttons to configure port members, then click Next.
3-31
