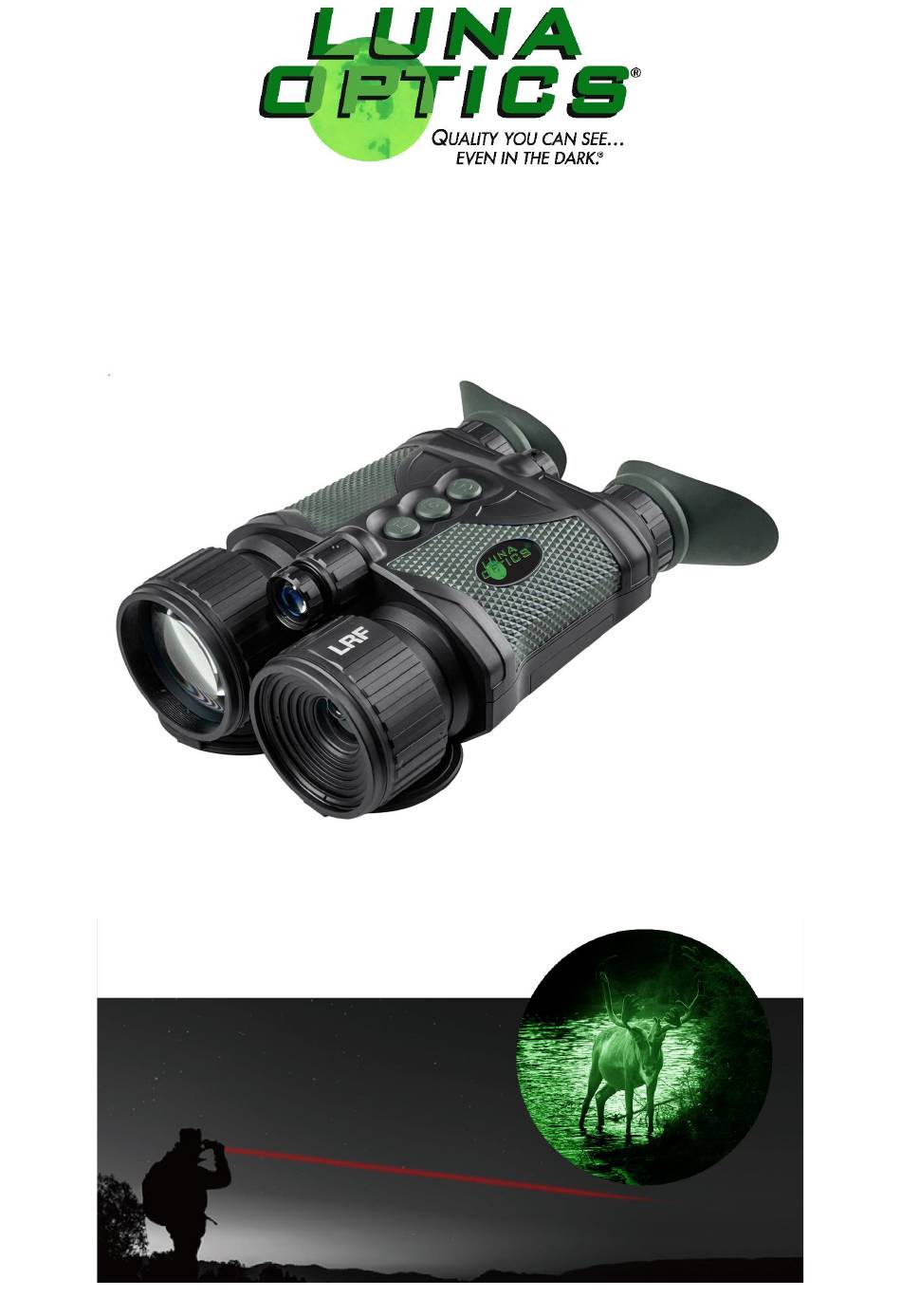

- Page 1 LN-QD-B50-PRO QUANTUM DIGITAL™ 2K Day/Night Vision Binoculars 6-36x50 Instruction Manual...
- Page 2 QUANTUM DIGITAL™ Day/Night Vision Binoculars represent the advanced level of digital electro- optics technology featuring an ultra-light sensitive large format CMOS sensor allowing it to be used in near dark conditions without the aid of a built-in IR illuminator. This device can be safely used in both daytime and nighttime.
- Page 3 Image Display Icons 1. Video recording indicator and timer 2. Taking photo while recording video 3. Image color selection 4. Ultra night vision mode 5. Display brightness adjustment 6. Video recording mode 7. Ultra night vision mode is on 8. Current image magnification 9.
- Page 4 1, To install the batteries, see the above vertical picture of the bottom of the binocular. Slightly press the thumb icon on the battery cover (16) with thumb, and at the same time, slide the battery cover according to the red arrow direction. Now the battery compartment is open. Then place the woven tape at the bottom of the battery container and install four CR123A or CR123R batteries.
- Page 5 Now rotate the distance focusing wheel (2) until the objects you are viewing are sharp and clear. After this adjustment is complete, you would generally only need to focus the distance wheel (2) going forward. Focusing Tips: If your eyes feel uncomfortable or the image is not clear enough during observation, it may be caused by incorrect eyepiece focusing or incorrect distance between left and right eyepieces.
- Page 6 Once Main Menu is activated, all Menu navigation is done the following way: Scrolling through the menu contents: rotate the multi-controller (M) in either direction (each click scrolls the menu by one step) Selecting and confirming function: short press onto the multi-controller (M) Return from selected function to Main Menu: Press and Hold onto multi- controller (M) for 2 seconds.
- Page 7 Press button (7) momentarily again. The icon will be shown. It means the IR brightness is on level 2. Press button (7) once again, the icon will be shown. It means the IR brightness is on level 3. Press button (7) once again and the infrared light will be turned off. You can circularly adjust the infrared light brightness among these 3 levels.
- Page 8 Laser Rangefinder Mode (Manual / Auto) Press button (5) to measure distance once. The central icon box〔 〕should be aimed at the object (at least 10m/11yds away). Press the button (5) momentarily again and the distance data will be shown on the screen center. (Single measurement) Press and hold button (5) for 2 seconds to activate auto rangefinder mode.
- Page 9 Wi-Fi function 1) On mobile phone, download and install the APP. NOTE: APP information will be provided on a separate paper. Then turn off the Wi-Fi on your mobile phone. 2) On the binoculars, press and hold the controller (M) for 2 seconds to enter the main menu, select Wi-Fi function and activate it.
- Page 10 display will show the calibration interface. Follow the calibration instructions. After calibration, the electronic compass will show product horizontal angle, elevation angle / depression angle, and 360° azimuth angle. When the device detects a weak signal during use, the calibration interface will appear on the display again.
- Page 11 How to view photos and videos stored on the Micro-SD card Press and hold the controller (M) for 2 seconds to enter the main menu, then scroll down and select Playback function. Select photo or video to view. Press controller (M) to play a video, press the controller (M) again to stop playing.
- Page 12 Press and hold the controller (M) for 2 seconds to enter the main menu, scroll down to Settings, then select Factory Reset function. Select OK to finish the factory reset. If a micro-SD card is inserted, files inside the card will not be deleted. Formatting the Micro-SD card Press and hold the controller (M) for 2 seconds to enter the main menu.
- Page 13 Setting and changing the Date/Time Press and hold the controller (M) for 2 seconds to enter the main menu. Scroll down to Settings, then select Date/Time function. Rotate the controller (M) to adjust data and press the controller (M) to switch among the fields. After everything is confirmed, press and hold the controller (M) for 2 seconds to save the date and time and exit the menu screen.
- Page 14 Changing the Language Press and hold the controller (M) for 2 seconds to enter the main menu. Scroll down to Settings, then select Language function. There are up to 10 language options on 2 pages. Connecting to an external Display / TV / Monitor Through the HDMI output port (15) on the device, you can connect the binoculars to the external display via included HDMI cable.
- Page 15 “Format Partition” (alternatively right-click on the highlighted disc and choose the same function). A pop-up window will appear. You can label your partition (such as “Luna Optics Binocular” or any other name you desire (it’s optional) and then make sure to select “FAT32” as the File System. Then click “OK”.
- Page 16 8. 32GB Micro-SD card (installed in the card slot) 9. Cleaning cloth NOTE: CR123A Batteries may or may not not be included with this product depending on the transportation restrictions. Luna Optics, Inc. 300 Hawthorn Dr. Fate, TX 75087 – USA Tel: +1-972-722-1100 / E-mail: info@lunaoptics.com Web: www.lunaoptics.com...
