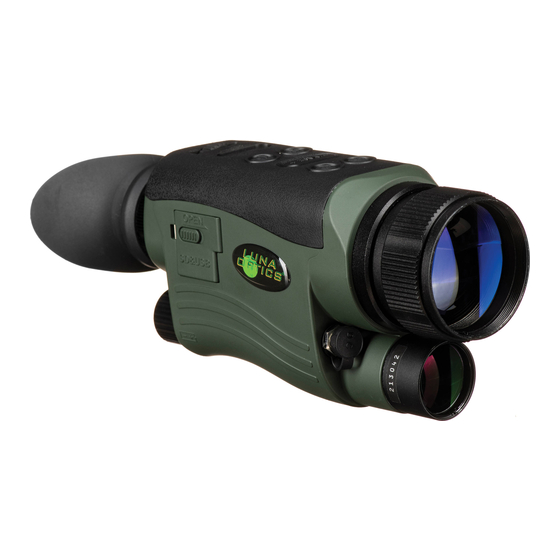

LUNA OPTICS LN-G2-M44 Instruction Manual

LUNA OPTICS LN-G2-M44 Instruction Manual

Gen-2 hd digital technology day & night monocular

Advertisement

Quick Links

LN-G2-M44 / LN-G2-M50
GEN-2 HD DIGITAL TECHNOLOGY
DAY & NIGHT MONOCULAR
INSTRUCTION MANUAL
IMPORTANT: Please read this manual in its entirety
prior to using this device!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LN-G2-M44 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LUNA OPTICS LN-G2-M44

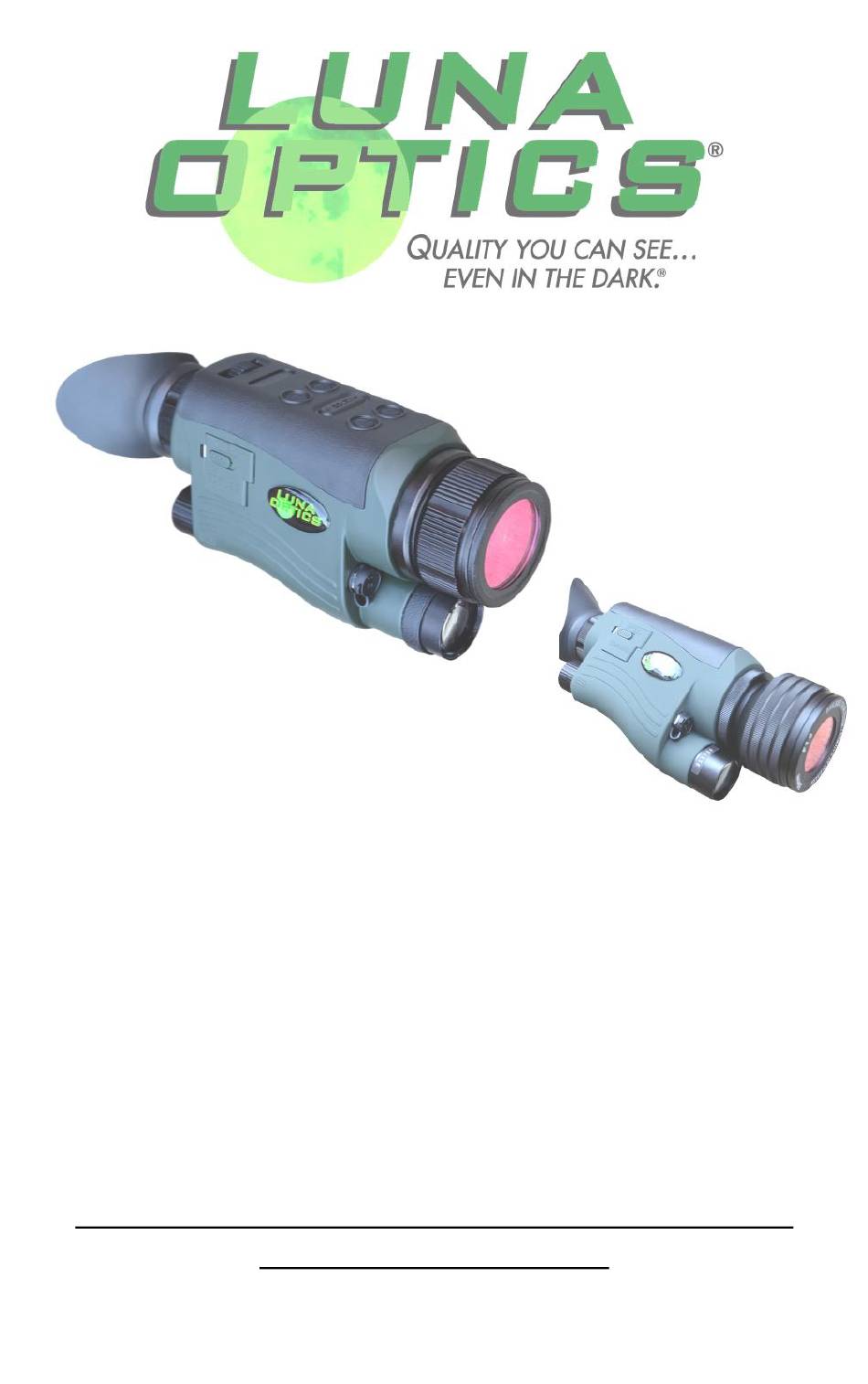

  • Page 1 LN-G2-M44 / LN-G2-M50 GEN-2 HD DIGITAL TECHNOLOGY DAY & NIGHT MONOCULAR INSTRUCTION MANUAL IMPORTANT: Please read this manual in its entirety prior to using this device!
  • Page 2 4. For more details on how to operate your viewer, please read this manual completely to ensure proper operation. YOUR PACKAGE INCLUDES THE FOLLOWING: 1. LN-G2-M44 or LN-G2-M50 Digital Monocular 2. 8GB Micro SD-card (installed into the SD-card slot) 3. Color Enhancing Filter (Daylight use only for vivid colors) 4.
  • Page 3 Please identify and remember all the parts of the monocular (LN-G2-M44 shown).
  • Page 4: Installing The Batteries

    GLOSSARY: 1 – Objective Lens Focusing Wheel 9 – Video Recorder Button 2 – Ocular Focusing Wheel 10 – Still Image Button 3 – Battery Compartments 11 – Image / Zoom Button 4 – Accessory / Tripod Mount 12 – Power ON/OFF Button 5 –...
  • Page 5: Setting Up Date And Time

    replace the objective lens cover after the unit is turned off and no longer is in use to protect the lens. IMPORTANT: When turning the unit ON it is normal to see some image flickering, as the components warm up to display the image. This is normal and does not affect the unit.
  • Page 6 ELECTRONIC IMAGE MAGNIFICATION ZOOM: Your unit is also equipped with electronic zoom function, which allows you to change image magnification from 5x to 25x on model LN-G2-M44 or 6x to 30x on model LN-G2-M50. To increase the image magnification press the IMAGE button (11) on the + side and look into the ocular –...
  • Page 7 next to the eyepiece will light on, indicating the IR illuminator is operating. The image will remain full color. To switch image to night vision green – press IR button again. To switch image to B&W press the IR button again. To turn the IR illuminator OFF press the same IR button again once.
  • Page 8 To take a picture, focus the unit onto the object you are viewing and with a steady hand firmly press the PIC button (10) once. The display will give a countdown (2-1) and then image is taken and is automatically stored onto the SD card.
  • Page 9 CHOOSING CORRECT ISO (SENSITIVITY) SETTING: Your digital monocular comes with 5 user-selectable ISO (sensitivity) settings, plus an AUTO mode. All units come with AUTO mode as a default setting and in most conditions this mode is the best choice for viewing and recording. In certain conditions where extra sensitivity is desired (such as Sky Watching where small light objects need to be constantly seen) it is better to select one of the highest ISO settings (between 1600 and 6400) for constant sensitivity,...
  • Page 10 “Format Partition” (alternatively right- click on the highlighted disc and choose the same function). A pop-up window will appear. You can label your partition (such as “Luna Optics Monocular” or any other name you desire (it’s optional) and then make sure to select “FAT32”...
  • Page 11: Troubleshooting

    the product. To do so, insert the card into its slot, turn the night vision on and through the menu find and select “Format”, then select “OK”. Once the card is formatted inside the night vision device it is now ready to use.
  • Page 12: Technical Specifications

    Power_______________2 x 3V Lithium (CR123A) / or 5V/2A Power Bank Operating Time _______________________________2.5-3hrs (CR123A) Dimensions (50mm lens)_____195mm x 84mm x 60mm (7.6”x3.3”x2.3”) Weight__________________________________490g - 510g (1-1.1 lbs.) Warranty________________________________________________1yr -------------------------------------------------------------------------------------------------------- LUNA OPTICS, INC. 300 Hawthorn Dr., Fate, TX 75087 (USA) E-mail: info@lunaoptics.com Web: www.lunaoptics.com © 2020...

This manual is also suitable for:

Ln-g2-m50
