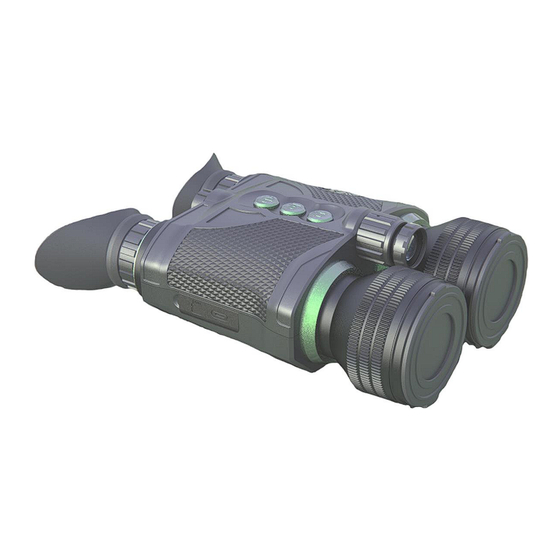

- Page 1 LN-G3-B50-PRO GEN-3 HD DIGITAL TECHNOLOGY DAY & NIGHT BINOCULAR 6.5-39x50 VERSION M7 V1.16 INSTRUCTION MANUAL IMPORTANT: Please read this manual in its entirety prior to using this device!
- Page 2 4. For more details on how to operate your viewer, please read this manual completely to ensure proper operation. YOUR PACKAGE INCLUDES THE FOLLOWING: 1. LN-G3-B50-PRO Binocular 2. 16GB Micro SD-card (installed into the SD-card slot) 3. Color Enhancing Filter (installed into the front lens cover – daylight use only –...
- Page 3 Please identify all the parts of the device PRIOR to operation! (Actual binocular housing (body) may differ from pictures below, however all parts and controls are identical) 11-b 11-a...
-
Page 4: Installing The Batteries
GLOSSARY: 1 – Objective Lens Focusing Ring 8 – Menu / Super Controller 2 – IR Illuminator Focusing Wheel 9 – Power Indicator Light 3 – IMAGE Button 10 – Folding Eyecups 4 – CAMERA / LRF Button 11 – Lens Covers: 5 –... - Page 5 and 2.4A, as less powerful output may fail to power the unit especially when the IR illuminator or Video/Wi-Fi functions are activated, and more powerful output is not necessary and may make power supply area hot to the touch. To connect the Power Bank, open the Connection Area rubber cover by gently pulling it outward and then swing it counter-clockwise to the right and locate the Micro-USB-C connector.
-
Page 6: On-Screen Display Icons
automatically disappear after some time. If you are not done focusing the eyepieces, you may continue doing so by focusing on the on-screen display icons.) Now it is time to focus the front objective lens to the distance of the object you wish to view. - Page 7 Counter Number Remaining Image Space MENU / SUPER CONTROLLER FUNCTIONS: our binocular features a unique and user-friendly adjustment called Super Controller (8). It incorporates various operating functions and makes navigating and adjusting menu functions fast, easy and natural without having to take your eyes off the eyepieces in the field.
-
Page 8: View Mode
MAIN MENU consists of the following selections: VIEW MODE: DAYTIME COLOR: this setting presents image in natural full color, best suited for daytime viewing and recording B&W MONOCHROME: this setting presents the image in monochrome black and white color (preferred for nighttime urban settings) NV GREEN PHOSPHOR: this setting presents image in traditional night vision green color (good for nighttime field settings) NV WHITE PHOSPHOR: this setting presents image in traditional night... - Page 9 FHD 1080P / 30FPS: HD 720P / 30FPS: CAPTURE MODE: Instant: select if you want no delay in capturing still image. Image will be captured as soon as the camera button is pressed. (Default mode) Delay 3S: device will count down 3-2-1 and then image is captured Delay 10S: device will countdown 10 seconds and then image is captured TV MODE: NTSC: select when connecting to TVs in North America (including USA),...
-
Page 10: Setting Up Date And Time
You can observe the current magnification level on the bottom of the image display once you start rotating the Super Controller. To decrease the image magnification, rotate the Super Controller to the left (counterclockwise) and image magnification will decrease. Factory default setting is 6.5x NOTE: During any image magnification adjustments, please avoid pressing onto the Super Controller, as this may activate the device main menu. - Page 11 5:30pm and so on. As with the date, changing hours and minutes is done by rotating the Controller and moving between hours and minutes is done by pressing onto it. Once the time is adjusted you may choose to change the date format to MM/DD/YYYY or YYYY/MM/DD according to your preference.
-
Page 12: Important: Please Read
IMAGE COLOR OPTIONS: The binocular has 5 distinct image colors, which are suitable for a variety of light and terrain conditions. In order to change the image color, you just need to momentarily press onto the Menu/Controller. Each press will switch to the next available color according to this order: Daytime Color (default mode) displays images in full-color. -
Page 13: Brightness Adjustment
BRIGHTNESS ADJUSTMENT: Your digital viewer is equipped with dual image brightness control. An automatic picture optimization sensor adjusts the image according to the available ambient and artificial light. In addition, a manual Image Brightness Button (3) allows you to fine-tune the image brightness to the most comfortable level. Please note that during daylight you will need to tone the brightness down to avoid image flickering and/or washout and to preserve the battery life. -
Page 14: Taking Pictures And Recording Videos
Once the rangefinder is activated, in Manual mode, you will need short-press the Camera/LRF button (4) (momentary press) and the distance is displayed. IMPORTANT: Please be aware that if you press and hold the Camera/LRF button, video recording will start, therefore if you only wish to measure the distance you must press and release the button immediately. - Page 15 installed into the SD-card slot. The Micro-SD card can be upgraded up to 128GB, which is especially useful if you plan to record a lot of videos See RE-FORMATTING 64 & 128GB CARDS TO FAT32 FORMAT on page 18 for important instructions. Your binocular features a multi-use CAMERA/LRF button (4).
- Page 16 IMPORTANT: If you see “Memory Error” message displayed, your micro-SD card is either bad, or, if you have a 64GB or 128GB card, it is not operating in FAT32 format. Please refer to page 18 for re-formatting instructions. SD-CARD REMOVAL, DATA VIEWING AND TRANSFER OPTIONS: It is possible to view the images and videos directly on the unit’s micro-display.
- Page 17 WI-FI LINK AND OPERATION INSTRUCTIONS: Download “ROADCAM” App on your Android phone/tablet or on iPhone/iPad. For Android users, if you have a problem finding the app in Google Play Store, please scan the QR code below Enter Main Menu and scroll to Wi-Fi selection. Turn the Wi-Fi ON. Now look through the eyepiece and observe the Wi-Fi signal name (typically M7_followed by a set of numbers) and Password (typically 12345678).
-
Page 18: Troubleshooting
“Format Partition” (alternatively right-click on the highlighted disc and choose the same function). A pop-up window will appear. You can label your partition (such as “Luna Optics Monocular” or any other name you desire (it’s optional) and then make sure to select “FAT32”... - Page 19 You have accidentally pressed onto the Super Controller. If Menu appears, press onto it again for approximately 2 seconds and Menu will disappear. 5. I’m trying to turn the IR illuminator on and instead the unit shuts down: You are holding the Power/IR button for more than 1 sec. To turn the IR illuminator on, you must press the button only momentarily.
-
Page 20: Technical Specifications
Operating Time (4xCR123A batteries, IR off, no video/Wi-Fi) _____________4.5hrs External outputs ____________________________________ micro-USB-C / RCA-V Dimensions_______________________190mm x 126mm x 76mm (7.5”x4.9”x2.9”) Weight__________________________________________________ 980g (2.2lbs) Warranty________________________________________________________2yrs ---------------------------------------------------------------------------------------------------------- LUNA OPTICS, INC. 300 Hawthorn Dr., Fate, TX 75087 (USA) E-mail: info@lunaoptics.com Web: www.lunaoptics.com © 2022...
