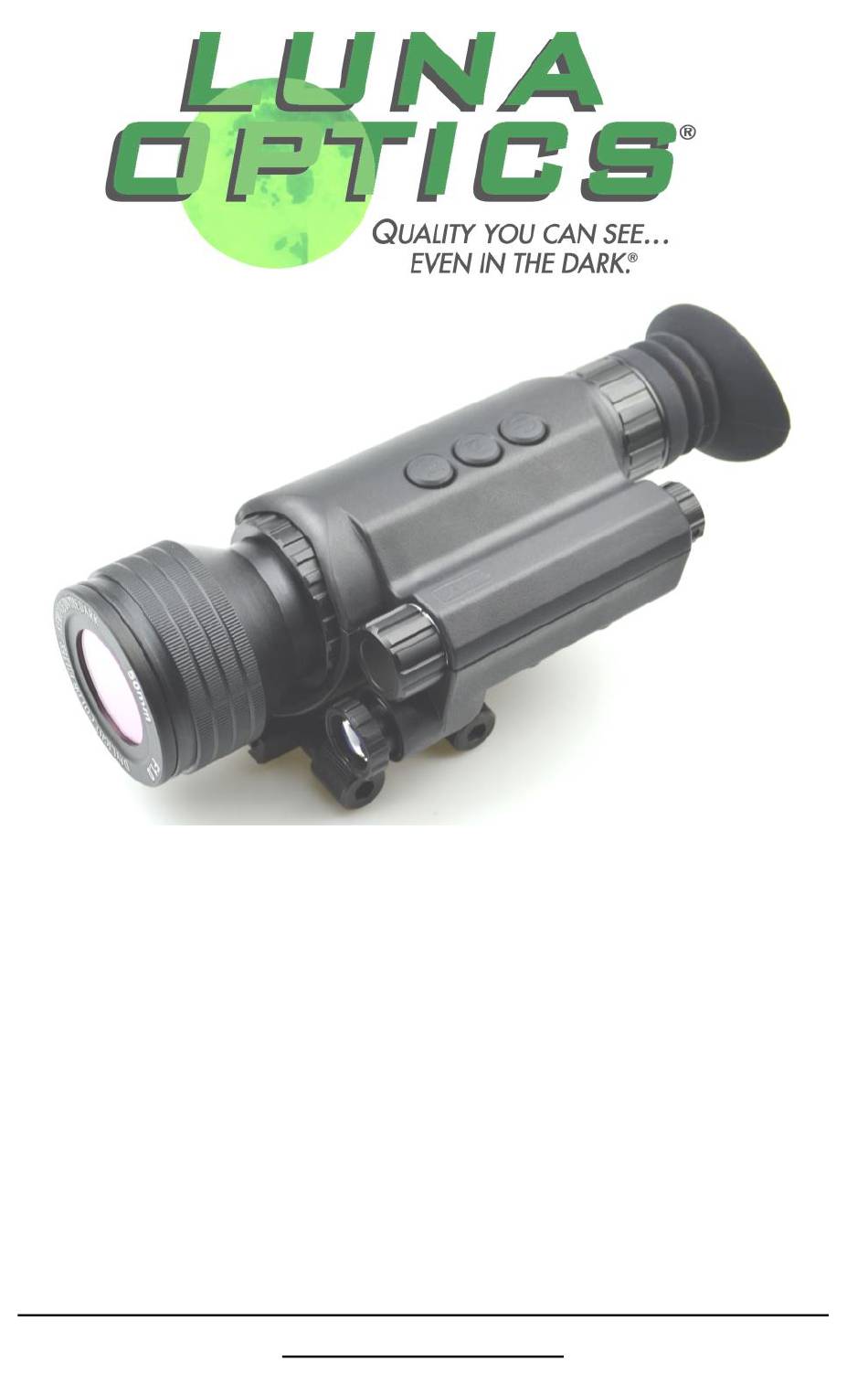

- Page 1 LN-G3-MS50 GEN-3 HD DIGITAL TECHNOLOGY DAY & NIGHT MONOCULAR / SCOPE 6-36x50 INSTRUCTION MANUAL IMPORTANT: Please read this manual in its entirety prior to using this device!
- Page 2 4. For more details on how to operate your viewer, please read this manual completely to ensure proper operation. YOUR PACKAGE INCLUDES THE FOLLOWING: 1. LN-G3-MS50 Monocular/Scope 2. Weapon Mount with 3 mounting screws and Allen Wrench Keys 3. 8GB Micro SD-card (installed into the SD-card slot) 4.
- Page 3 Please identify all the parts of the device PRIOR to operation! 11-a 11-b 11-c...
-
Page 4: Installing The Batteries
GLOSSARY: 1 – Objective Lens Focusing Wheel 9 – Menu Controller 2 – IMAGE Button 10 – Weapon Mount 3 – CAMERA Button 11 – Connection Area: 4 – POWER & IR Button 11-a) Micro-SD Card Slot 5 – Ocular Focusing Wheel 11-b) Micro-USB Connector 6 –... -
Page 5: Turning The Unit On And Off
DAYLIGHT COLOR ENHANCING FILTER: Your digital viewer is equipped with a unique daytime color enhancing filter, which provides vibrant and accurate colors rendition during daytime. The filter comes attached to the objective lens and we strongly recommend keeping it on during daytime use. - Page 6 activated. To connect the Power Bank, open the Connection Area (11) rubber cover by gently pulling it outward and then swing it counter-clockwise to the right and locate the Micro-USB connector (11-b). Connect the small end of the USB cable (included) to the connector and then connect the large end of the cable into Power Bank output.
-
Page 7: Image Color
RESOLUTION: FHD 1080P@30: Video record in Full-HD (Blue-Ray quality) at 30fps HD 720P@60: Video record in HD at 60fps (preferred at nighttime) HD 720P@30: Video record in HD at 30fps WVGA 480P@60: Video record at DVD quality at 60fps IMAGE COLOR: IMPORTANT: IMAGE COLOR CAN BE QUICKLY SELECTED BY SHORT-PRESSING ONTO MENU CONTROLLER (9) DURING EITHER VIDEO OR PHOTO MODE Normal: Image is displayed in Full-Color (best for daytime or well-lit room... -
Page 8: Image Button
Cancel: Exit to main menu OK: Returns monocular to factory settings VERSION: Displays current software version installed in your device ELECTRONIC IMAGE MAGNIFICATION ZOOM: Your unit is also equipped with electronic zoom function, which allows you to change image magnification from 6x to 36x. To increase the image magnification rotate the Menu Controller (9) to the right (clockwise) and look into the ocular –... -
Page 9: Setting Up Date And Time
a) OLED display brightness. Each short-press increases the display brightness by one level. There are 7 brightness levels and the factory default setting is level-2. See page-11 for more image brightness adjustment information SETTING UP DATE AND TIME: As your viewer has capability to take images and record video, time and date is automatically stamped onto each image and video recording. - Page 10 To turn the Infrared illuminator ON, press the Infrared illuminator button (4) momentarily – the IR icon on the bottom of the display will light in pink color and red LED light indicator (10) located next to the eyepiece will light on, indicating the IR illuminator is operating.
-
Page 11: Important: Please Read
IMPORTANT: PLEASE READ! Due to the inherited limitations of any digital image sensor, video refresh rate will be significantly slower during nighttime, resulting in visible image lag/delay when using your monocular in the dark. It is important to take the following steps to minimize this effect and ensure the best possible image and video recording quality: During nighttime and in any dark condition always activate built-in IR illuminator –... - Page 12 countdown (2-1) in the upper left corner and then image is taken and is automatically stored onto the SD card. All still images are taken at 4032x3024 resolution (12.2MP) To record a video, focus the unit onto the object and press CAMERA button (3) once.
- Page 13 software download is finished (also done automatically). Once download is done, you will be able to open and transfer all of your SD-card files onto your computer. Alternatively, you can remove the micro-SD card from the monocular and use it in the included USB flash drive adapter to transfer data to your computer.
- Page 14 “Format Partition” (alternatively right-click on the highlighted disc and choose the same function). A pop-up window will appear. You can label your partition (such as “Luna Optics Monocular” or any other name you desire (it’s optional) and then make sure to select “FAT32”...
- Page 15 Know and observe all Federal, State and Local laws, regulations and restrictions concerning possession and use of daylight and/or night vision riflescopes. Luna Optics Inc cannot be held liable for unlawful and/or unauthorized possession or use of this device. ACTIVATING RETICLE / CHOOSING RETICLE TYPE AND ITS COLOR Your device ships from the factory with default mode where aiming mark (reticle) is not visible.
- Page 16 riflescope for an extended period of time, put a small drop of Loctite 242 (Blue) on the screws’ threads prior to attaching the mount to the monocular. This will prevent the screws from becoming loose over time. Do not use Loctite Red or similar permanent solutions! ...
- Page 17 Loctite 242 (Blue) on the Retainer Screws threads, which will prevent them from becoming loose over time. Your scope is now ready to be sighted (zeroed). ZEROING THE SCOPE Prior to any adjustment you must secure your rifle in a vice or similar position where it cannot be easily moved.
- Page 18 is highlighted in red and then press the Menu Controller for 2 seconds. The profile will be saved and reticle will now appear in the new position on the screen (position where you moved it during adjustment). 6. At this time you can take follow up shots aiming at the bullseye of the target and make sure that bullet impact is within acceptable distance from the bullseye.
-
Page 19: Troubleshooting
.223REM round, but also 5.56NATO round, please avoid using 5.56NATO round while this device is mounted on the weapon. TROUBLESHOOTING: Unit does not turn on and the light indicator is off: a) please check if the batteries are inserted correctly b) please make sure the batteries are fresh The light indicator is working, but you cannot see the image: You may be turning the unit on in a dark area without utilizing the IR... -
Page 20: Technical Specifications
External Power ________________________________________ 5V/2A micro-USB Operating Time (battery power) __________________________________3-3.5hrs External outputs _________________________________ micro-HDMI / micro-USB Dimensions________________________170mm x 80mm x 63mm (6.7”x3.1”x2.5”) Weight___________________________________________________ 510g (17 Oz) Warranty_________________________________________________________1yr ---------------------------------------------------------------------------------------------------------- LUNA OPTICS, INC. 300 Hawthorn Dr., Fate, TX 75087 (USA) E-mail: info@lunaoptics.com Web: www.lunaoptics.com © 2021...
