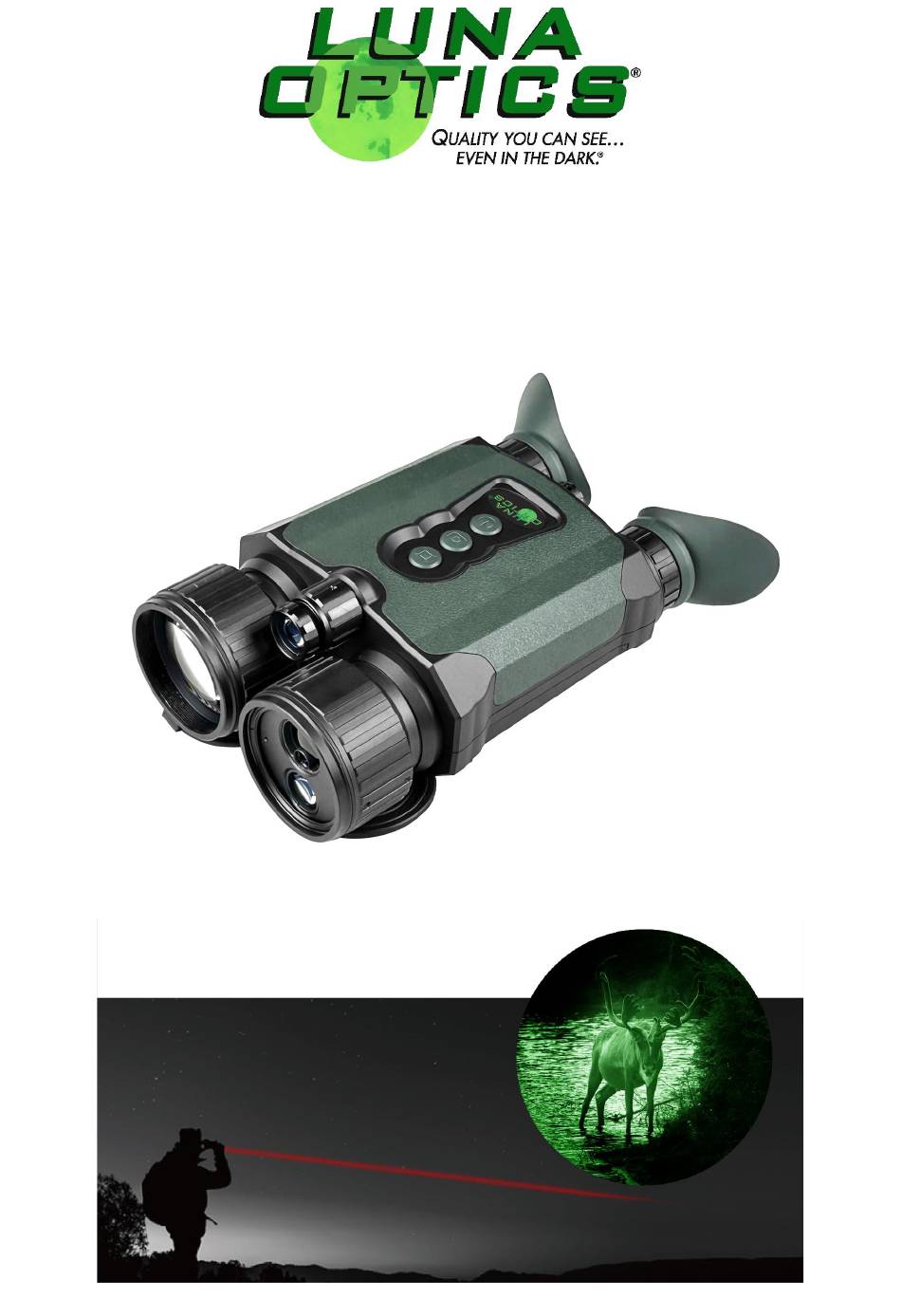

- Page 1 LN-QE-B50 QUANTUM ELITE™ 4K Day/Night Vision Binoculars 6-36x50 Instruction Manual...
- Page 2 QUANTUM ELITE™ Day/Night Vision Binoculars represent the highest level of digital electro-optics technology featuring an ultra-light sensitive large format CMOS sensor allowing it to be used in near dark conditions without the aid of a built-in IR illuminator. This device can be safely used in both daytime and nighttime.
- Page 3 Image Display Icons 1. Video recording indicator and timer 2. Taking photo while recording video 3. Image color selection 4. Ultra night vision mode 5. Display brightness adjustment 6. Video recording mode 7. Ultra night vision mode is on 8. Current image magnification 9.
-
Page 4: Power On/Off
1, To install the batteries, see the above vertical picture of the bottom of the binocular. Slightly press the thumb icon on the battery cover (17) with thumb, and at the same time, slide the battery cover according to the arrow direction. Now the battery container is open. Then place the woven tape at the bottom of the battery container, and install four 18650 batteries (battery length 67mm, positive pole has a protrusion) in the battery container. - Page 5 sliding the eyepieces either towards or away from each other. When icons and words are sharp and clear on screen and image appears as one single display, you have completed focusing the eyepieces well. Now rotate the distance focusing lens (2) until the objects you are viewing are sharp and clear. After this adjustment is complete, you would generally only need to focus the distance wheel (2) going forward.
- Page 6 Tips for Multi-Controller (M) (Multi-function Controller): 1, During observation, rotating controller (M) clockwise will increase image magnification and rotating it counterclockwise will reduce the image magnification. 2, Short press controller (M) to show quick sub-menu. There, when rotating (M) onto the function, the sub-menu of that menu will be shown automatically.
- Page 7 Press controller (M) to display color menu . Rotate controller (M) to select between the 5 color options: Daytime Color / Black & White / Green / White Phosphor / Amber, and the display color adjustment function will be changed. Ultra Night Vision Mode tips: 1.
- Page 8 Laser Rangefinder Mode (Manual / Auto) Press button (6) to measure distance once. The central icon box〔 〕should be aimed at the object (at least 10m/11yds away). Press the button (6) momentarily again and the distance data will be shown on the screen center. (Single measurement) Press and hold button (6) for 2 seconds to activate auto rangefinder mode.
- Page 9 Wi-Fi function 1) On mobile phone, download and install the APP. NOTE: APP information will be provided on a separate paper. Then turn off the Wi-Fi on your mobile phone. 2) On the binoculars, press and hold the controller (M) for 2 seconds to enter the main menu, select Wi-Fi function and activate it.
-
Page 10: Picture-In-Picture
display will show the calibration interface. Follow the calibration instructions. After calibration, the electronic compass will show product horizontal angle, elevation angle / depression angle, and 360° azimuth angle. When the device detects a weak signal during use, the calibration interface will appear on the display again. -
Page 11: Factory Reset
How to view photos and videos stored on the Micro-SD card Press and hold the controller (M) for 2 seconds to enter the main menu, then scroll down and select Playback function. Select photo or video to view. Press controller (M) to play a video, press the controller (M) again to stop playing. -
Page 12: Formatting The Microsd Card
Formatting the Micro-SD card Press and hold the controller (M) for 2 seconds to enter the main menu. Scroll down to Settings , then select Format Card function. Press controller (M), and a warning window will appear. Select OK to format the card. IMPORTANT: All files inside the Micro-SD card will be deleted after formatting. - Page 13 Setting and changing the Date/Time Press and hold the controller (M) for 2 seconds to enter the main menu. Scroll down to Settings, then select Date/Time function. Rotate the controller (M) to adjust data and press the controller (M) to switch among the fields. After everything is confirmed, press and hold the controller (M) for 2 seconds to save the date and time and exit the menu screen.
- Page 14 Changing the Language Press and hold the controller (M) for 2 seconds to enter the main menu. Scroll down to Settings, then select Language function. There are up to 10 language options on 2 pages. Connecting to an external Display / TV / Monitor Through the HDMI output port (16) on the device, you can connect the binoculars to the external display via included HDMI cable.
-
Page 15: Technical Specifications
“Format Partition” (alternatively right-click on the highlighted disc and choose the same function). A pop-up window will appear. You can label your partition (such as “Luna Optics Binocular” or any other name you desire (it’s optional) and then make sure to select “FAT32” as the File System. Then click “OK”. -
Page 16: Included In The Package
8. 32GB Micro-SD card (installed in the card slot) 9. Cleaning cloth NOTE: 18650 Batteries might not be included with this product due to transportation restrictions. Luna Optics, Inc. 300 Hawthorn Dr. Fate, TX 75087 – USA Tel: +1-972-722-1100 / E-mail: info@lunaoptics.com...
