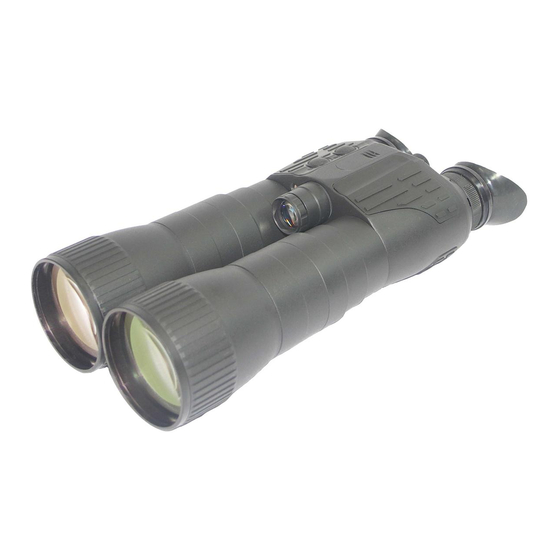

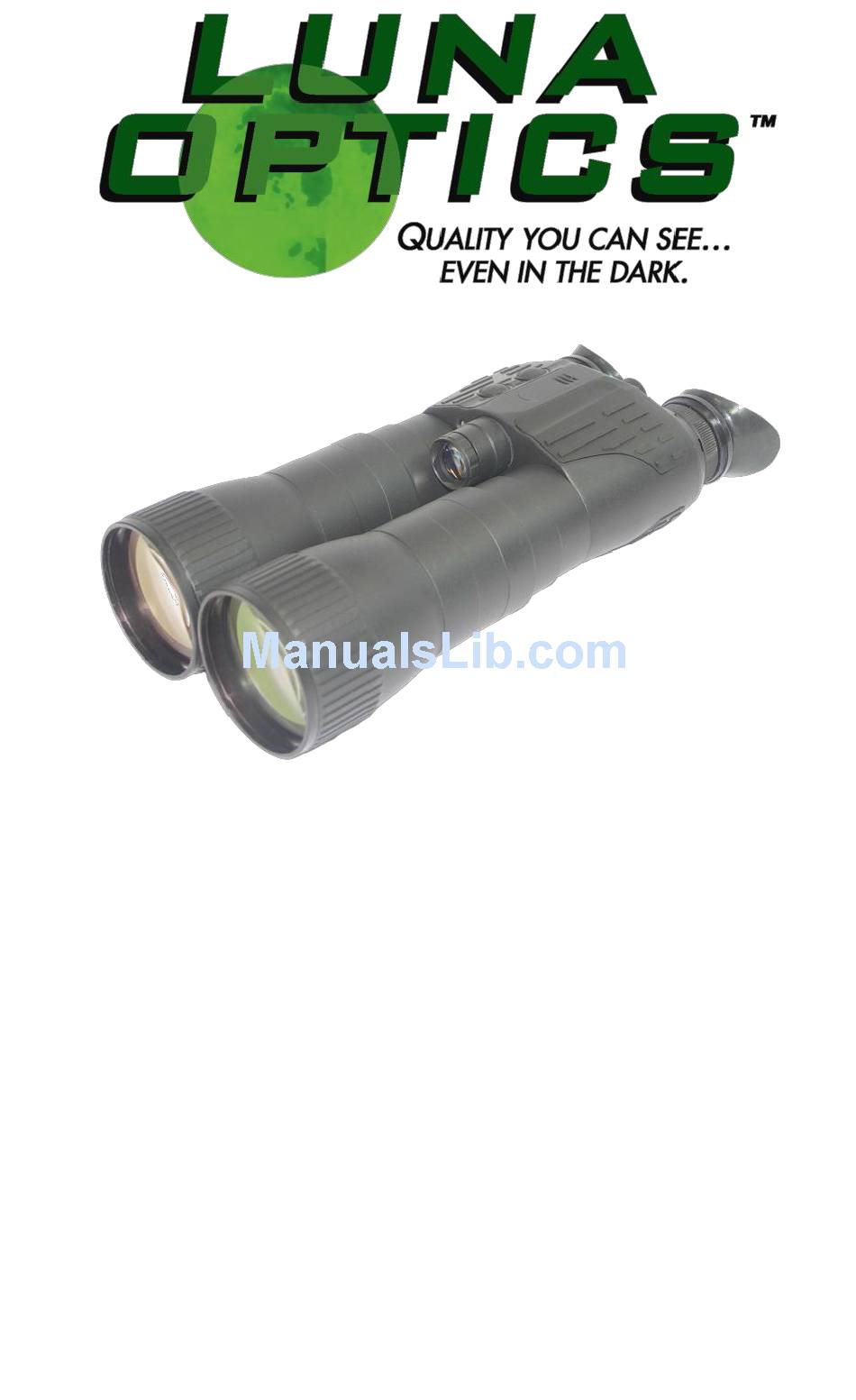

- Page 1 MODEL: LN-PB7 PREMIUM NIGHT VISION BINOCULARS INSTRUCTION MANUAL IMPORTANT: Please read this manual in its entirety prior to using this device!
- Page 2 INTRODUCTION Thank you for purchasing a quality LUNA OPTICS product. With proper care and maintenance your device will provide many hours of operation and outstanding reliability. Please read this manual – it is your key to enjoying this exciting and hi-tech product! NIGHT VISION Without getting too technical and confusing, let’s try to...
- Page 3 – after all, you are using this device in the dark environment, where normally your vision would be very limited…oh, and another important point – all night vision devices have green monochrome image – why green? Because human eye can distinct most details of the viewing image when presented in green color…other colors do not show you everything…...
- Page 4 LN-PB7, PREMIUM NIGHT VISION BINOCULAR Glossary: 1 – Body 2 – Infrared Illuminator 3 – Objective Lens 4 – Infrared illuminator button 5 – Power button 6 – Battery compartment 7 – Oculars 8 – Sliding Bracket for Extended Range...
- Page 5 INSTALLING THE BATTERIES: Your night vision unit operates on two 1.5V N-size batteries, also known as LR1 type. To install the batteries, remove the battery compartment cover (6), located in the back of the unit by turning it counter-clockwise. Install the batteries according to the polarity diagram indicated next to the compartment.
- Page 6 (LN-EIR1 or LN-ELIR1) by asking your dealer, or e-mailing us at: info@lunaoptics.com (please indicate the model number of the binocular (LN-PB7)). The extended range IR illuminator is installed on top of the unit by removing the Sliding Bracket (8). TROUBLESHOOTING:...
- Page 7 a) you may be turning the unit on in a dark area with the lens covers still on the unit b) You may need to turn on the infrared light c) please make sure the batteries are fresh – it takes a lot less power to turn on the light indicator, than the entire unit 3.
- Page 8 (1) year from the date of purchase. Please refer to the enclosed warranty card for complete warranty details. ------------------------------------------------------------- LUNA OPTICS, INC. 54 Columbus Ave., Staten Island, NY 10304 (USA) Tel: +1-718-556-5862; Fax: +1-718-556-5869; E-mail:info@lunaoptics.com Web: www.lunaoptics.com...
