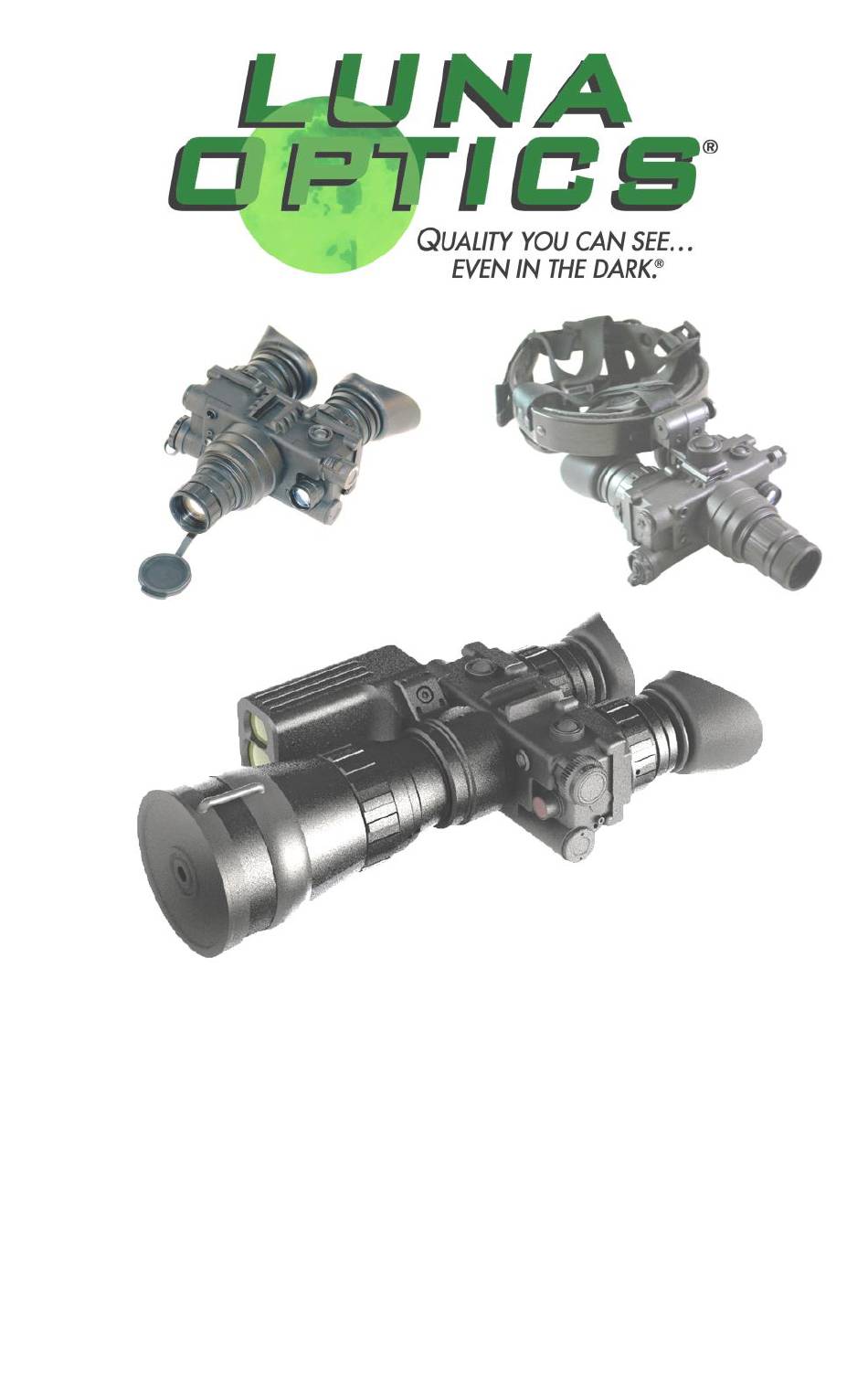

- Page 1 LN-EBG1/LN-EBG1-PRO/ LN-EB5-LRF INSTRUCTION MANUAL IMPORTANT: Please read this manual in its entirety prior to using this device!
-
Page 2: Night Vision
INTRODUCTION Thank you for purchasing a quality LUNA OPTICS product. ® With proper care and maintenance your device will provide many hours of operation and outstanding reliability. Please read this manual – it is your key to enjoying this exciting and hi-tech product! NIGHT VISION Without getting too technical and confusing, let’s try to... -
Page 3: Operation
Now that we’ve covered some of the basics of the technology behind the night vision, let’s learn how to operate your new device: Please look below and at the next page to identify all the parts of the unit. Light Sensor LN-EB5-LRF model... - Page 4 LN-EBG1-PRO ELITE NIGHT VISION BI-OCULAR GOGGLES Glossary: 1 – Body 2 – Release mechanism (button and wheel) 3 – Flip-up button 4 – Head-mask 5 – Eyecup 6 – Ocular 7 – Momentary IR Switch 8 – Menu Switch (PRO model only!) 9 –...
-
Page 5: Installing The Batteries
INSTALLING THE BATTERIES: Your night vision unit operates on commonly available 2 AA- type batteries. To install the batteries, unscrew the battery compartment cover (13), and install the batteries inserting the positive (+) end first. Once the batteries are inside, replace the cover. USING THE UNIT AS A HANDS-FREE GOGGLES SYSTEM: IMPORTANT: FOR MODEL LN-EBG1-PRO PLEASE READ SECTION “MENU SWITCH”... -
Page 6: Turning The Unit On And Off
TURNING THE UNIT ON AND OFF: Your night vision unit has a special power and IR switch (10), which allows you to easily switch between ON and OFF modes, while protecting you from accidentally switching on the IR illuminator. To turn the unit ON, first remove the objective lens cover (ONLY IN THE DARK!) and rotate the switch by one dial to ON position. - Page 7 USING INFRARED ILLUMINATOR: Your night vision monocular is equipped with two separate built- in Infrared illuminator lights. The Infrared light operates in a spectrum, which is normally invisible to a naked human eye, however with the help of the tube, located inside the unit, you will see a beam of light when looking though the ocular lens.
- Page 8 Please note that it is possible to momentary turn the 805nm illuminator on by pressing the momentary IR button (7). This button will only turn on the distant illuminator (11), not the close-up illuminator (14) To turn the second (distant) IR illuminator (11), simply rotate the switch one more dial to the IR2.
- Page 9 Please note that even though this is an effective protection source, we at Luna Optics still strongly recommend avoiding any such exposures to bright light, especially prolonged ones in order to preserve the full life of the tube.
- Page 10 MOISTURE CONTROL CARTRIDGE: Your LN-EBG1 (LN-EBG1-PRO, LN-EB5-LRF) is equipped with a special cartridge, which allows you to remove any moisture from the unit in the unlikely event of uncontrolled depressurization.
-
Page 11: Troubleshooting
aiming at the object press the same button again momentarily to measure the distance. The distance will be displayed in the field of view within 1-3 seconds. The maximum distance is 700m (763yds). Please note the effective distance depends on a variety of situations, such as object size, object color and object’s reflective features (for example a road sign is highly reflective and can be observed even further than 700m, while... -
Page 12: Available Accessories
Temperature Range: AA Batteries_____________________________-10C / +50C External Power Supply (PRO model only!)_-40C / +50C Dimensions (1x) ____________158mm x 139mm x 64mm Weight (1x) ____________________________________ 550g LUNA OPTICS, INC. 300 Hawthorn Dr., Fate, TX 75087 (USA) Tel: +1-972-722-1100; Fax: +1-844-273-3079; E-mail: info@lunaoptics.com Web: www.lunaoptics.com...
