PD27/28/29/30 INSTALLATION INSTRUCTIONS
CVR DEVICE

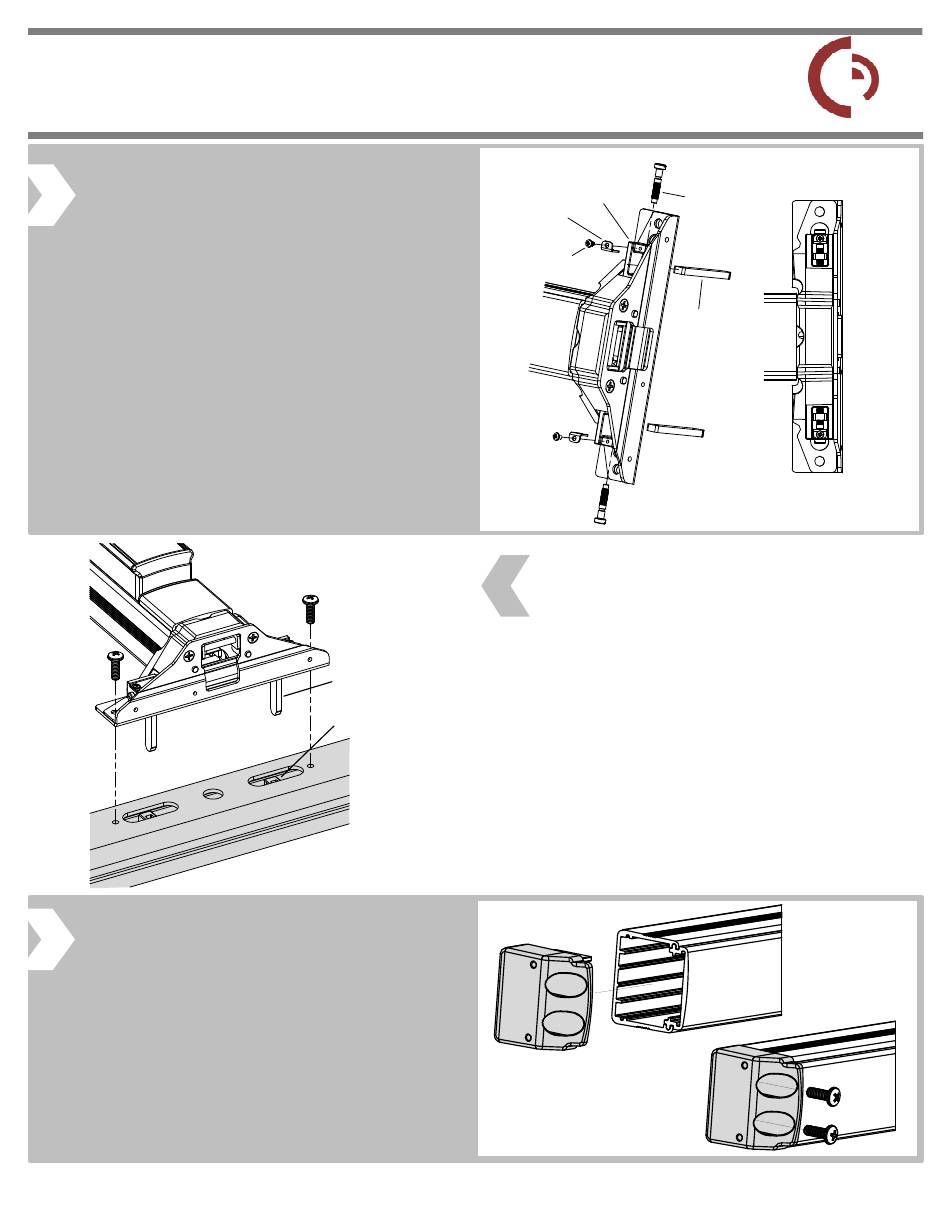

6. INSTALL CVR LIFT BARS
 Adjusting screw and retainer factory
installed without lift bars.
 Remove adjusting screw retainers and
adjusting screws.
 Insert lift bar into carriage from back side
of device.
 Thread adjusting screw into lift bar
through carriage until the lift bar is
centered on threads.
 Insert adjusting screw retainer into the
notched area of the adjusting screw.
 Install/tighten #4-40 locking screw.
8. INSTALL END CAP
 Slide end cap into rail. Ensure rail is
square to door. Mark centers of slots.
 Remove end cap, drill holes according to
correct device/trim template.
 Reinstall end cap and fasten with screws.
LIFT BAR
CVR
YOKE
3
CARRIAGE
ADJUSTING
SCREW
ADJUSTING
SCREW
RETAINER
LOCKING
SCREW
LIFT BAR
7. INSTALL DEVICE
 Install device and trim with 1/4-20 screws
from pack #639043.
 Verify lift bars engage into CVR yokes for
both top and bottom latches.
