PD27/28/29/30 INSTALLATION INSTRUCTIONS
CVR DEVICE

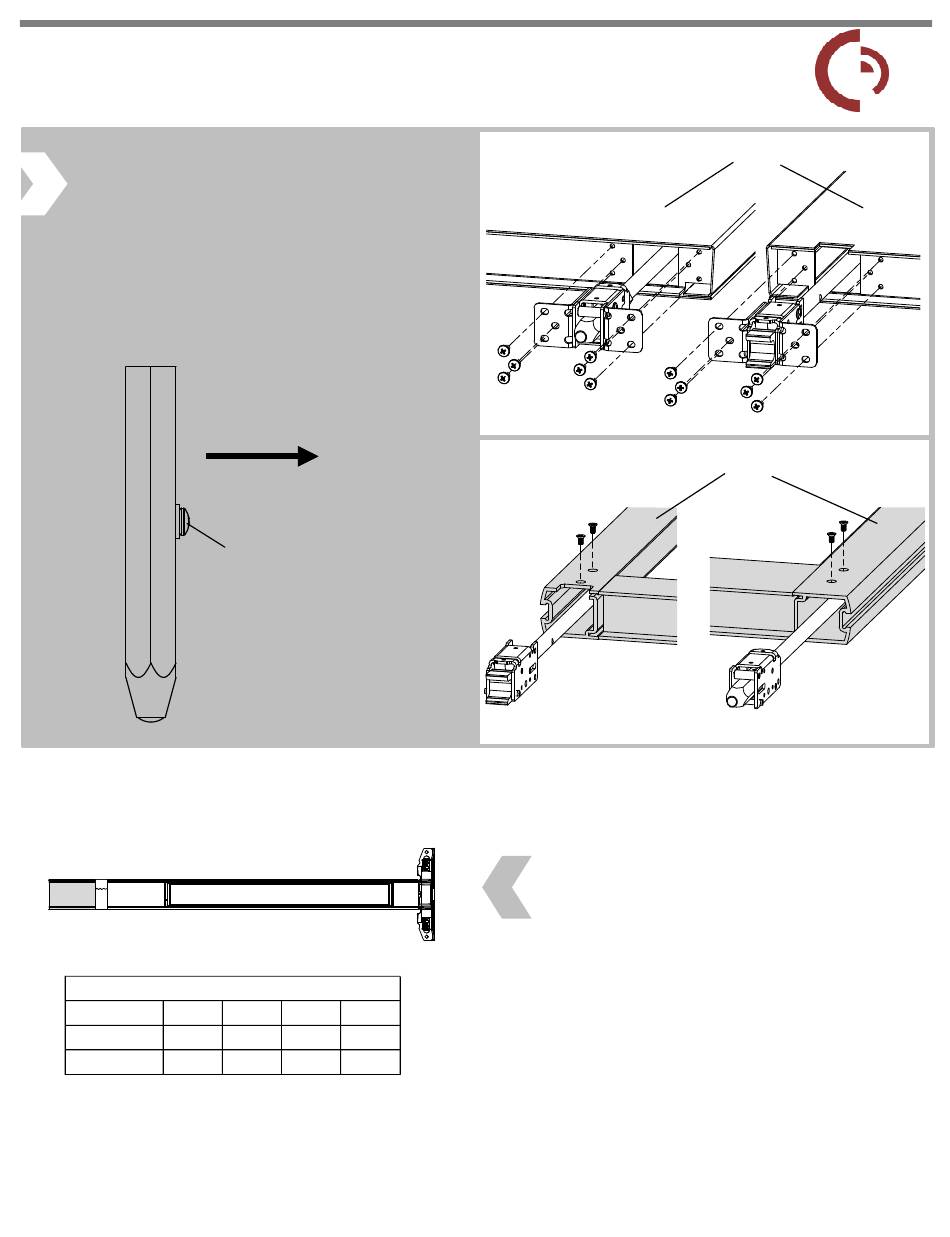

4. INSTALL LATCHES IN DOOR
 Slide latch/rod assemblies into the door.
Slide bottom latch into door installed in
housing.
 Fasten with #8-32 screws.
**IMPORTANT NOTE**
Maximum cut:
Panic Fire Alarm MLR
36" Device 6"
48" Device 12"
TOWARD
PULL SIDE
OF DOOR
Screw & Washer
8" 2" 3"
14" 8" 9"
STEEL/WOOD DOOR
ALUMINUM DOOR
5. SIZE DEVICE
 Standard lengths are for 36" or 48" door.
Device must be cut for other lengths.
 Mark length with tape – length equals
device size minus desired door size (for
30" door = cut 6" off 36" device) ensuring
a square cut.
2
INSIDE OF
DOOR
INSIDE OF
DOOR
20685_A (639409 Rev2)
