Functional Extensions
Operating Guide
X101
1
2
3
4
5
6
SL2.5
10 mm
(0.4 in)

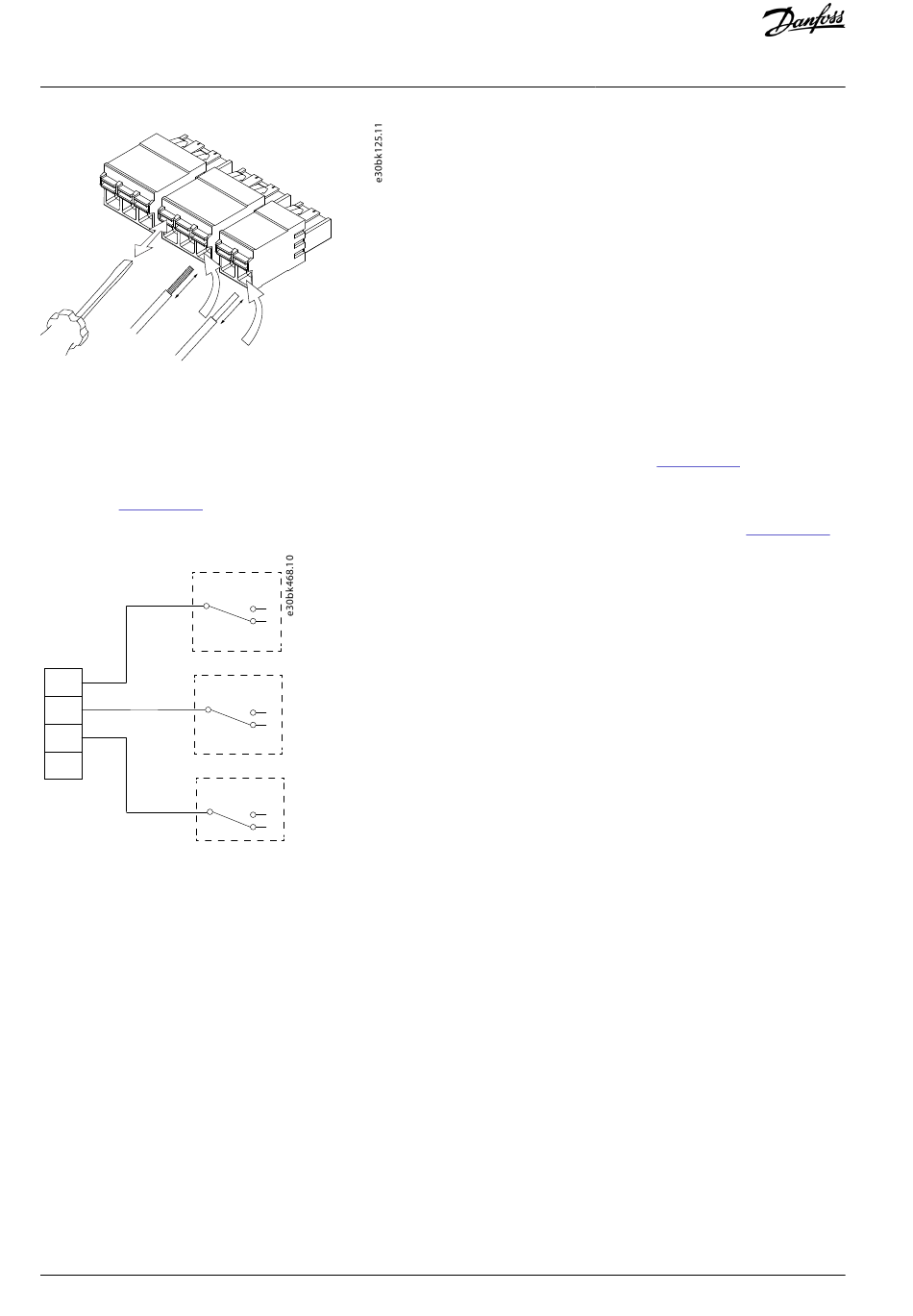

Illustration 17: Inserting Wires into the Relay Option OC7R0 Connectors
6.6.1 Wiring Diagrams for Different Operating Altitudes
• Operation up to 2000 m (6560 ft) altitude: Each relay can operate at different phase voltages. See
• Operation above 2000 m (6560 ft) altitude: Operation with voltage above 50 V AC requires operation on the same phase volt-
age. See Illustration 19.
• Operation with mixed voltage (24 V) and high voltage is possible. High voltage must be on the same phase. See
Terminal X101
COM
1
Terminal X102
L1
COM
4
L2
L3
PE
Terminal X103
COM
7
Illustration 18: Operation up to 2000 m (6560 ft) Altitude
