Functional Extensions
Operating Guide
6
Track D+ (Data/supp)
Track D– (Data/supp) 4
Plug detect + 13
Plug detect – 11

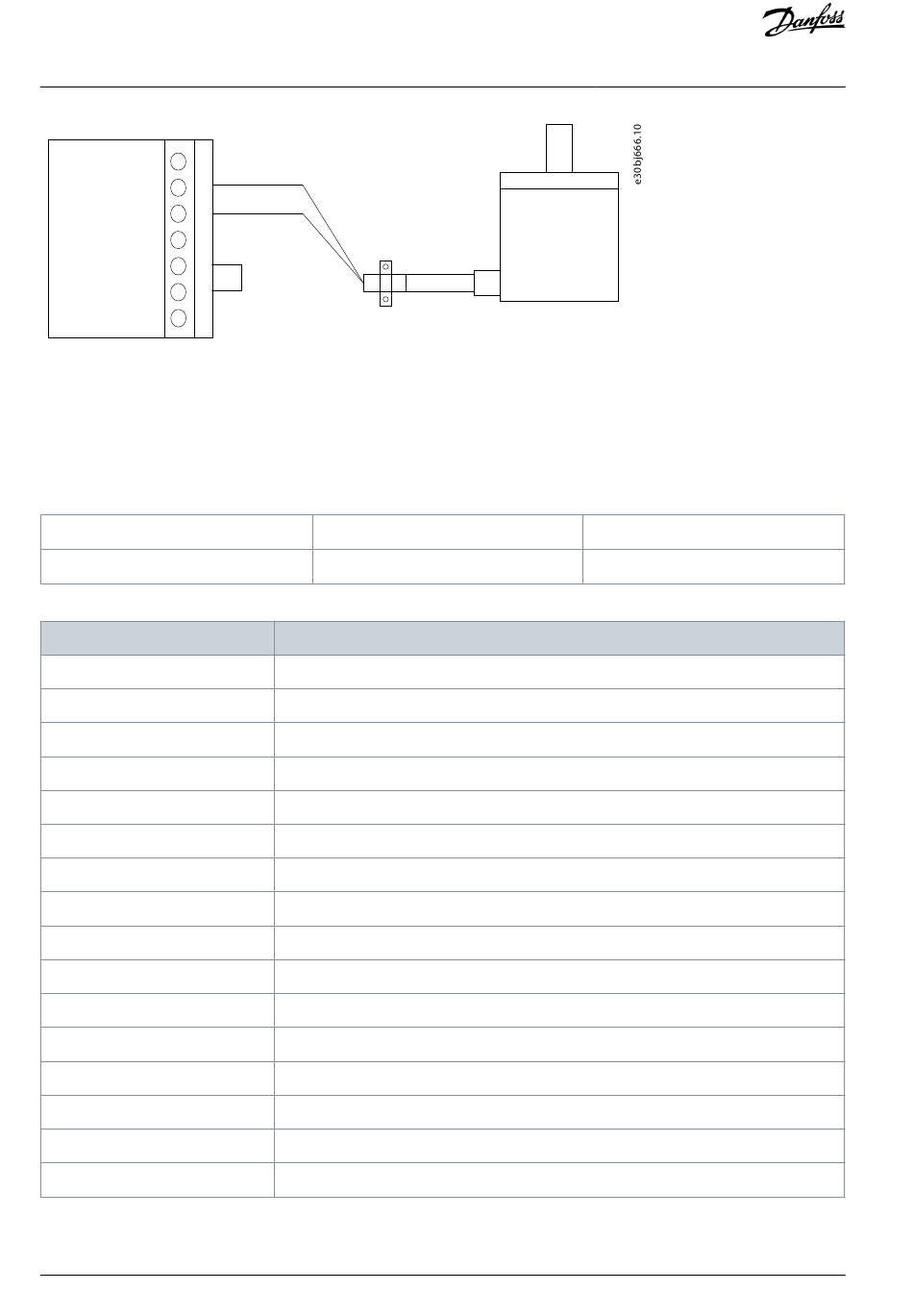

Illustration 14: Wiring Configuration for HIPERFACE DSL
5.7 Parameter Descriptions for Encoder/Resolver
5.7.1 Configuration (Menu Index 9.4)
P 9.4.1 Interface Configuration
Description: Select the required configuration of the interface consisting of 4 tracks A, B, Z, and D offering various combinations of 1
or 2 devices.
Default Value: 0 [Disabled]
Unit: –
The following are the selections for the parameter:
Selection number
0
1
3
5
7
8
9
10
17
19
22
23
26
27
29
30
P 9.4.4 Encoder Supply Voltage
Description: Set the supply voltage level according to the specification of the connected encoder.
22 | Danfoss A/S © 2022.12
Encoder
®
Parameter Type: Selection
Data Type: UINT
Selection name
Disabled
2 track incremental A,B
3 track incremental A,B,Z
2 track incremental A,B + 2 track incremental Z,D
Resolver A,B
Resolver A,B + mirror out Z,D
Resolver A,B + 2 track incremental Z,D
SinCos A,B
SSI Z,D
SSI Z,D + 2 track incremental A,B
EnDat Z,D
EnDat Z,D + 2 track incremental A,B
Hiperface DSL D
Hiperface DSL D + 2 track incremental A,B
BiSS Z,D
BiSS Z,D + 2 track incremental A,B
Encoder/Resolver Installation and
Configuration
Parameter Number: 4000
Access Type: Read/Write
