Functional Extensions
Operating Guide
Table 14: Parameters for BiSS Encoder
Parameter
9.4.1 Interface configuration
9.4.4 Encoder Supply Voltage
9.6.1 Singleturn Resolution
9.6.2 Multiturn Resolution
9.6.6 BiSS/SSI Clock Rate
Encoder supply + 17
Encoder supply GND
15
Track Z+ (Clock +) 10
8
Track Z– (Clock –)
Track D+ (Data +) 6
4
Track D– (Data –)
Plug detect + 13
Plug detect – 11

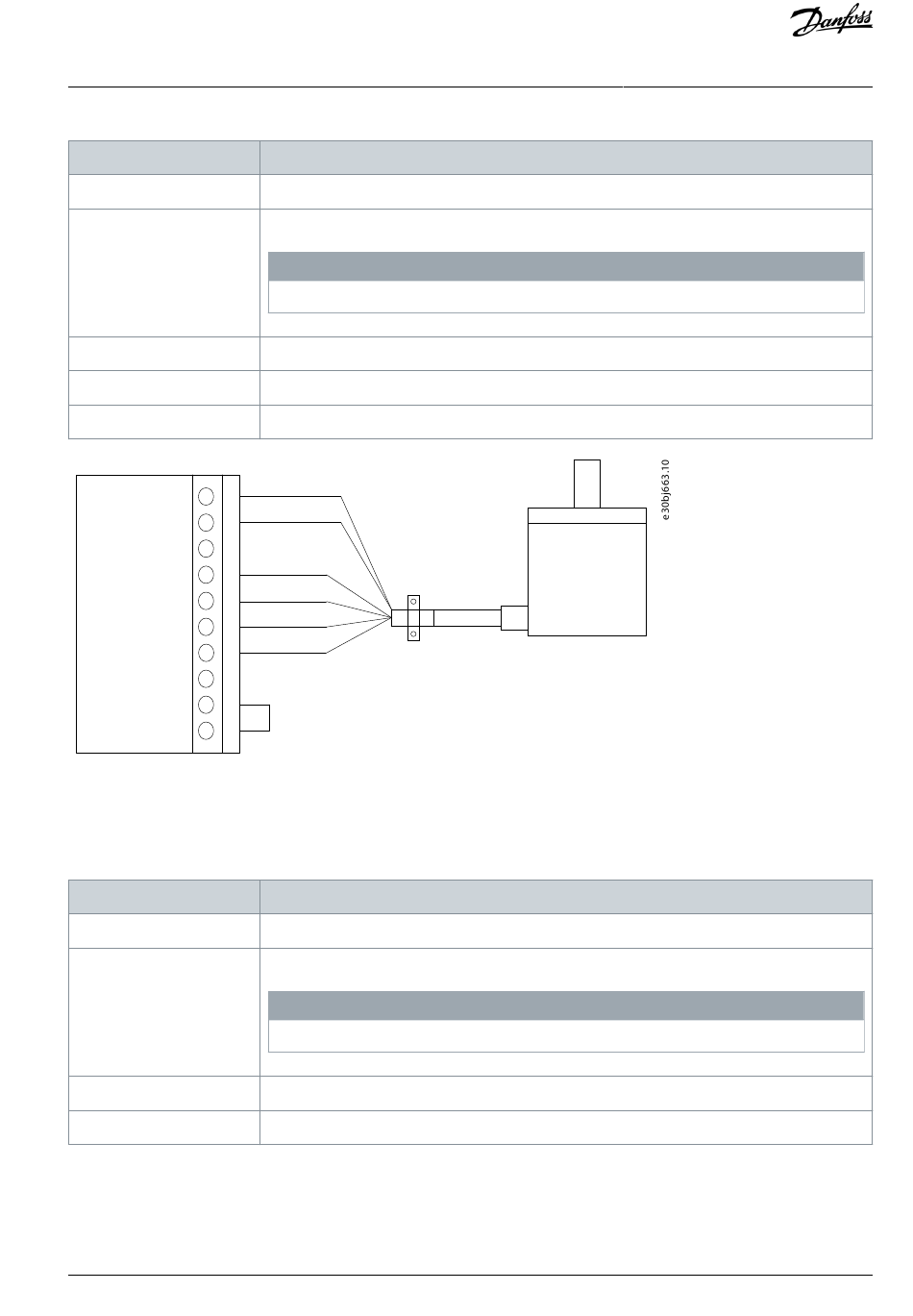

Illustration 13: Wiring Configuration for 2-Track BiSS Encoder
5.6.9 HIPERFACE DSL
Absolute position is read from the encoder and used to set the actual position after power-up.
Table 15: Parameters for HIPERFACE DSL
Parameter
9.4.1 Interface configuration
9.4.4 Encoder Supply Voltage
9.6.1 Singleturn Resolution
9.6.2 Multiturn Resolution
Danfoss A/S © 2022.12
Setting
Select [29] BiSS Z,D.
Set the appropriate supply voltage for the connected encoder.
Voltage can be up to 24 V. Setting the voltage too high can damage the connected encoder.
Set the number of bits used for 1 revolution.
Set the number of bits used for revolution count.
Set the rate for the clock signal according to the encoder specifications.
®
Setting
Select [26] Hiperface DSL D.
Set the appropriate supply voltage for the connected encoder.
Voltage can be up to 24 V. Setting the voltage too high can damage the connected encoder.
Set the number of bits used for 1 revolution.
Set the number of bits used for revolution count.
Encoder/Resolver Installation and
N O T I C E
N O T I C E
AQ390830267692en-000501 / 136R0273 | 21
Configuration
