Intergraph StudioZ System Manual page 33

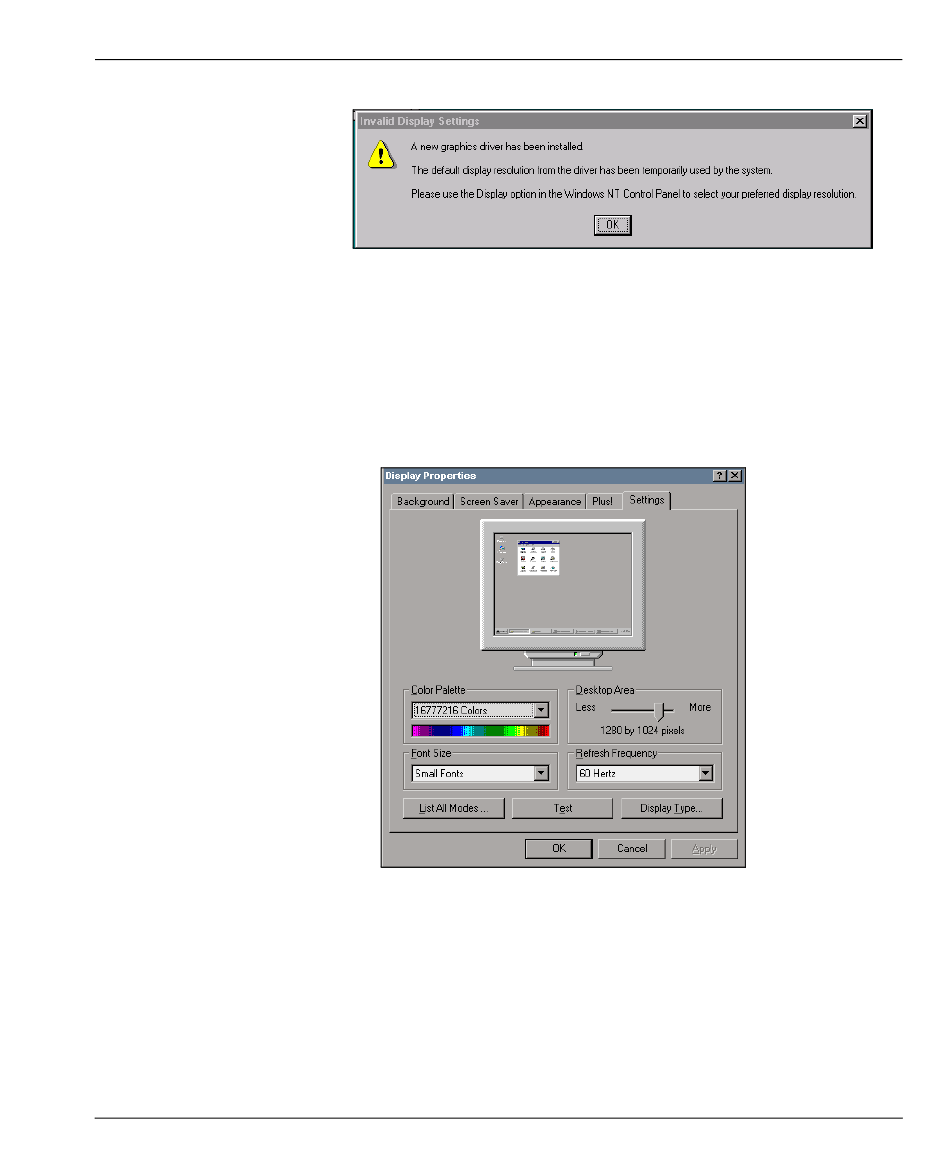

13. Click OK, and adjust the settings in the Display Properties dialog box as
described in the following task.
To adjust the display settings
1. After you complete the Colorgraphic Evolution 2 driver installation, the
system restarts and the Display Properties dialog box is displayed.
2. In the Display Properties dialog box, select the Settings tab.
The Settings page is displayed.
3. Adjust the following settings:
• From the Color Palette list box, select 16777216 Colors.
• Adjust the Desktop Area slider to 1280 by 1024 pixels.
• From the Font Size list box, select Small Fonts.
• From the Refresh Frequency list box, select 60 Hertz.
4. Click the Test button.
You are prompted to confirm, and the test is started.
