System Guide
Connecting the
Computer Monitors
10
Your workstation comes with two identical Intergraph monitors for
displaying the SOFTIMAGE|DS editing environment. You should place the
monitors side by side in your work area.
Each monitor comes with the following cables:
• VGA cable
• Power cable

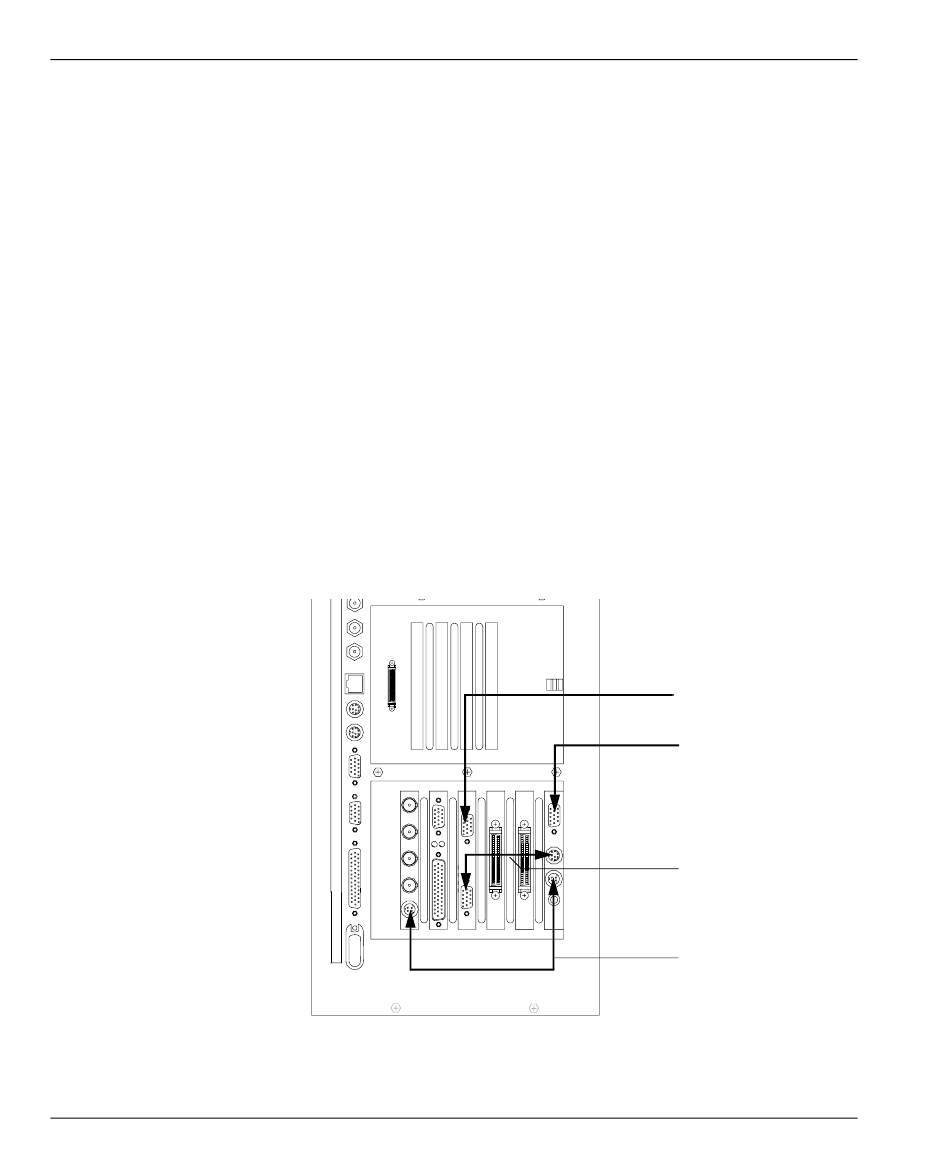

To connect the monitors
1. If you have not already done so, turn off the power switch to the monitors
and the base unit and connect them to a power source.
2. Connect the monitor which is on the right side to the Video in a Window
card using the VGA cable supplied.
3. Connect the monitor which is on the left side to the top port on the
graphic card using the VGA cable supplied.
4. Connect one end of the Flashkey cable to the second port from the top of
the Video in a Window card and connect the other end to the lower port
of the graphic card.
5. Connect one end of the S-Video cable to the Y/C port of the Intergraph
StudioZ card and connect the other end to port that is second from the
bottom on the Video in a Window card.
REF
SDI
OUT
SDI
IN
COMP
OUT
/
Y C
System Guide
Download from Www.Somanuals.com. All Manuals Search And Download.
VGA Cable
To Left Monitor
VGA Cable
To Right Monitor
Flashkey Cable
S-Video Cable
