Intergraph StudioZ System Manual page 24

System Guide
System Hardware Overview
Intergraph StudioZ for
SOFTIMAGE|DS
16
Your Intergraph StudioZ workstation provides a comprehensive set of
optimized hardware features that allow you to achieve high-quality results
with the SOFTIMAGE|DS software. This section provides an overview of the
hardware. For details, see the vendor documentation accompanying each
device. See Connecting the Hardware on page 7 for details on cable
connections.
Striped Disk Set
System Disk - partitioned
R
Audio out
Clock
L
Sync
VTR Control
COM 1
COM 2
Adaptec 7880
SCSI Controller
(on riser card)

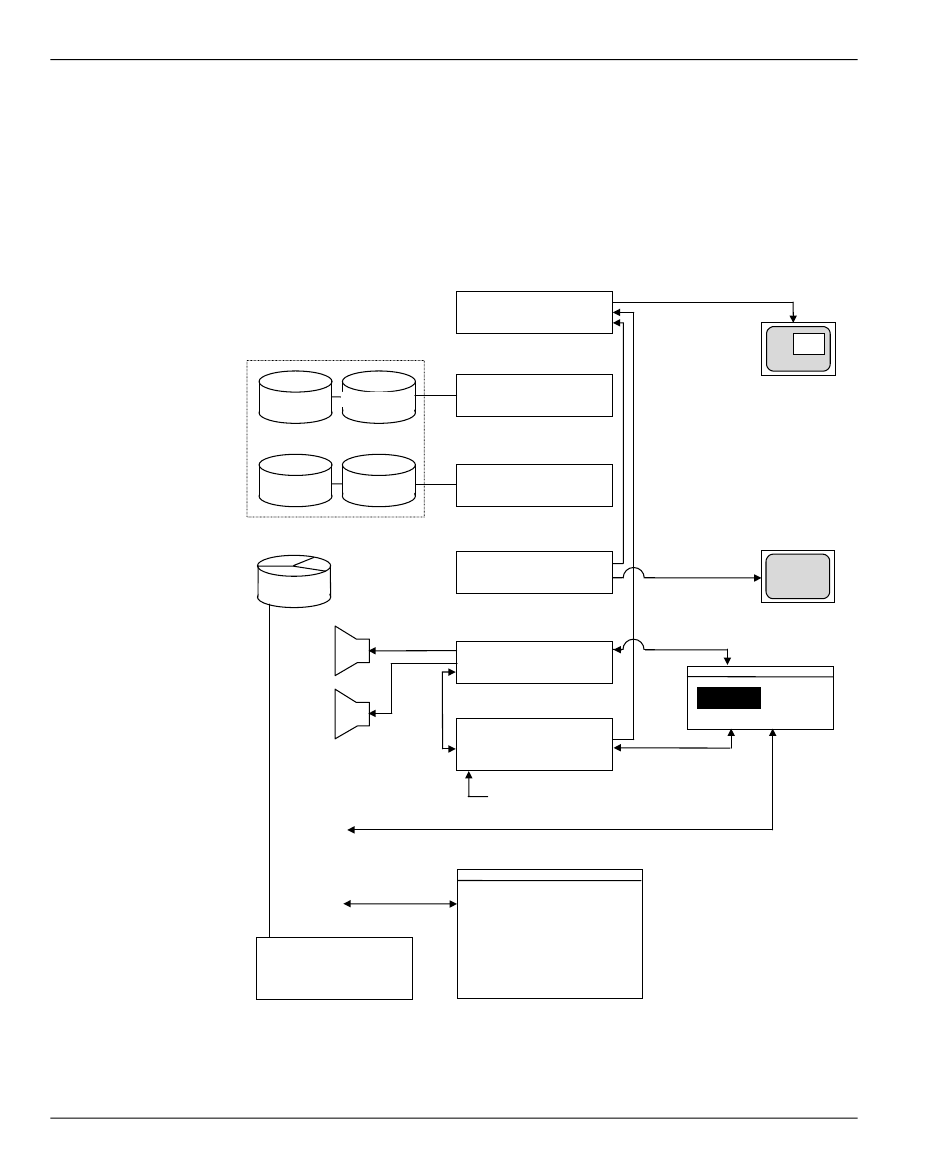

Hardware components of the Intergraph StudioZ and associated peripheral devices
System Guide
Download from Www.Somanuals.com. All Manuals Search And Download.
FlashKey Card
Adaptec 2940
SCSI Controller Card
Adaptec 2940
SCSI Controller Card
Video out
Colorgraphic
Evolution 2 Video Card
Antex StudioCard
Video out
Intergraph StudioZ SDI
Card
Genlock (Ref In)
WACOM Tablet
Video out
Right Monitor
Video out
Left Monitor
Audio in/out
VTR
Video in/out
