Audio Connections
You can connect both digital and analog audio devices to your system's Antex
StudioCard AV PRO. When you capture audio, SOFTIMAGE|DS enables the
input that you specify.
To connect audio cables

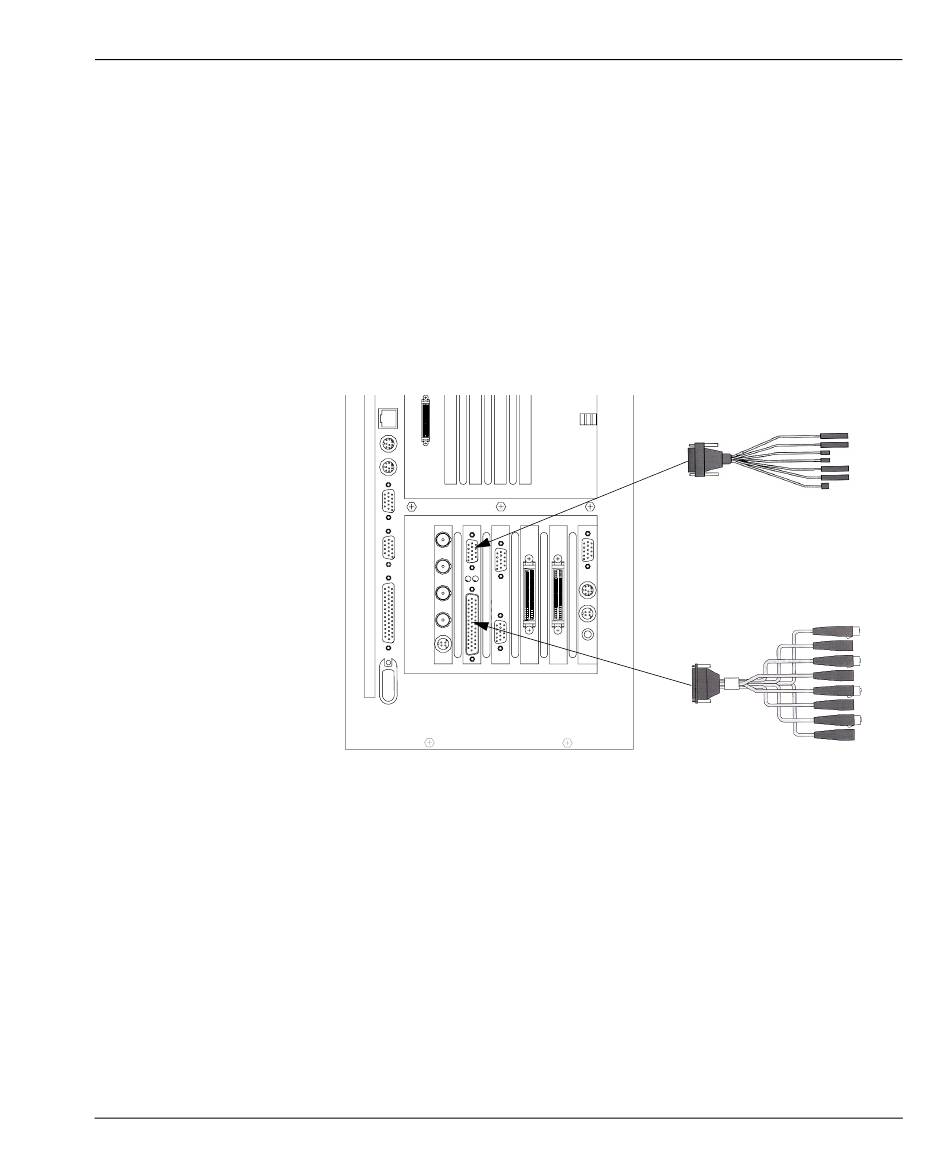

1. Attach the Antex digital I/O cable to the upper (DB-15) port on the audio
card and tighten the locking screws.
2. Attach the Antex analog I/O cable to the lower (DB-25) port on the audio
card and tighten the locking screws.
3. Referring to the white tags on the Antex cables, connect your external
audio equipment to the appropriate analog and digital connectors.
Download from Www.Somanuals.com. All Manuals Search And Download.
Analog cable with 8 XLR connectors
System Guide
Connecting the Hardware
Digital breakout cable
