Connecting the
Keyboard, Mouse and
WACOM tablet
Download from Www.Somanuals.com. All Manuals Search And Download.
additional peripheral devices, you must have access to four AC outlets with
two 15 Amp circuits (or 7.5 Amp in Europe).
To connect the workstation to a power source
1. For every device, make sure that the voltage of the power source matches
the voltage requirements of the device.
2. Make sure that power to all the devices is turned off.
3. Connect the base unit, the monitor(s), the WACOM tablet, and any other
peripheral devices to a power source.
The keyboard and the mouse come with attached cables for connecting them
to the back panel. The WACOM tablet comes with a power transformer and a
DB-9 cable.
To connect the keyboard and the mouse
1. Connect the keyboard to the top mini-DIN jack in the deskside base unit.
If you have a rackmount base-unit, connect the keyboard to the left-hand
mini-DIN jack.
2. Connect the Microsoft IntelliMouse to the bottom mini-DIN jack in the
deskside base unit. If you have a rackmount base-unit, connect the mouse
to the right-hand mini-DIN jack.
To connect the WACOM tablet
1. Connect the AC power transformer to the tablet DB-9 cable.
2. Connect one end of the DB-9 cable to the COM 2 port on the back panel
and connect the other end to the tablet.
3. Before plugging in the AC power transformer, check that the input voltage
on the power adapter matches the voltage of your power outlet.
4. Connect the power adapter to the AC outlet.
For more information on connecting the WACOM tablet, refer to the
accompanying vendor documentation.

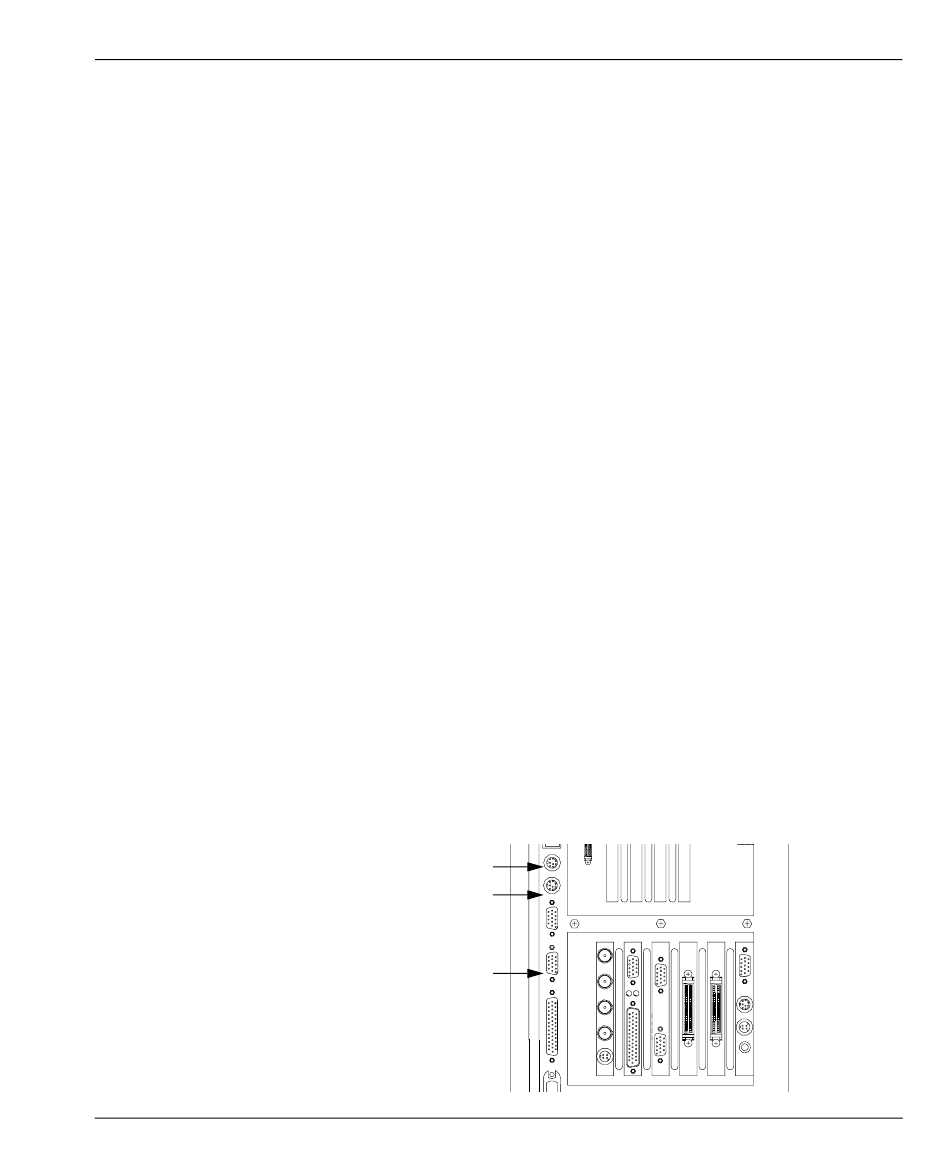

Keyboard
Mouse
WACOM tablet
System Guide
