To connect a system with analog devices
1. Connect the SDI In on the Intergraph StudioZ card to the Video Out on
the analog VCR via a A/D converter.
2. Connect SDI Out on the Intergraph StudioZ card to the Video In on the
analog VCR via a D/A converter.
3. Connect Comp Out port on the Intergraph StudioZ card to the Video in
on the analog video monitor.
4. Set the VCR transport switch to Remote.
5. Connect the COM 1 port on your base unit to the REMOTE IN port on
the VCR using the pipeline cable supplied.You should not substitute the
pipeline cable with any other cable but, you can extend the RS422 end
with other cables if required.
6. Connect the Ref In on the Intergraph StudioZ card to the House Sync.
House Sync
ADC
Analog VCR
System Guide
Download from Www.Somanuals.com. All Manuals Search And Download.
Ref
SDI
OUT
SDI
COMP
OUT
/
Y C
DAC
Oscilloscope

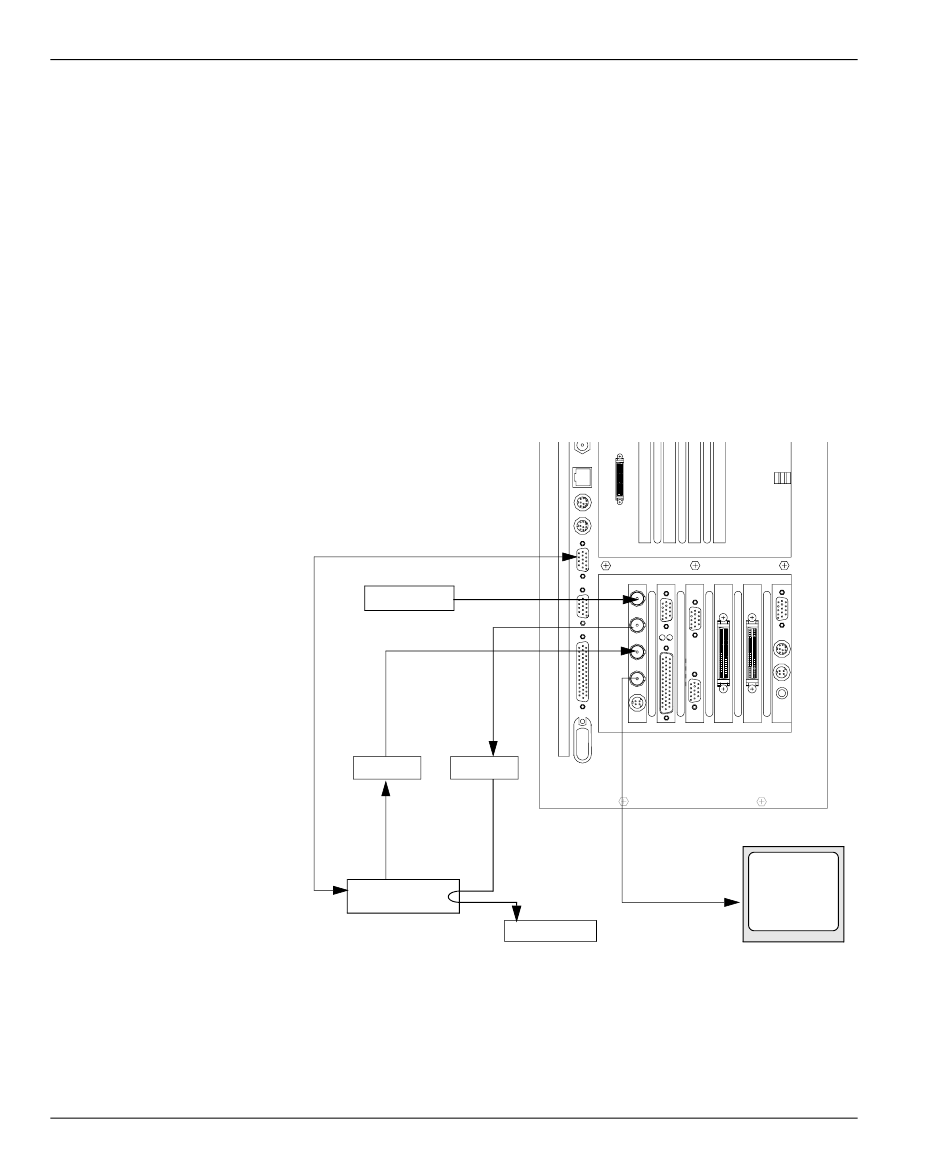

Video connections for analog peripheral devices
