Connecting the Hardware
Back Panel Overview
Download from Www.Somanuals.com. All Manuals Search And Download.
This section provides step-by-step instructions for connecting a the base unit
to the peripheral devices in a standard configuration. It covers both analog
and digital setups. A complete cabling diagram is also included in the
Appendix on page 45.
The cards are installed and configured for the SOFTIMAGE|DS environment.
You should not remove or modify these cards.

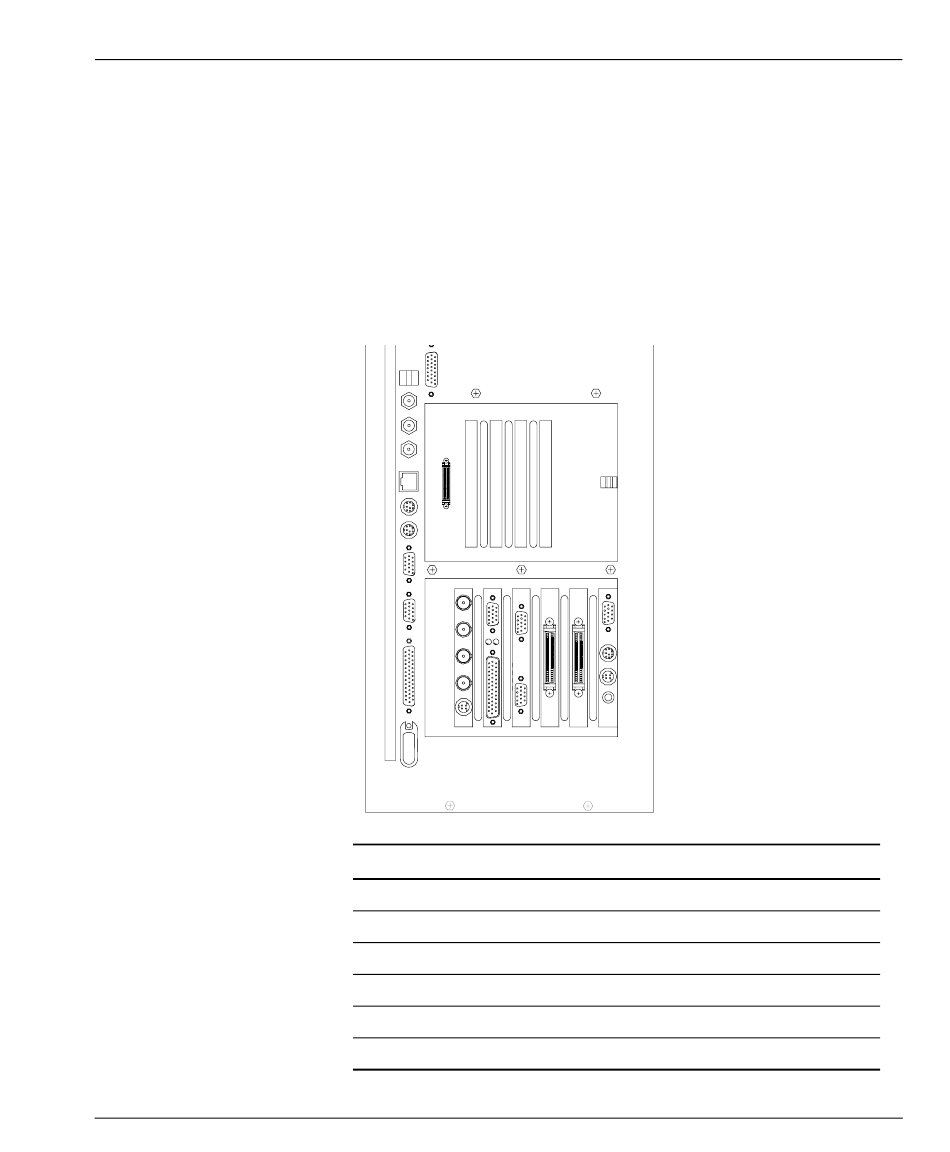

On the back panel of your base unit, six cards are installed and configured for
the SOFTIMAGE|DS environment.
REF
IN
SDI
OUT
SDI
IN
COMP
OUT
/
Y C
6 5 4 3
Slot Function
1 Video in a Window
2 Array Controller
3 Array Controller
4 Graphic Output
5 Audio I/O
6 SDI Video I/O
System Guide
Connecting the Hardware
2 1
Card
Integral Flashkey
Adaptec 1
Adaptec 2
Colorgraphic Evolution 2
Antex StudioCard
Intergraph StudioZ
Deskside Base Unit
7
