3. STANDARD EQUIPMENT

Upon opening the packaging box, you will find the following
B
items inside:
• Manual edge bander PEB ZeroLine
• Electric/pneumatic supply hose with connection sockets
• Roll holder support
• Auxiliary roller for interior radius edge banding
• Reusable wooden box
• Instruction manual

4. OPTIONAL ACCESSORIES

• ZeroLine MEB table
• Silicone-free release agent "Cantspray"
• Netspray
• Edge milling machine FR156N/FR256N
• Head CA56G
• Pneumatic clamping system, swivel and tiltable SVN460
5046400
• Support with 2 suction cups SFV50 5045753
• Support with 1 suction cup SFV150 5045833
• Double edge profiler AU93 (max. 1 mm)
• Edge trimmer RC21E (max. 1 mm)
• Edge trimmer RC221R (max. 2 mm)
• Edge trimmer RC321S (max. 3 mm x25)
• Radius scraper 5031110

5. PACKAGING AND TRANSPORT

The machine is supplied in a wooden packaging, which you
should keep for future transports..

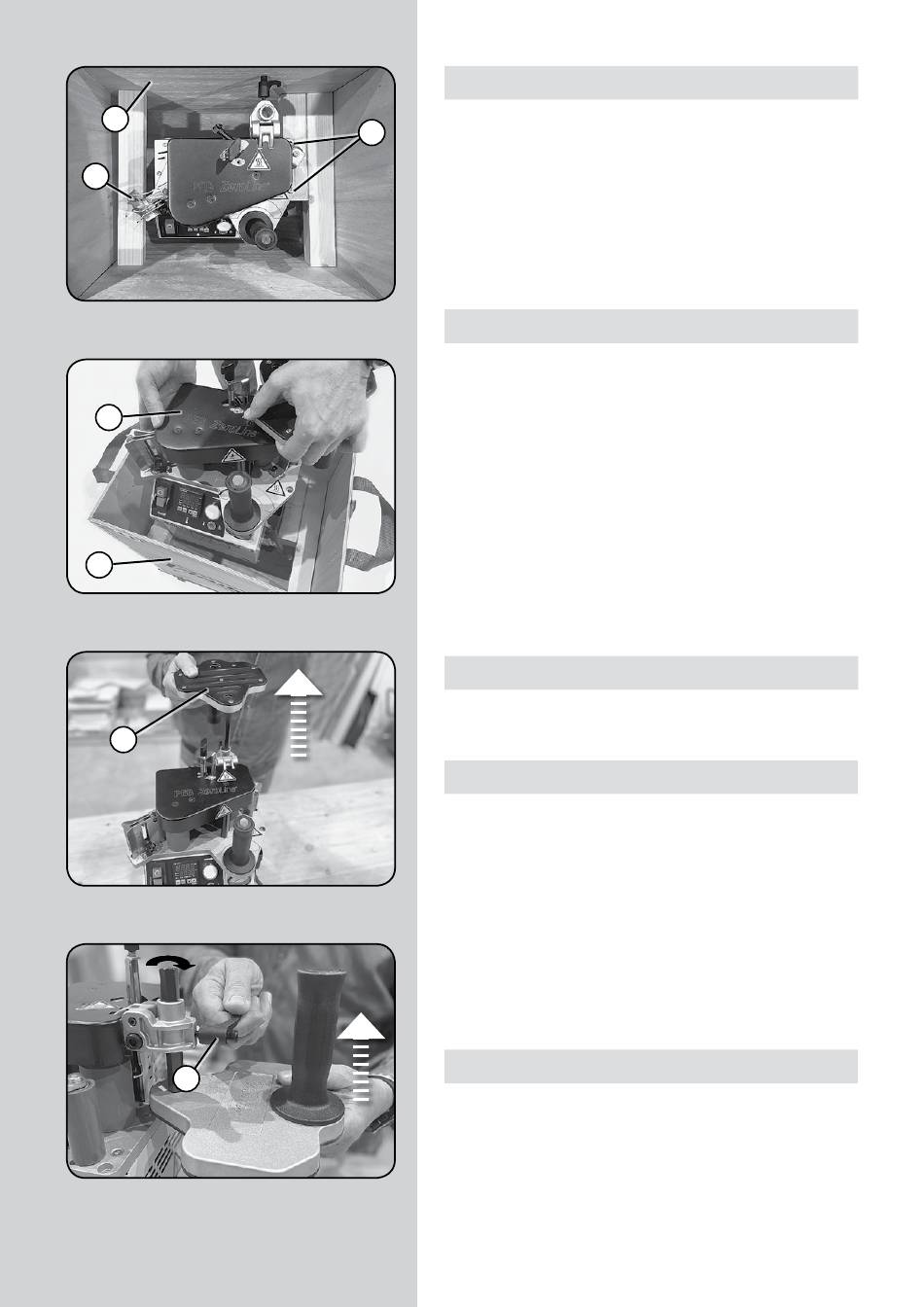

5.1 UNPACKING
The machine is inside the packaging and should be removed
as follows:
• Remove the top cover and keep it in a safe place for later use.
• Unscrew and remove the 3 screws B (Fig. 1) from inside box
A (Fig. 1) using a Phillips screwdriver (keep them for later use).
• Remove the machine B (Fig. 2) from inside box A (Fig. 2).
• Unscrew handle A (Fig. 4) and remove guide support B (Fig.
3), then assemble it as shown in (Fig. 4).
• Ensure that both handles A and B (Fig. 5) are aligned as shown.
• Keep the wooden box and the cover for storing or transpor-
ting the edge bander.
5.2 ROLLER HOLDER ASSEMBLY
Position the roller holder on the machine plate and secure it
with the supplied screw A and knob B (Fig. 5b).
The roller holder enables efficient edge banding of long lengths
of edging greater than 500 mm, ensuring correct introduction
of the edging into the edging line.
