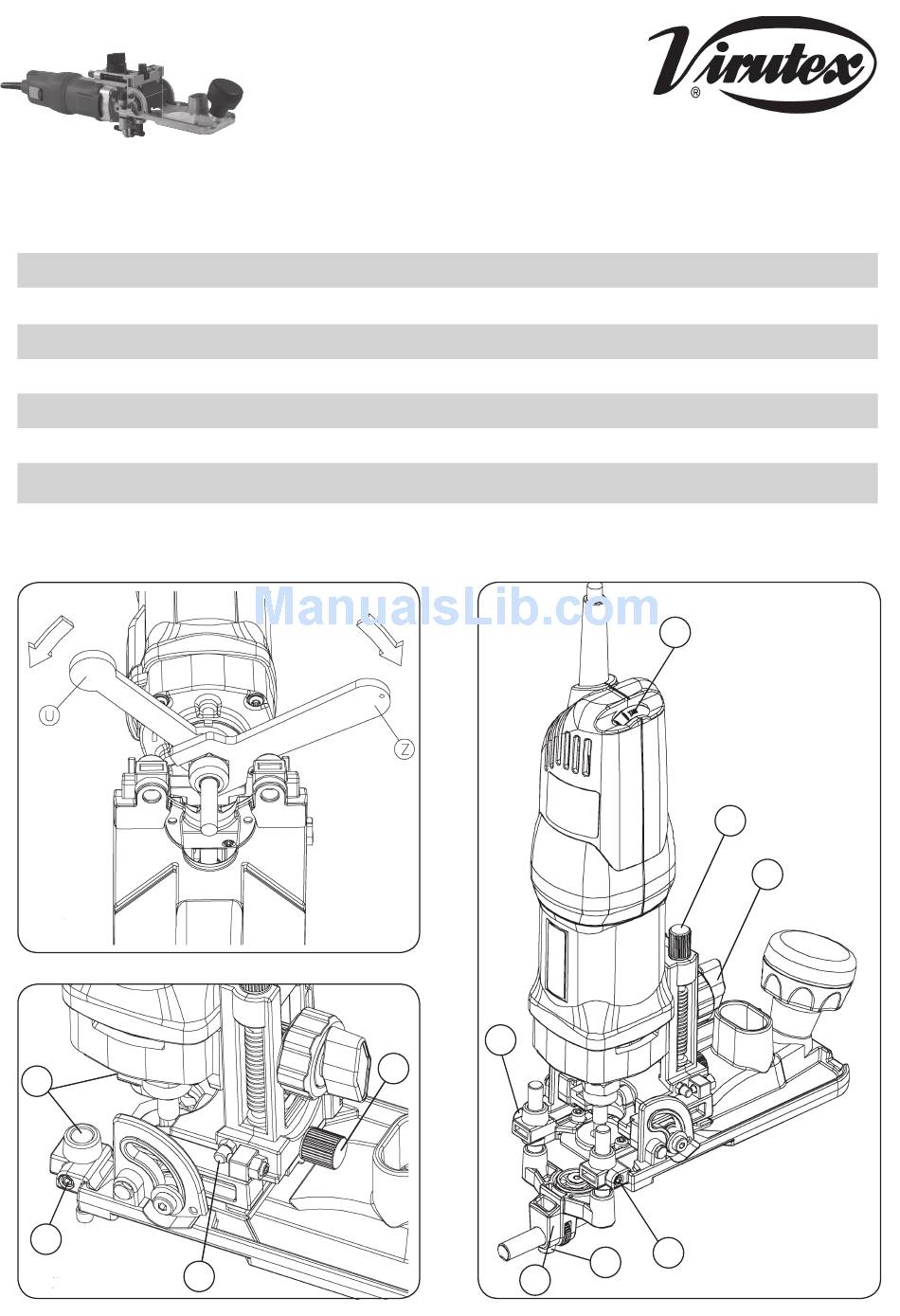

- Page 1 MODE D'EMPLOI GEBRAUCHSANWEISUNG MANUALE D'ISTRUZIONI MANUAL DE INSTRUÇÕES ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ página/page seite/pa gi na страница ESPAÑOL Fresadora de cantos inclinable FR292R ENGLISH FR292R Tiltable trimmer FRANÇAIS Affl eureuse inclinable FR292R DEUTSCH Schwenkbare Kantenfräse FR292R ITALIANO Fresatrice inclinabile FR292R PORTUGUÉS Fresadora inclinável FR292R...
- Page 2 Fig. 5 Fig. 4 Fig. 6 Fig. 7 Fig. 8 Fig. 9...
- Page 3 Fig. 10 Fig. 11 Fig. 13 Fig. 12...
- Page 4 Fig. 14 Fig. 15 Fig. 16 Fig. 17 Fig. 18...
-
Page 5: Specifications
4. GENERAL DESCRIPTION OF THE ROUTER English The FR292R router can be used for trimming laminates, shaping small mouldings, rabbeting, making straight cut-outs, chamfering, etc. Its head may be tilted from FR292R TILTABLE TRIMMER 0 to 91.5°... - Page 6 8.1 TRIMMING SURFACES AND EDGES supply before adjustment. WITH THE 90° CONICAL BIT With the FR292R router, head tilt may be set for the Trimming the coating of a surface (Fig. 11-a1), cutter head to be between 0 and 91.5° and may be and (Fig.
- Page 7 Y and fi ne adjust- to extract the brush and replace it with a new genuine ment A (Fig. 8). VIRUTEX brush. Reinsert the brush-holder, ensuring Trim the rest of the edge. that it is fi rmly positioned in the casing and that each of the brushes exerts a small amount of pressure on 8.3 TRIMMING EDGES WITH A SHAPED BIT...
-
Page 8: Caractéristiques
VIRUTEX reserves the right to modify its products without prior notice. 4. DESCRIPTION GÉNÉRALE DE LA FRAISEUSE Les fonctions de la fraiseuse FR292R sont l'affl eurage Français de stratifi és, la réalisation de petites moulures, de dé- lardements, de rainures droites, de chanfreins, etc. Sa tête rabattable de 0 à...
