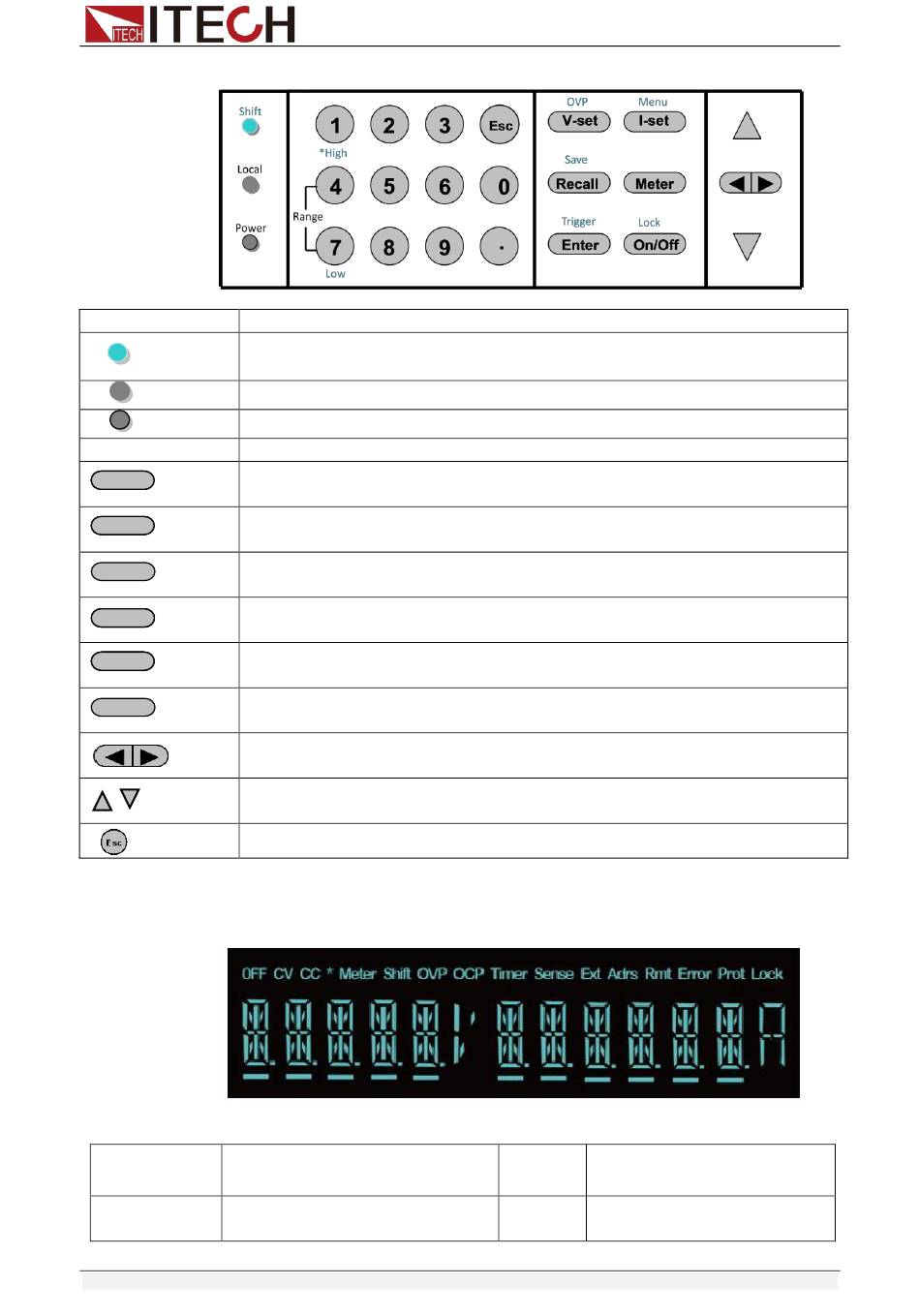

Name and the function
Keys
Compound key, co-work with OVP、Menu、Save、Trigger、Lock、
Shift
and numeric key 4 and 7 to switch the dual-range
Local switch key, switch from remote mode to local operation mode
Local
Power on key
Power
0-9 Numeric keys
Voltage set key, set the output voltage/over voltage protection point
V-set V-set
OVP
for the power supply
Current set key, set the output current/menu function key, to set the
I-set I-set
Menu
relevant Parameters for the power supply
Callback key to call up a set value of system parameters already
Recall
Save
stored / storage key, to save system parameter settings
Meter key, to switch from value set panel and the actual output value
Meter Meter
display
Enter key, to confirm the number entered and operation / trigger
Enter Enter
Trigger
button, which is used to trigger the List test.
Output on (off) keys, control power output state / keypad lock function
On/Off
Lock
keys, used to lock the panel buttons
Left and right movement keys, used to set the value, to adjust the
cursor to the specified location
Up and down keys, used to select an item in the menu or increase
(decrease) the output voltage or current values
Escape key

2.4 VFD Description

char
Function
OFF
Output is off
char
Timer
Copyright © Itech Electronic Co., Ltd.
www.tehencom.com
Function
Output on timer function is
enabled
Quick Start
8
