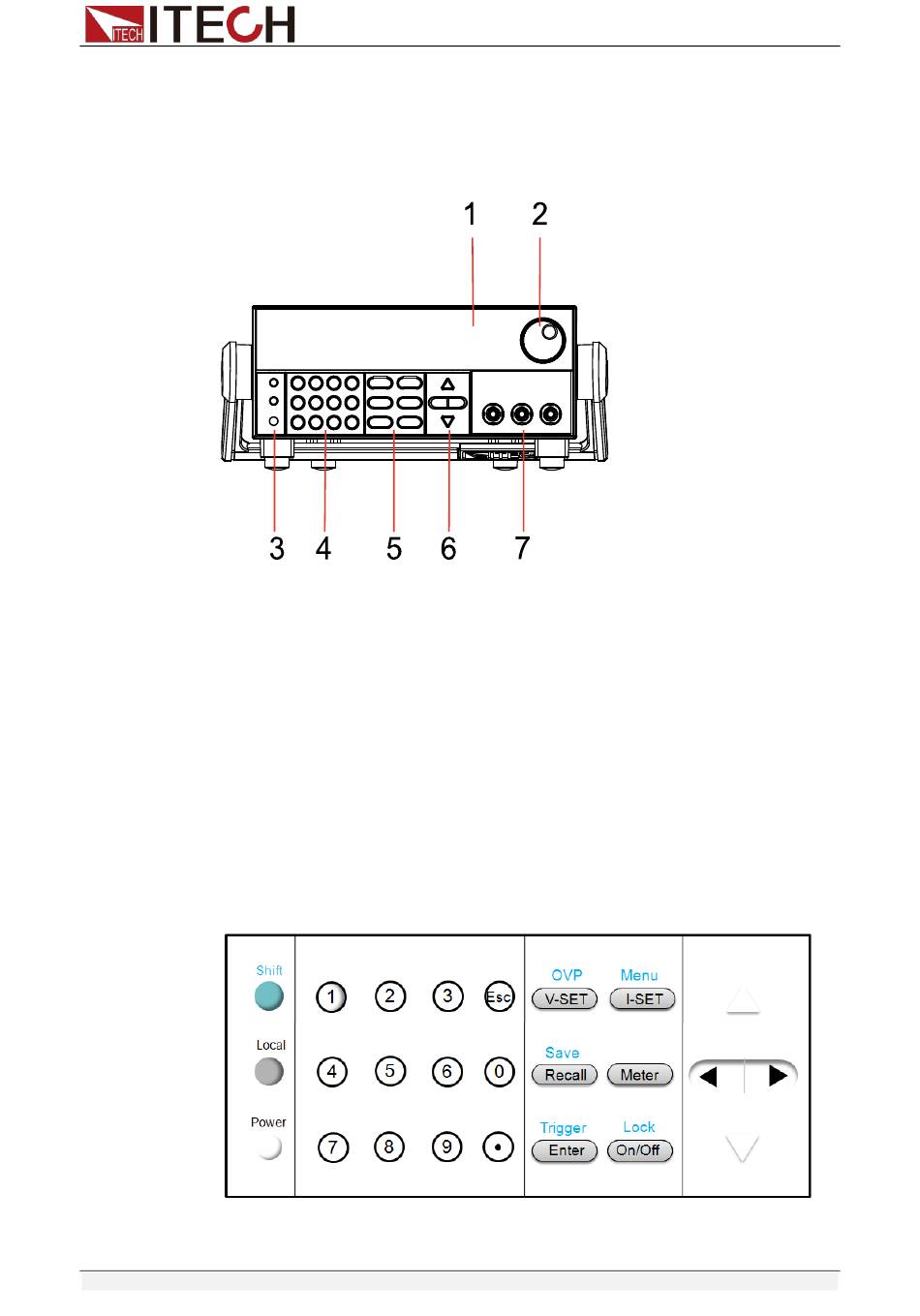

2.2 Front Panel Introduction

IT6800A/B series power supplies have two kinds of front panels. The output
terminals of IT6830A/B series power supply are circular sockets, while
IT6860A/B series power supplies are wiring terminals. Take the example of
IT6860A.
①VFD display
②Rotary knob
③Compound key, the local switch key and power switch
④Number keys and ESC escape key
⑤Function keys
⑥UP、DOWN, LEFT and RIGHT key, to move cursor
⑦Output terminals

2.3 Keypad introduction

The key functions and keys of IT6830A/B series power supply are shown as
below picture.
The key functions and keys of IT6870A/B series power supply are shown as
