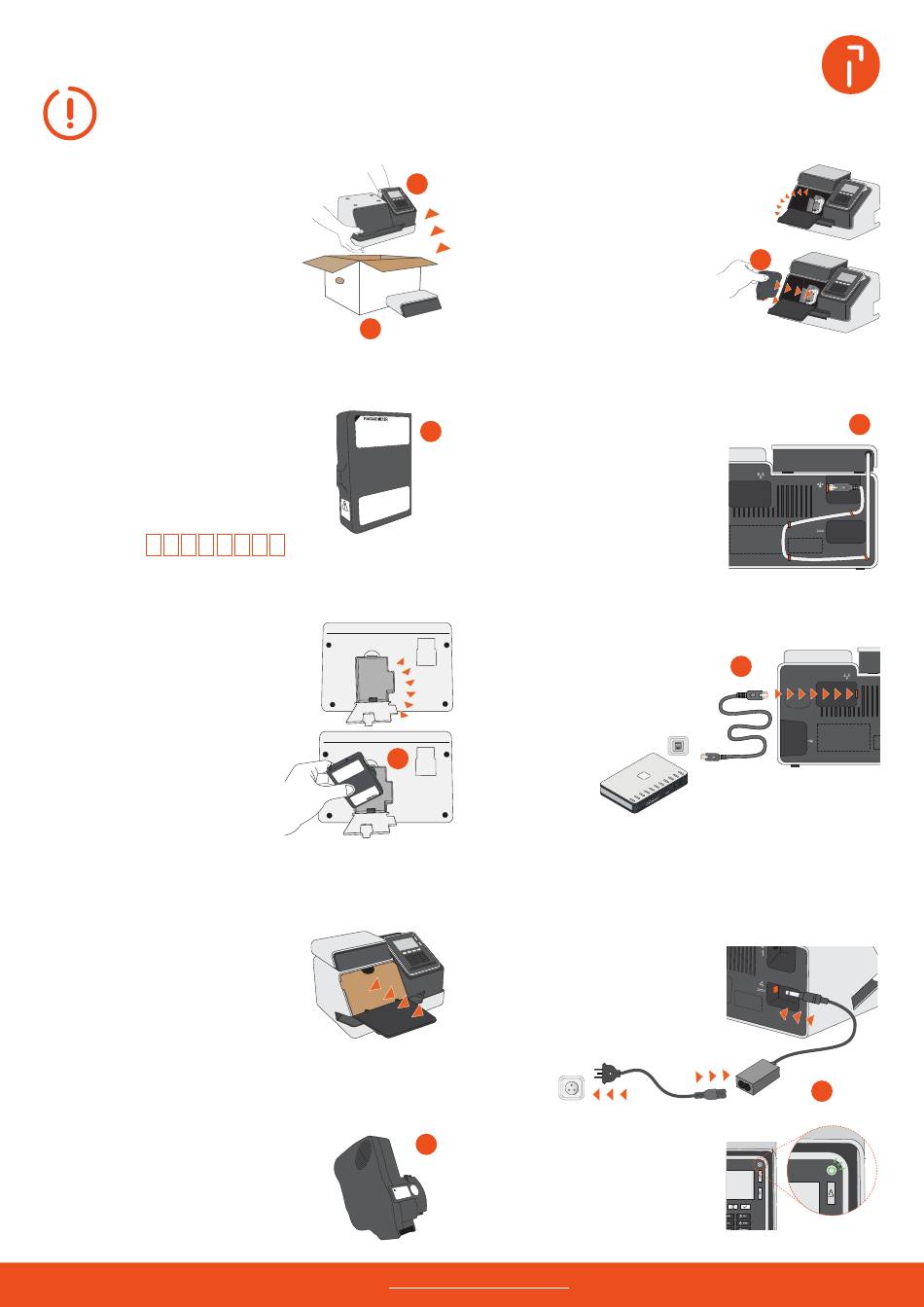

Assemble your iX-1
Before you begin, decide if you are going to use a wired (LAN) or wireless (Wi-Fi)
connection, then visit our how to hub at
installation videos for wired and wireless configurations.
1
Unpack the box
(a)
Remove the iX-1
and the
(d)
weighing platform
from the
packaging.
2
Unpack the meter
Write down the serial number.
You will need to reference the
meter serial number if you need
help from our specialists.
3
3
Serial #:
3
Install the meter
Turn the iX-1 on its back and
open the meter cover located
on the bottom of the franking
machine.
(b)
Insert the meter
by
positioning it vertically, with the
contacts down facing to the rear
and the labels facing towards
you.
Close the cover and return the
iX-1 to the upright position.
4
Remove print head packaging
Open the front cover by pulling
the upper left corner towards
you.
Remove the protective packag-
ing, then close the front cover.
5
Unpack the cartridge
Remove the cartridge from the
packaging.
Remove the protective film from
the print head.
Need help? Contact us at: www.myquadient.co.uk or call 0845 8800000
kbhelp.quadient.com/iX-1_videos
6
Install the cartridge
a
Open the front cover, then
open the cartridge slot by
pulling the blue lever towards
you and turning it to the right.
Insert the cartridge (c), then
turn the blue lever back to
the left until the cartridge is
secured and close the cover.
d
7
Install the weighing platform
b
Plug the weighing platform
connector
located on the back of the iX-1.
Place the weighing platform
on top of the iX-1, then insert
the cable into the cable
management clips at back of
the system.
8
Connect the internet cable
Plug one end of the LAN cable
into the internet cable port
located on the back of the iX-1.
Plug the other end into a LAN
wall port or Wi-Fi router.
b
9
Connect the power cable
Plug the power cable connector
into the power adapter.
Plug the power adapter connector
into the back of the iX-1.
Plug the other end of the power
cable into the wall outlet.
10
Power up the iX-1
c
The system will power up
automatically.
4
to watch
(d)
into the scale port
3
e
step 1
step 3
c
d
2
1
4
2
1
4
3
step 1
f
