quadient iX-3 Series Quick Installation Manual

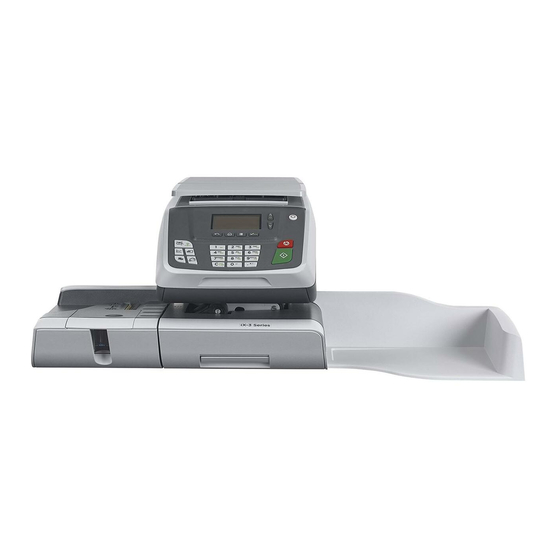

iX-3 Series Base
Quick Installation Guide
Machine components:
Feeding Table
1
Unpack all components from the box, remove packaging
and any transit tape.
5
Lift machine slightly on the left hand side and align the hooks to attach the feeding
table (b) – attach the catch tray (c) to the right hand side of the machine.
9
Installation Process
1 LAN
OK
Mem
Select LAN and press to test connection
type.
For more help with your installation, please visit:
Machine Base
Catch Tray
Back of the machine
2
Lift the cover of the machine to reveal the
ink cartridge (h) and meter (i) bays.
6
Lower weighing platform release panel at the back
of the machine. Place weighing platform
top of the machine and slide forward to lock. Lift
panel to secure and clip cable into place.
10
Installation Process
Press the 'Next' to start the
Online service
declaration.
Next
Mem
Follow the steps on screen to complete the
procedure
Weighing Platform
Weighing Platform
3
Open the cover. Place the meter (i) into the meter bay and slide in until
it fits securely into position. Close the cover.
7
Connect the weighing platform connector
(d) on on the back of the machine. Then connect the LAN cable
power cable (g) to each side of the machine.
11
Your mailing system is now
Login ready to use. Your default
user pin is 1234.
Enter PIN code Please call the Quadient
service team on 016250900
1234
to retrieve your pin for
OK adding credit and then follow
the instructions on the Quick
Start guide.
Mem
kb.quadient.ie/ix3_install
LAN Cable
Power Cable
Cable
4
Insert the ink cartridge (h) at an angle into the machine with the 'TOP' and
'LOCK' stickers facing upwards. Push the ink cartridge
of the machine until you hear a 'click' - close the cover of the machine.
8
Turn on the machine using the switch behind the
(e) into the COM PORT
power cable
(f) and
For more information or if you experience any
issues, please visit :
Ink Meter
Cartridge
(h) towards the back
(g) and follow the steps on screen.
kb.quadient.ie/ix3
