THORLABS OTM200 User Manual page 10

OTM200
Chapter 4 Operation
4.1. Starting the System
To power up the system, follow the steps below.
1. Start the Power Supply Module by placing the POWER switch on the back of the unit to the "I" position.
Verify that the "POWER ON" indicator turns green on the lower front side of the unit.
2. At this time, the "Power" and "Ready" indicators on the Electronics Control Module will turn on.
3. Turn the key switch on the Electronics Module to the "ON" position.
4. Check the emergency stop button and make sure it is in the "Enable" position.
5. Make sure all interlocks are closed.
4.2. Graphical User Interface
The OTM200 system comes with a pre-installed software which contains everything needed for system control and
data acquisition. In addition an SDK is provided to allow users to easily create applications optimized for their
particular requirements.
The GUI has five main areas:
 The Camera Display
 The Laser Control
 The Stage Control
 The Trap Control
 Tools
Rev C, Oct 7, 2015

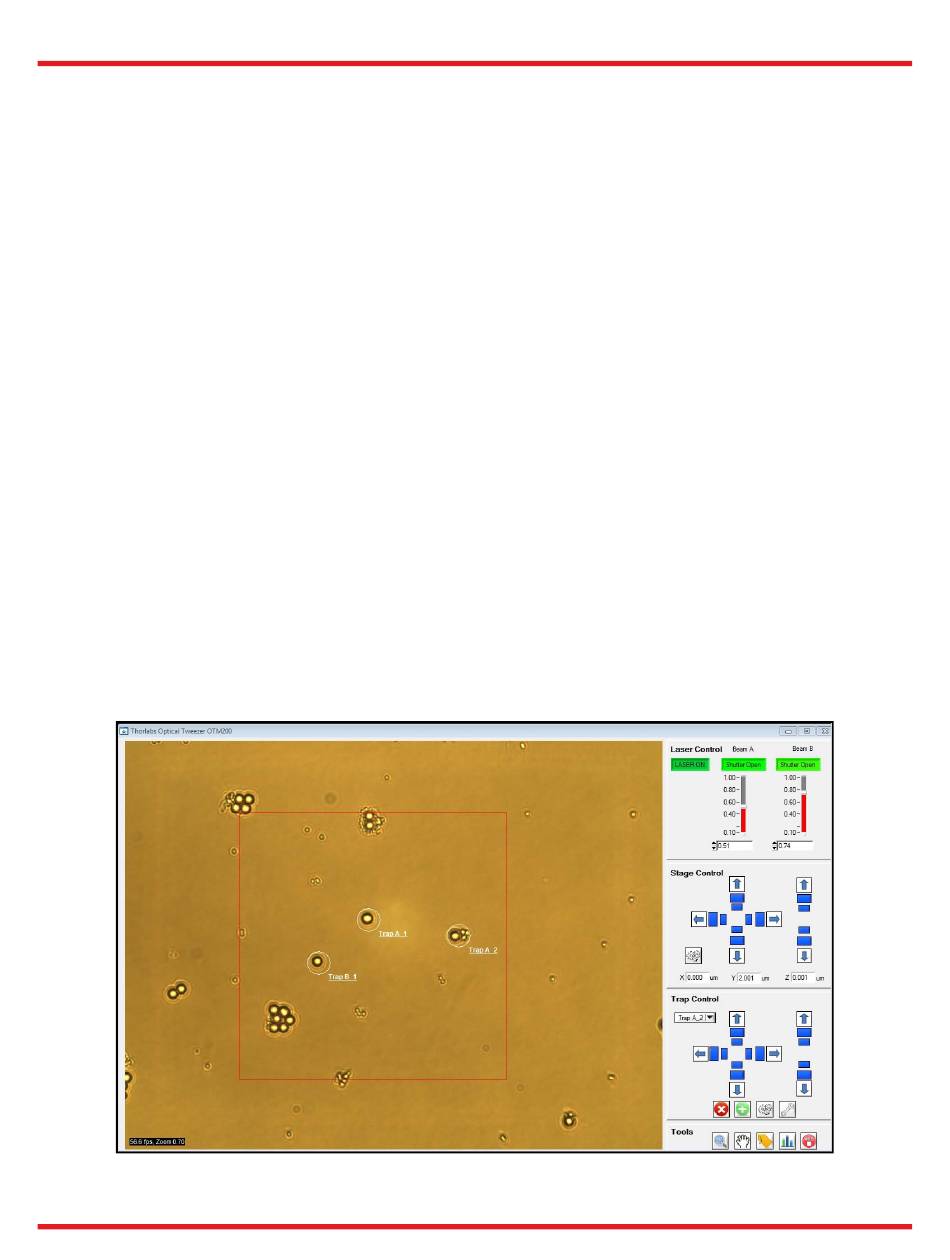

Figure 7 Software User Interface
Chapter 4: Operation
Page 10
