OTM200 Chapter 3: Description
3.5. Optics Module
The optics module includes all the optical and opto-electronic components for creating and controlling multiple
optical traps. The conditioned output beam is coupled into the microscope. A schematic for this module is shown
below.

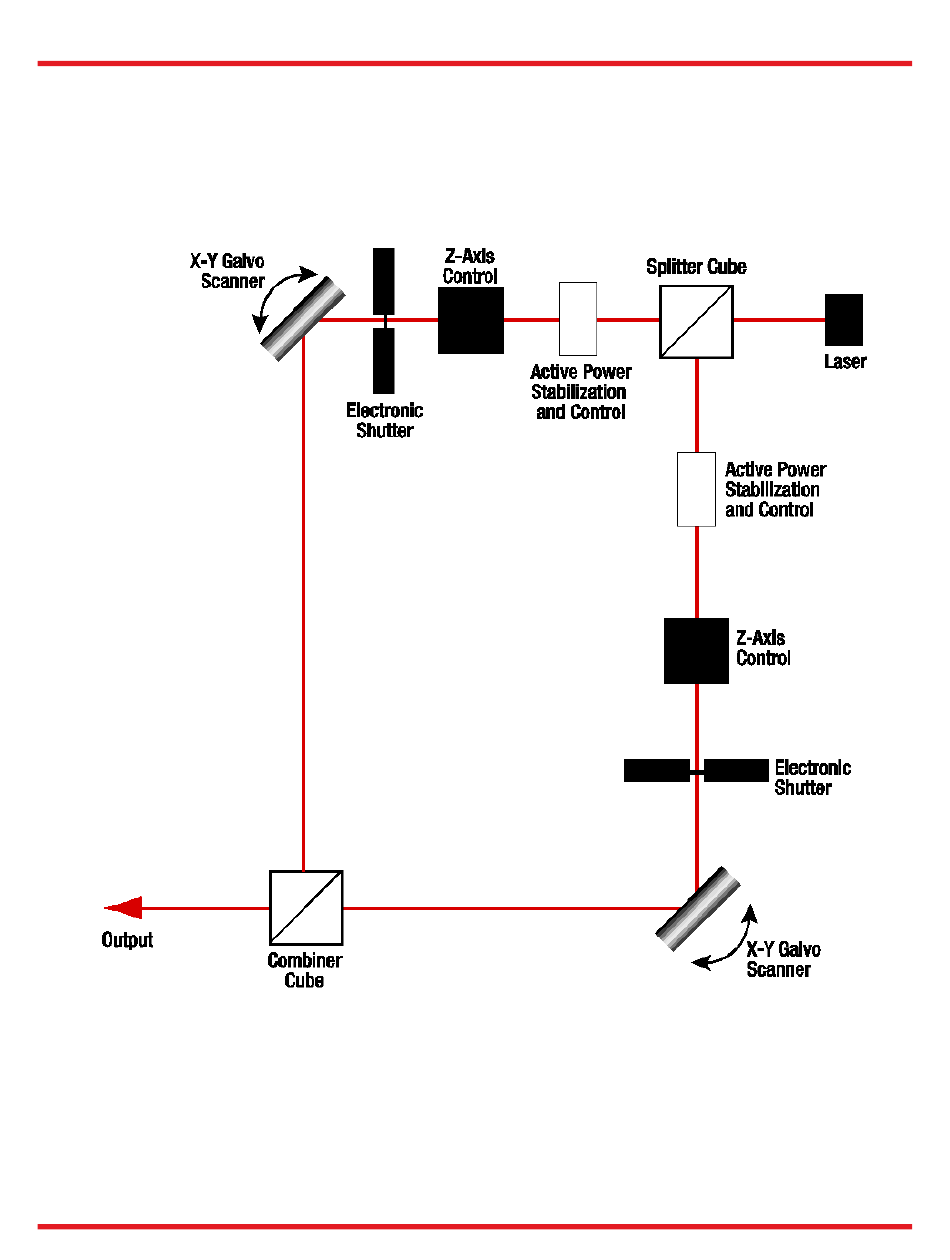

Figure 3 Schematic of Optics Module
