5730018_06.22_EN
Original instructions

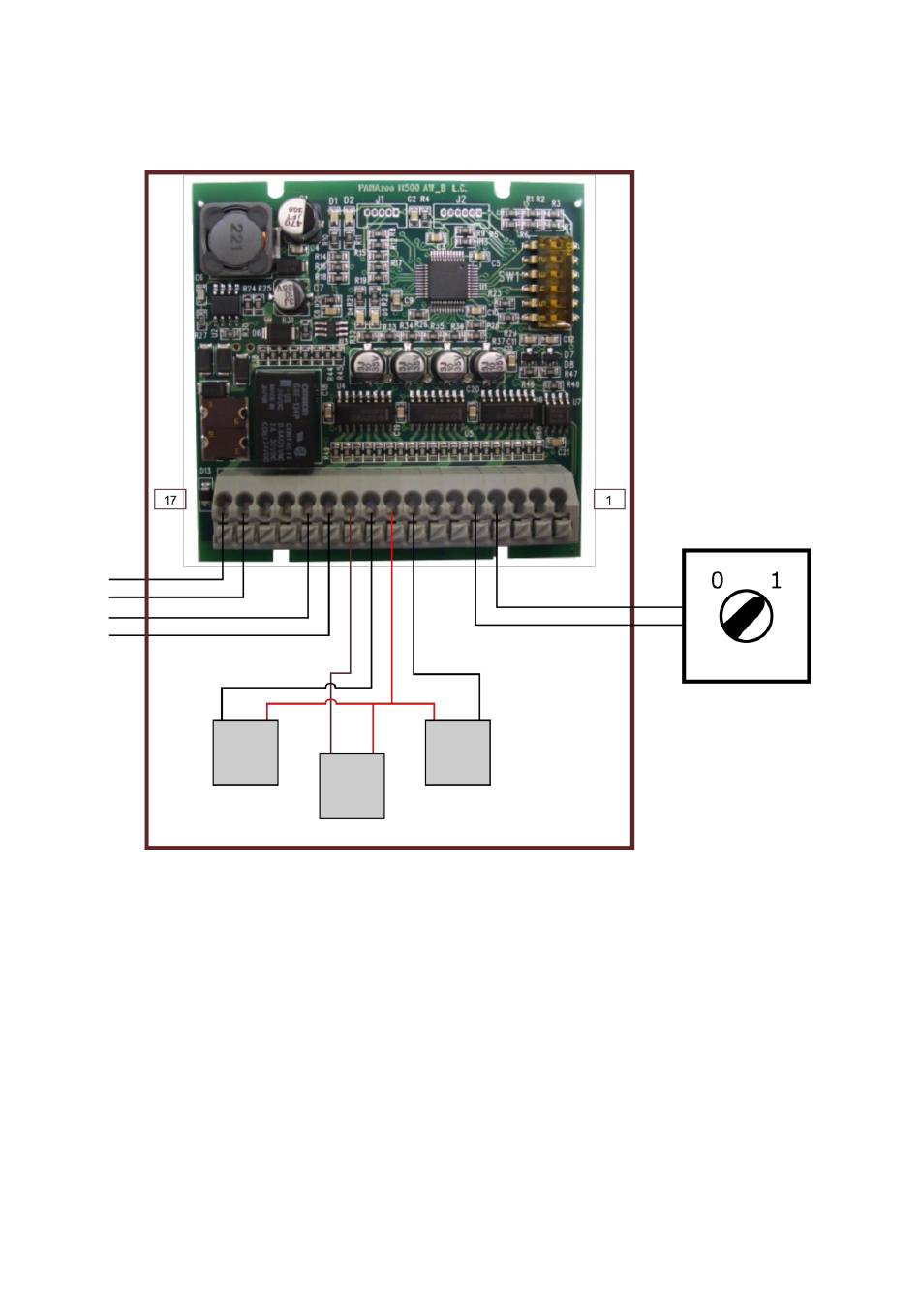

4.1.1 Wiring diagram with type 1 board
Washing bypass
(not supplied)
Panel
CV
Compressed air
Water solenoid valve
Solenoid Valve Output solenoid valve
This manual is the property of InterPuls S.p.A. - any copying, even partial, is strictly prohibited.
11
