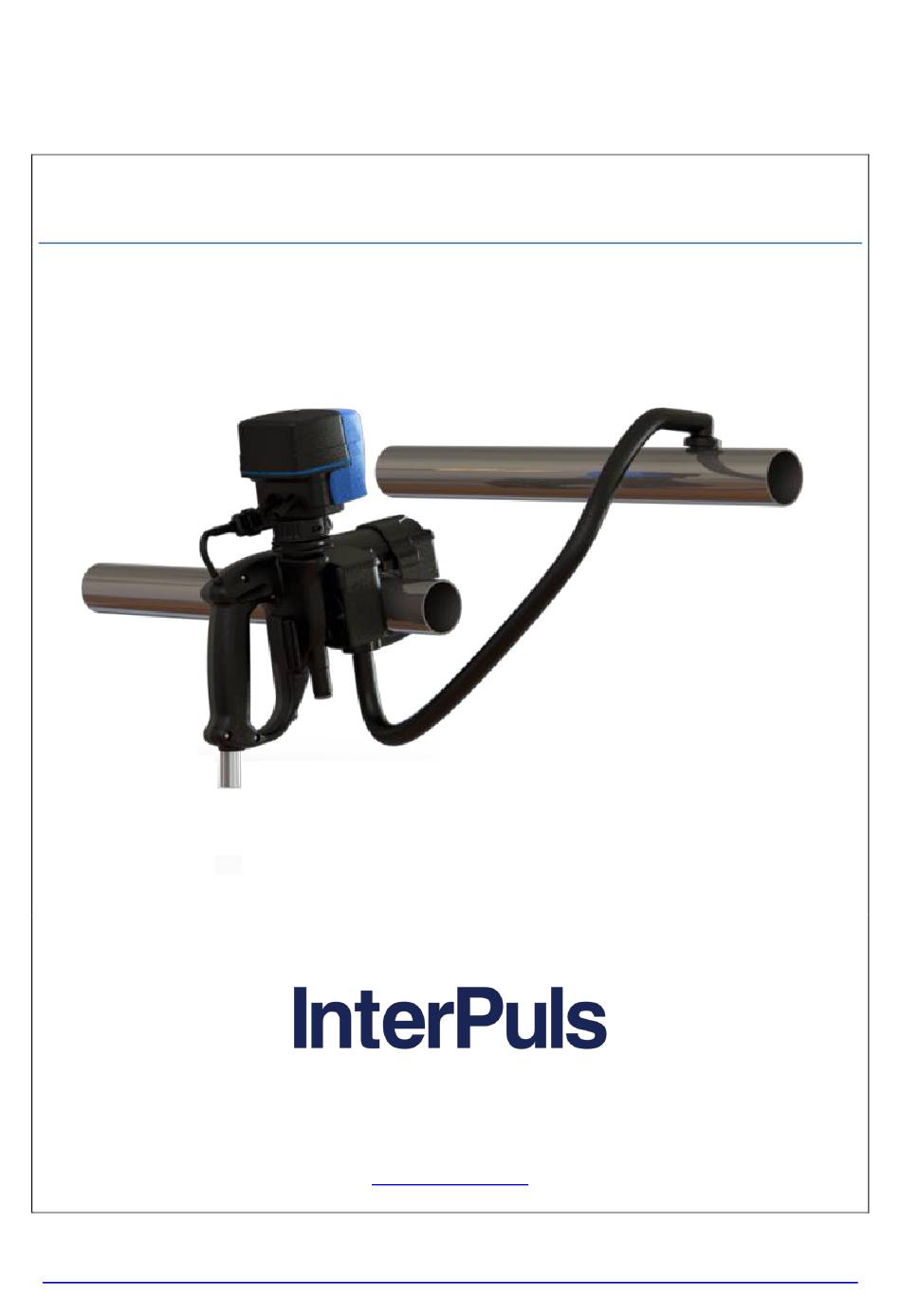

Instruction Manual, Operation and Maintenance
original instructions
Combifast®
InterPuls S.p.A.
Via F. Maritano, 11 - 42020 - Albinea (RE) – ITALY
Tel. +39 0522 347511
Fax +39 0522 348516
sales@interpuls.com
InterPuls S.p.A.
-
THIS MANUAL IS THE PROPERTY OF -
ANY COPYING, EVEN PARTIAL, IS STRICTLY PROHIBITED
Advertisement
Table of Contents
Related Manuals for InterPuls Combifast
Summary of Contents for InterPuls Combifast
-
Page 1: Combifast
Instruction Manual, Operation and Maintenance original instructions Combifast® InterPuls S.p.A. Via F. Maritano, 11 - 42020 - Albinea (RE) – ITALY Tel. +39 0522 347511 Fax +39 0522 348516 sales@interpuls.com InterPuls S.p.A. THIS MANUAL IS THE PROPERTY OF - ANY COPYING, EVEN PARTIAL, IS STRICTLY PROHIBITED... - Page 2 YEAR OF MANUFACTURE 2017 InterPuls is a registered trade mark of InterPuls SpA. The information contained in this document is not binding and can be modified without notice. References in this document to manufacturer trademarks are for identification only. Certain company and product names used throughout the document are trademarks of their respective owners.
-
Page 3: Table Of Contents
Unforeseen use..........................7 INSTALLATION ............................8 Operations for milking ........................10 COMBIFAST WITH PORTABLE ......................11 Combifast with Portable iMilk401 and Portable iMilk401 Lite ............11 6.1.1 Connection without data download ..................11 6.1.2 Connection with data download ....................12 Combifast with Portable Acr Smart .................... -
Page 4: General Information
Any failure to observe the warnings provided in this manual may lead to equipment malfunctions or damage to the system. 1.1.4 Limitation of liability InterPuls S.p.A. declines all liability for damage to persons, animals and/or things caused by incorrect use of the equipment. 1.2 Prior using the product 1.2.1 Requirements and rules for personnel and Safety Rules... -
Page 5: Disposal
Combifast® Instruction Manual, Operation 1420066_02.17_EN Maintenance original instructions 1.3 Disposal 1.3.1 General regulation The appliances must be disposed of only and exclusively by specially authorized waste disposal companies in accordance with all relative legislation and prescriptions. The packaging must be consigned to the relative authorized companies to be recycled. -
Page 6: Description Of The Device
Combifast® - Instruction Manual, Operation and Maintenance 1420066_02.17_EN original instructions 2 DESCRIPTION OF THE DEVICE 2.1 General characteristics ® CombiFast is a connecting system designed to simultaneously connect milk, vacuum, electrical power supply and data transfer lines. It is made of light, shock absorbent thermoplastic and features a practical handle which makes it easy to transport and use. -
Page 7: Technical Features
WARNING Any use other than the one covered in this manual is considered improper use and is therefore forbidden. InterPuls S.p.A. declines any liability associated with any use of the device other than the one covered in this manual. WARNING Application of loads is forbidden. -
Page 8: Installation
Combifast® - Instruction Manual, Operation and Maintenance 1420066_02.17_EN original instructions 5 INSTALLATION Step Description Foresee the installation of one fixed component for every 2 animals. Pierce the milk (ref. 3) and vacuum (ref. 4) lines with a 22 mm (0.86 in) diameter drill bit. - Page 9 Connect the claw’s milk tube to the Combifast’s movable component ID 14 milk tube using a suitable piece of milk tube (2.5m – 8.2 ft suggested).
-
Page 10: Operations For Milking
Combifast® - Instruction Manual, Operation and Maintenance 1420066_02.17_EN original instructions 5.1 Operations for milking Milking with Combifast is carried out as follows: Step Description Insert the movable component in the fixed component angled horizontally to facilitate insertion. Fig. 1 – Insertion movable component Attach the milking cluster to the animal (1) and begin milking. -
Page 11: Combifast With Portable
Acr Smart. NOTE For further details of use relating to Portable iMilk401, iMilk401 Lite and Acr Smart refer to the relevant manuals. 6.1 Combifast with Portable iMilk401 and Portable iMilk401 Lite 6.1.1 Connection without data download 6.1.1.1 Movable part BLUE... -
Page 12: Connection With Data Download
Combifast® - Instruction Manual, Operation and Maintenance 1420066_02.17_EN original instructions 6.1.1.2 Fixed Part BLUE BLACK Terminal Description Cable Colour SUPP. 24V + BLUE POWER SUPPLY SUPP. 24V - BLACK 6.1.2 Connection with data download 6.1.2.1 Movable Part YELLOW WHITE SCREEN... -
Page 13: Combifast With Portable Acr Smart
+24VDC SUPP. GREEN POWER SUPPLY -24VDC SUPP. BROWN DATA DOWNLOAD YELLOW SUPPLY DATA DOWNLOAD WHITE DATA DOWNLOAD SCREEN 6.2 Combifast with Portable Acr Smart BLUE BLUE BLACK BLACK BLACK BLACK BLUE BROWN BLUE BLACK BLUE CN2 Terminal Description Cable Colour... -
Page 14: Maintenance
7.2 Periodical maintenance Combifast requires the following maintenance interventions on an annual basis: Check the tightness of nut and screws: - Check that the fastening nut and screws are correctly tightened. -
Page 15: Trouble Shooting
Combifast® Instruction Manual, Operation 1420066_02.17_EN Maintenance original instructions 8 TROUBLE SHOOTING PROBLEM POSSIBLE SOLUTION DETECTED CAUSE Incorrect Problems positioning of the interesting the ball (ref 12, see Position the ball as indicated in the 7.2 - Periodical maintenance movable figure previous section of this manual. -
Page 16: Spare Parts Diagram
Combifast® - Instruction Manual, Operation and Maintenance 1420066_02.17_EN original instructions 9 SPARE PARTS DIAGRAM InterPuls S.p.A. THIS MANUAL IS THE PROPERTY OF - ANY COPYING, EVEN PARTIAL, IS STRICTLY PROHIBITED MI - 16...
