5. DESCRIPTION OF THE DEVICE

5.1 Transmitter (Fig. 1 on page 2)
1. Integrated antenna
2. Command buttons

3. LCD display

4. Buttons for selecting the dog
5. Off/on button
6. Buttons for adjusting the level
of stimulation
5.2 LCD display (Fig. 2 on page 2)
1. Stimulation impulse level
2. Adjustable button function - booster
3. Adjustable button function - vibration
4. Stimulation impulse deactivated
5. Choice of dog
5.3 Receiver (Fig. 3 on page 2)
1. Integrated antenna
2. Strap
3. Contact points
4. Indication lights
5. Red mark for magnet attachment
(collar on/off)

6. TRANSMITTER PREPARATION

6.1 Charging the transmitter

The Edge ONE transmitter contains a Li-Pol rechargeable battery. It must be charged before
first use.

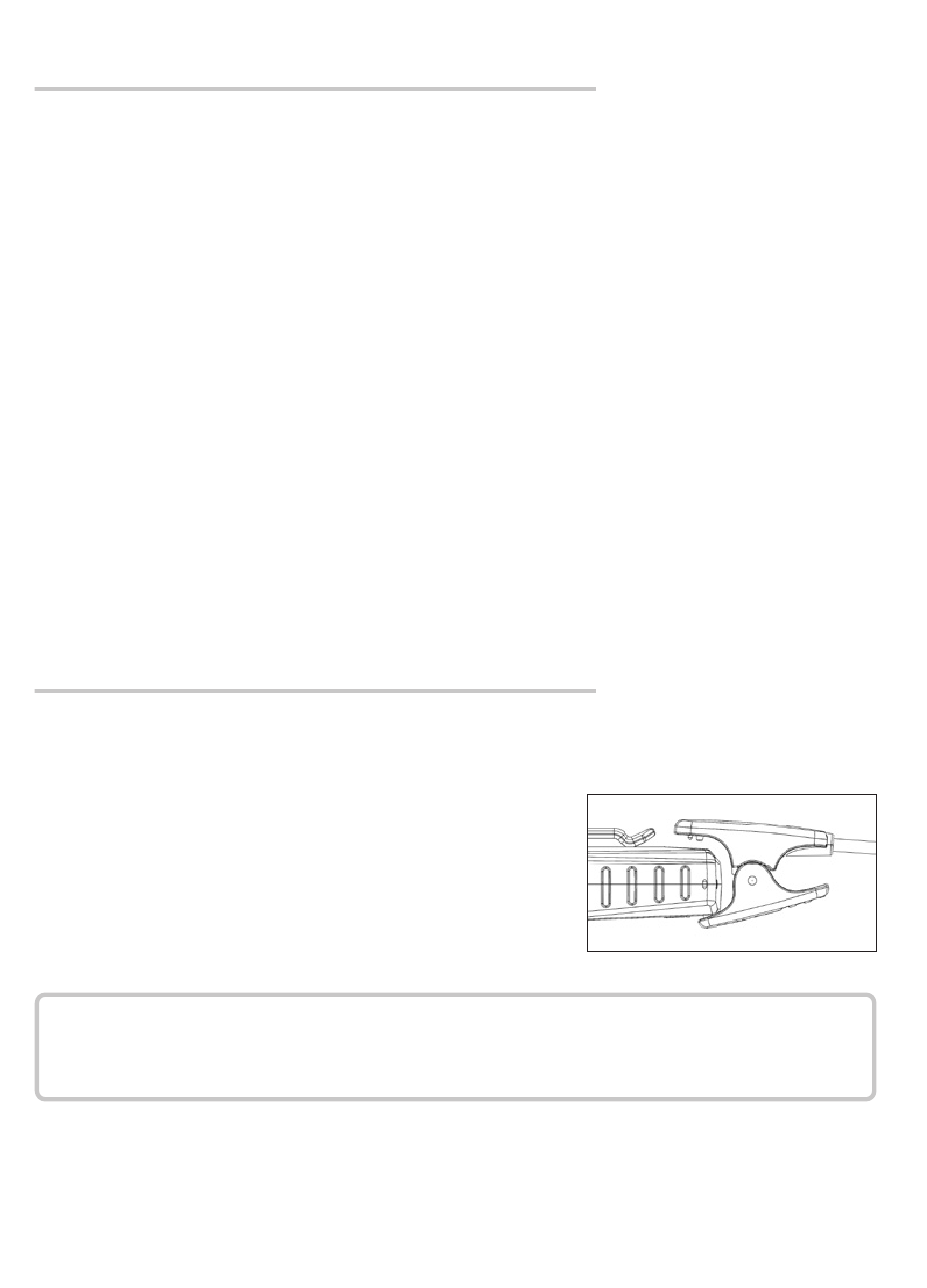

1. Remove any dirt from the charging contacts. Connect
the power cable to the transmitter using the clip.
2. Connect the mains cable to a 5 to 5.5 V DC charging
adapter (not included) and then plug it into the socket.
3. Lines will gradually appear in the battery symbol on the
display.
4. The charging time is about 2 hours.
5. The battery is charged when the full battery symbol is
displayed - see below.
WARNING: Charge the battery in an environment with a temperature between 0° and
40°C. For charging, use a charging adapter with a voltage between 5 and 5.5 V DC or the
original 5.2 V mains adapter offered by the manufacturer as an optional accessory. Using
an adapter with a higher voltage could damage the electronic collar.
28
7. Red mark indicating the magnet for
fastening the collar
8. Belt clip
9. Holes for the lanyard on the neck
10. Contacts for charging
6. Command transmission indicator
7. Battery status indication
8. Secure lock of setting buttons
9. Long (C) / short (N) stimulation impulse
6. Battery compartment cover
7. Li-Pol battery
8. Seals
