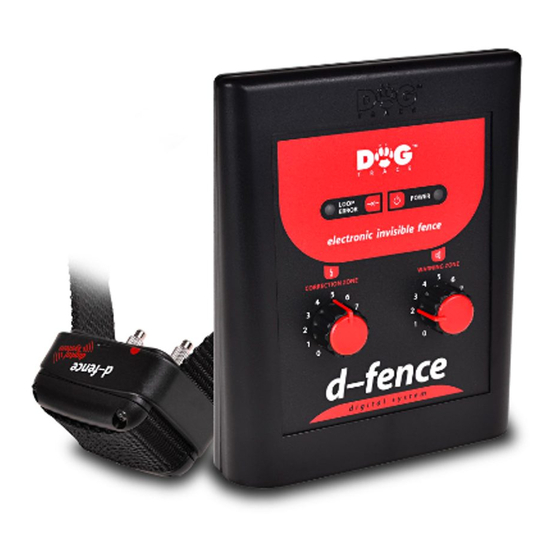

- Page 1 d–fence Electronic invisible fence Service instructions...
-
Page 2: Table Of Contents
Declaration of Conformity VNT electronics s .r .o . Smetanovo náměstí 104 570 01, Litomyšl IČO: 64793826 declare under own responsibility that the product: Electronic invisible fence Dogtrace d-fence is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC from 9 . -
Page 3: Preface
Preface Do you have a wandering pet not paying attention to your protests who likes traveling nearby and far from your house? Or is it a garden lover who likes your garden patches or a swimmer who loves swimming in your pool? Are you afraid of the fact that your pet may cause a road accident or it may become its victim? The electronic invisible d–fence, consisting of the transmitting generator, the antenna wire, and the collar will help you limit the range of movement of your dog, create the “prohibited zones“, without depriving it of... -
Page 4: Principle Of D-Fence Operation
Principle of Dogtrace d–fence operation ● The unit in the emergency mode is waiting for the dog coming to the prohibited zone border (formed by an insulated wire as an antenna), divided into two zones . ● If the dog crosses the border of the first (warning) zone, the collar starts emitting sound signals . -
Page 5: System Installation
System installation Transmitter ● The transmitter must be located in a safe place protected against water and moisture . It withstands temperature variations (within technical conditions), however, the penetra- tion of water would destroy it . ● Fix the transmitter onto the internal wall near to a power socket (220V) . ●... - Page 6 Antenna wire To make the system work, the wire must be connected to the transmitter and it must form an uninterrupted wire loop of 0,75 mm to 2,5 mm cross section, depending on the loop length . Unreel the wire from the transmitter round your piece of land . To take the wire out of the garage, your house, or any other covered location where the transmitter is located, pull it through the window, door or do it in another suitable way .
-
Page 7: Turning On/Off
Turning ON/OFF Turning ON ● Transmitter Plug the adapter connector in the socket on the back of the transmitter unit and plug in the power outlet . You can power up the transmitter by the setting the switch to ”ON“ . The green LED on the front panel will be lit and in the case that the antenna wire is not connected, the red LED (Loop error) starts flashing on and off and the transmitter starts sounding intermittently . -
Page 8: Zone Width Setting ("Warning" And "Correcting" Zones)
Zone width setting (”warning“ and ”correcting“ zones) With your transmitter you can extend and reduce the width of the warning and correcting zones, depending on conditions in your piece of land and upon how the wire is laid . a) The warning zone (sound signal) It is infinitely adjustable from 0,40 m to 5 m (the detection distance is approximate, depen- ding on the loop length and location of the wire) along both sides of the wire using the knob located on the transmitter panel . -
Page 9: Correction Pulse Intensity Setting
Correction pulse intensity setting There are 8 modes for setting a correction pulse level and 1 mode for testing intensity of interference signals . You can adjust correction level according to size and sensitivity of your dog . Changing a mode ●... -
Page 10: Three Functions Of The Safety System
Three functions of the safety system 1. Antenna wire cut-off If the antenna wire is cut off (or there is a failure in connection), the transmitter will warn you about the functional failure by intermittent beeping and the “Loop error” LED flashes on and off . -
Page 11: Training Method
Training method We are starting to use the collar The initial period of use can start when the young dog is at the age of 6 months after its elementary training is finished . Do not put the receiving collar on a pet being in poor state of health (heart problems, epilepsy, etc .) or to a dog that has problems with its behavior . -
Page 12: Troubleshooting
Basic requirements ● Never lay the antenna wire close to electric and telephone cables, television or satellite antenna leads . If you are unable to avoid crossing these conductors, try to cross them at the right angles if it is possible (avoid parallel running of the antenna cable along them) . ●... -
Page 13: Warranty
Warranty 1. This warranty is only valid when the Certificate of Warranty and your purchase document are submitted . 2. This warranty does not apply to the following: ● new batteries ● components subject to normal wear-and-tear (e .g . collar strap) ●... -
Page 14: Warranty Terms And Conditions
Warranty terms and conditions 1. The warranty period starts running on the date of sale when the official authorized seller sold the unit to the consumer . The condition for lodging a claim is the confirma- tion of the Certificate of Warranty by the official authorized seller . The current list of authorized sellers of Dogtrace product sellers is openly available at www.dogtrace.com or it is available at our office and at our sales representatives . - Page 15 We have a new DVD Dog training – basic commands...
-
Page 16: Certificate Of Warranty
Certificate of Warranty Producer: VNT electronics s.r.o. Smetanovo náměstí 104 570 01 Litomyšl Czech Republic Phone: +420 733 121 890 www.dogtrace.com Copying of this user’s guide without the exclusive consent of VNT electronics s.r.o. is prohibited . Version 2016-5-31 / EN...
