LOGICDATA COSMO SYDNEY Original Instructions Manual page 17

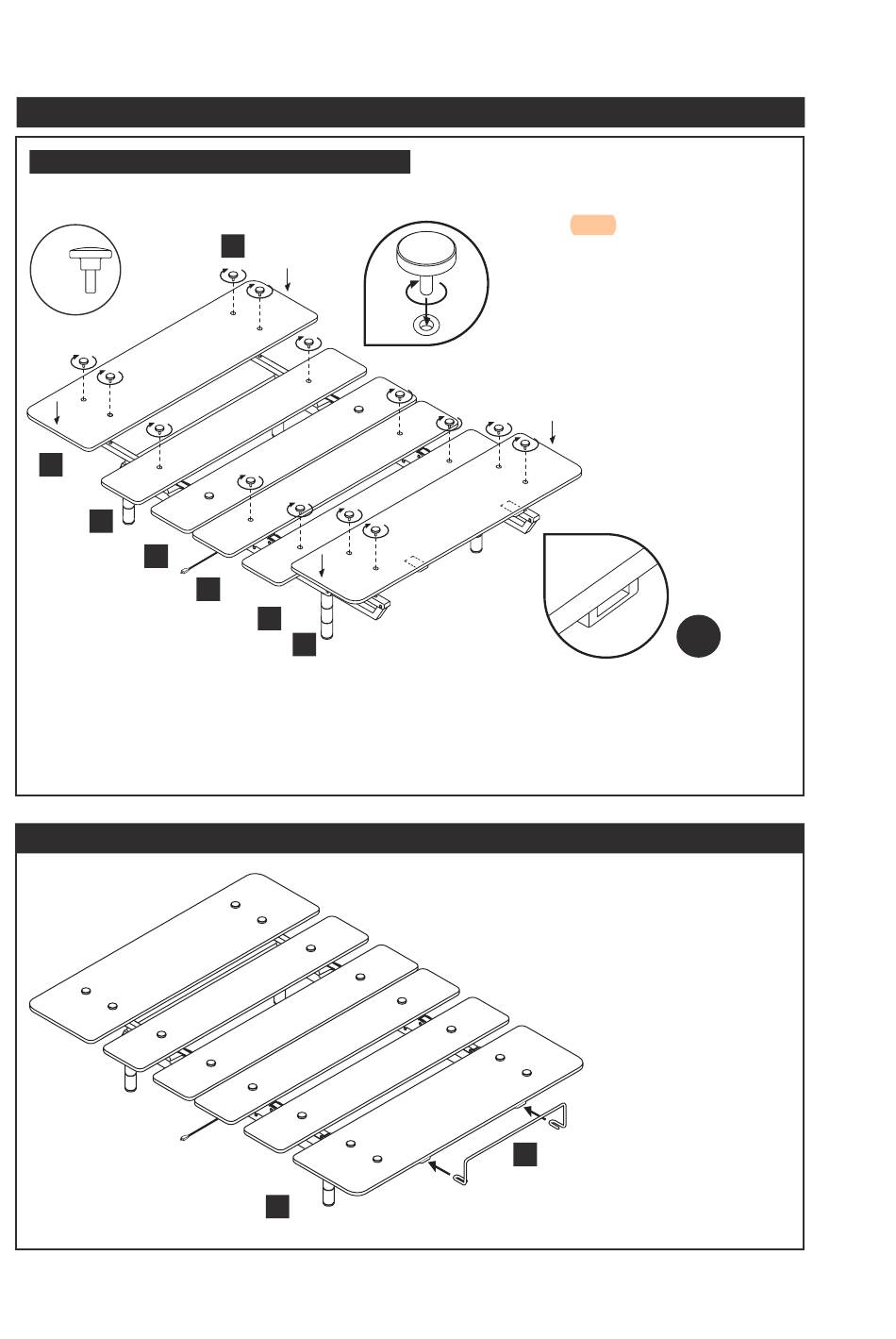

STEP 6: MOUNTING THE INNER, HEAD AND FOOT PLATFORMS
USE LABELS ON SIDE RAILS AND PLATFORMS
14x
A D
H E
H
I1
G
IMPORTANT:
▪
Use the labels on the Side Rails (A, B) to ensure the Platforms are at the right end.
▪
Ensure the the Platforms are oriented correctly. The curved edges should face outwards and the Brackets for
the Retainer Bar should face downwards.
STEP 7: ATTACHING THE RETAINER BAR
M
I2
I3
F
F
O T
F O
N
COSMO SYDNEY ADJUSTABLE BED FRAME – ORIGINAL INSTRUCTIONS // 17
1. Use 6 Platform Screws (M)
to attach the narrower, Inner
Platforms (I) to the Side Rails on
either side of the Base Platform.
2. Lay the Head and Foot
Platforms (H, F) in position on
the Side Rails.
3. Use the final 8 Platform screws
(M) to attach the Head and Foot
Platforms to the Side Rails (A,
B).
!
1. Move the Retainer Bar (N)
into position. The two ends of
the Bar should be inside the
Brackets at the end of the Foot
Platform (F).
2. Press the Retainer Bar (N)
firmly towards the Bed Frame
to click it into place.
