STEP 5: CONNECTING THE CABLES

L
16 // COSMO SYDNEY ADJUSTABLE BED FRAME – ORIGINAL INSTRUCTIONS
M
A
A B
K J

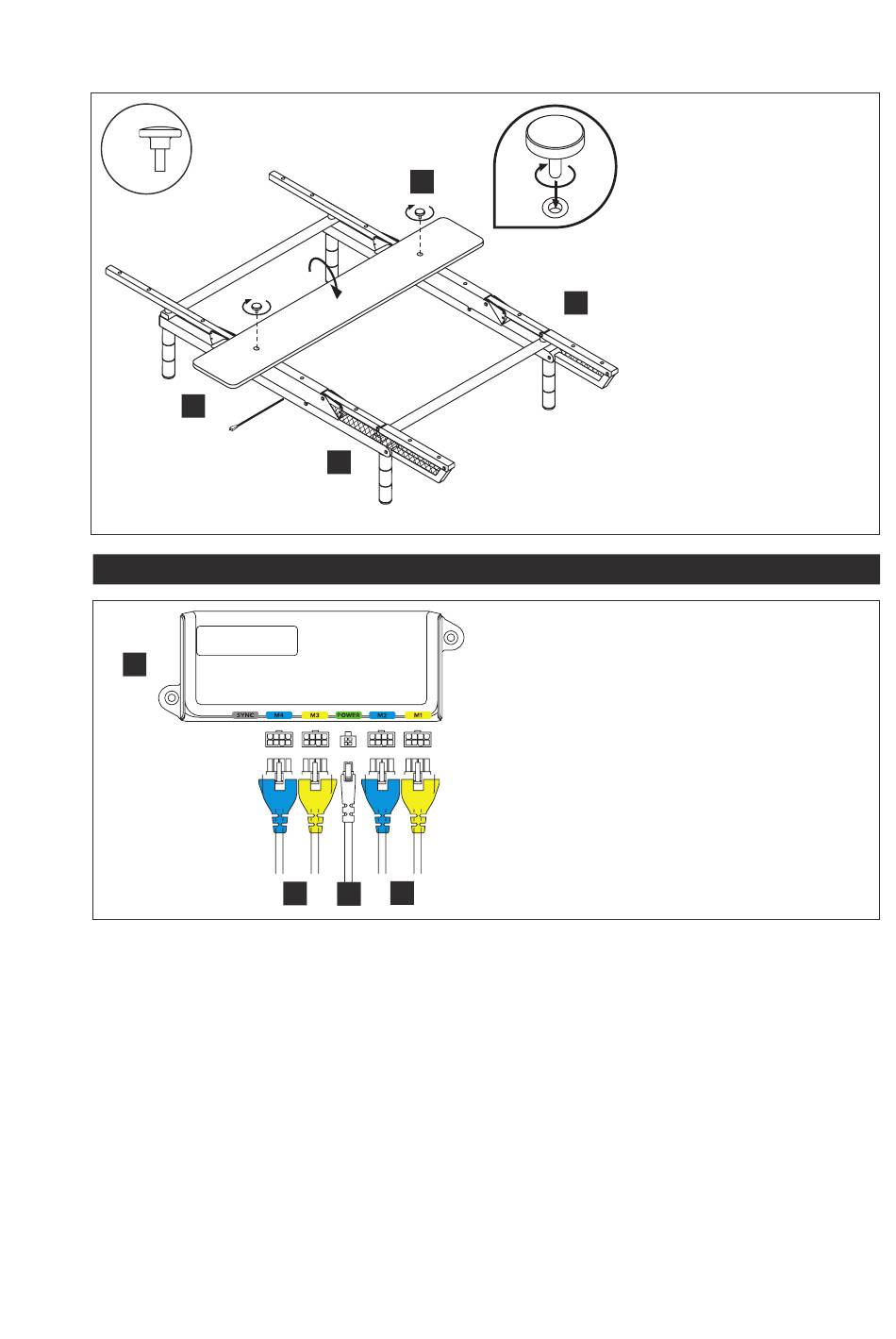

1. Turn over the Base Platform (G)
and lay it flat across the center
of the Bed Frame. The Net
should face downwards.
2. Ensure that the Platform is
correctly positioned. There
should be 2 Mounting Holes on
each Side Rail (A, B) either side
of the Platform.
B
3. Use 2 Platform
(M) to fix the Platform by hand.
Turn each screw until it is hand-
tight.
1. Insert the 4 Motor Cables from
the Side Rails (A, B) into the
Plug Ports on the Control Box
(L). Ensure that the color of the
Plug matches the color of the
Plug Port.
2. Insert the Power Converter
Cable (K) into the Control Box.
Lay the Cable flat along the floor
to reduce the risk of tripping.
Screws
