MultiVOIP 400 User Guide
Click OK. Each component is loaded in succession.

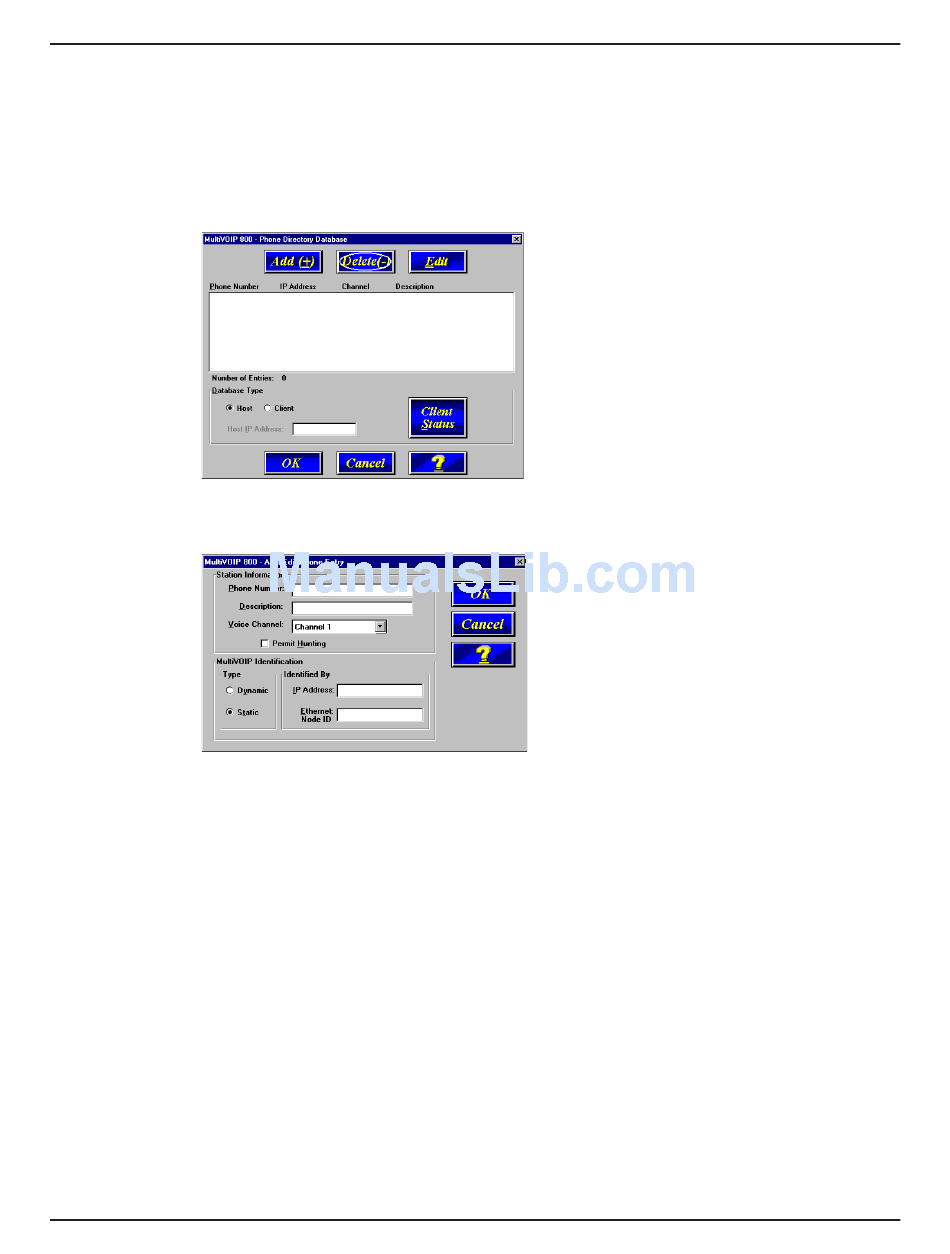

26. From the Program Group, double-click MultiVOIP Configuration. Click Phone Book. The
Phone Directory Database dialog box displays.The Phone Directory Database dialog box
displays. You will build your personalized MultiVOIP Phone Directory in the following steps.
The MultiVOIP configured as a "Host" will contain the host database. The host database has the
phone numbers of all the MultiVOIP's available for communication on an IP network. This database
is downloaded to each Client MultiVOIP as it comes online.
Click Add to begin building your phone directory database.
27. The Add/Edit Phone Entry dialog displays.
In the Station Information group, enter the unique phone number of the local device connected
to Channel 1 in the Phone Number box. For example, phone number 101.
28. The Description is optional, but can be useful in associating the channel to the extension. If you
want, enter a description of your local phone number. This description identifies the phone
number you entered in the previous step.
29. The Permit Hunting option enables the answering unit to roll over to a second channel if the first
channel is busy. Click Permit Hunting if you want the calls to roll over to a second voice/fax
channel. Calls will only roll over within an individual MultiVOIP; for example, if all of a MultiVOIPs
lines or channels are busy, the next call will not hunt to another MultiVOIP.
Note: The Host MultiVOIP must have a static IP address that the remote MultiVOIP can
reference to obtain a downloaded copy of the host phone directory database.
30
