Summary of Contents for Multitech Conduit Cat 4

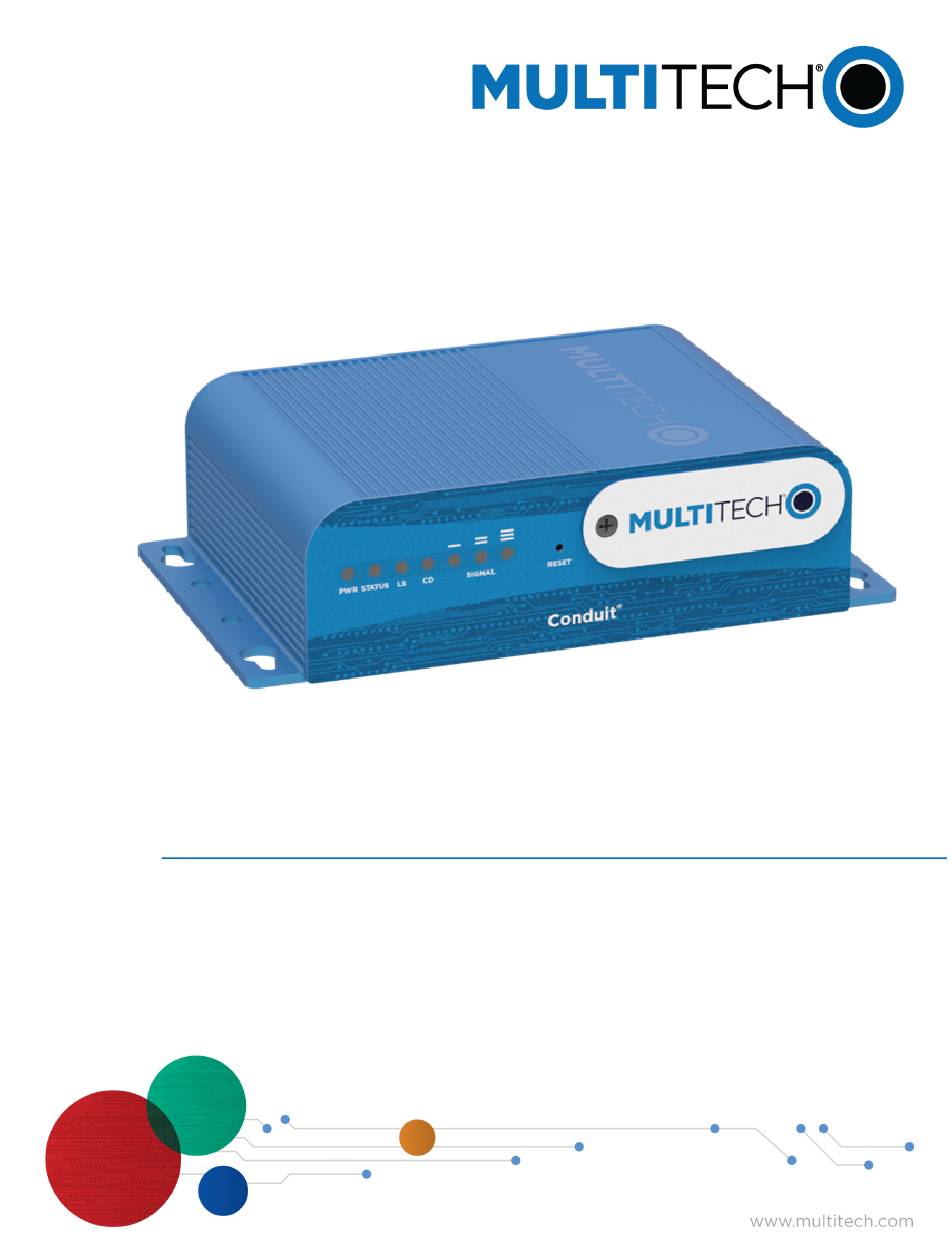

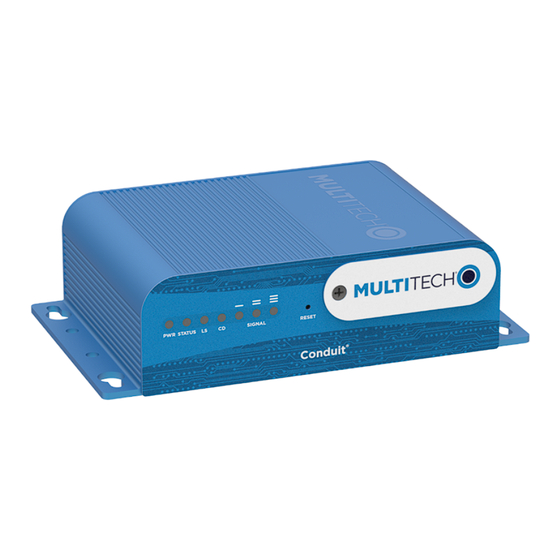

- Page 1 ® Conduit Cat 4 MTCDT-L4G1 Hardware Guide...
- Page 2 Legal Notices The MultiTech products are not designed, manufactured or intended for use, and should not be used, or sold or re-sold for use, in connection with applications requiring fail-safe performance or in applications where the failure of the products would reasonably be expected to result in personal injury or death, significant property damage, or serious physical or environmental damage.
-
Page 3: Table Of Contents
CONTENTS Contents Chapter 1 – Product Overview ..........................5 Introduction .................................. 5 Documentation ................................5 Product Kit Contents ..............................6 Product Build Options ..............................6 Chapter 2 – Specifications............................8 MTCDT-L4G1 Specifications ............................8 LoRa Specifications..............................10 Dimensions.................................. 11 Backpanel Connectors ..............................12 LED Descriptions ................................. - Page 4 CONTENTS Industry Canada Grant Information..........................31 RF Exposure Results/Résultats d’exposition humaine aux RF .................. 32 EMC, Safety, and Radio Equipment Directive (RED) Compliance ................34 Korea Regulatory Information ............................ 34 Certificate for Type Certification in Japan ........................ 34 Regulatory Compliance Mark (RCM) for Australia...................... 35 Lithium Battery ................................
-
Page 5: Chapter 1 - Product Overview
API Developer Guide You can use the Conduit API to manage configurations, poll statistics, and issue commands. Documentation is available on the MultiTech Developer Resources website at: http://www.multitech.net/developer/software/aep/conduit- aep-api/. Quectel AT Commands... -
Page 6: Product Kit Contents
PRODUCT OVERVIEW Product Kit Contents Your Product Kit typically includes the following (varies with model): Device 1 - MTCDT-Conduit Power Supply 1 - 100-240V 9V-1.7A power supply with removable blades 1 - NAM blade/plug 1 - EURO blade/plug 1 - UK blade/plug 1 - AU/NZ blade/plug Cables 1 - DC Power Cable... - Page 7 PRODUCT OVERVIEW Product Description Region MTCDT-L4G1-246L-915-WW LTE Cat 4 mLinux Programmable North America / Australia / Japan Gateway 8-channel, 915 MHz, GNSS w/MTAC-LORA-H-915 mCard and Accessory Kit #4 MTCDT-L4G1-246L-WW LTE Cat 4 mLinux Programmable Global Gateway, GNSS and Accessory Kit #6 (Global) MTCDT-L4G1-247A-868-WW LTE Cat 4 mPower Programmable...
-
Page 8: Chapter 2 - Specifications
SPECIFICATIONS Chapter 2 – Specifications MTCDT-L4G1 Specifications Category Description General Performance 3GPP Rel. 11 LTE UMTS/HSPA+ GSM/GPRS/EDGE USB Interface is CDC-ACM compliant TCP/IP Functions FTP, SMTP, SSL, TCP, UDP LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/ B19/B20/B25/B26/B28 Frequency Bands (MHz) LTE TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: B2/B3/B5/B8 Speed Data Speed... - Page 9 SPECIFICATIONS Category Description Connectors 1 USB device micro Type B debug port 1 RJ-45 Ethernet port 1 USB 2.0 port 2 cellular antenna connectors 1 Wi-Fi/Bluetooth connector (varies with model) 1 GPS antenna connector 1 micro SD card slot 1 Mini SIM 2FF card slot 2 MTAC Accessory Card slots, and if populated with LoRa card(s), 1 or 2 LoRa (RF) Antenna connectors (varies with model) Power Requirements...
-
Page 10: Lora Specifications
SPECIFICATIONS ⁴Via carrier approved MTQ-L4G1-B02. LoRa Specifications Depending on the model, your device has one or two LoRa radios. If the model number includes -868/2 or -915/2, the device has two LoRa radios. Category Description General Standards LoRaWAN 1.0.3 specifications Radio Frequency 915/868 MHz ISM (varies with model) Certifications and Compliance... -
Page 11: Dimensions
SPECIFICATIONS Dimensions ® Conduit Cat 4 MTCDT-L4G1 Hardware Guide... -
Page 12: Backpanel Connectors
AUX - Diversity. AP1, AP2 Slots for MultiTech accessory cards. You can install an accessory card in either slot. Both slots can be occupied at one time. An exception is an SDIO (Secure Digital Input/Output) card, which can be used only in the AP1 slot. Your device may ship with one or more accessory cards pre-installed. -
Page 13: Led Descriptions
SPECIFICATIONS LED Descriptions Conduit mLinux Model Front Panel Conduit mPower Model Front Panel Label Name Description Power Solid (constant) green if unit is on indicating that DC power is present. STATUS Power Status Default condition: LED blinks when mLinux is fully loaded. Link Status Varies with radio model. - Page 14 SPECIFICATIONS Label Name Description Signal Signal Strength These 3 LEDs display the strength of the cellular signal. Present on the Conduit mPower model only. If a cellular radio is installed, the typical LS (Link Status) LED behavior is the following: OFF - No power to the cellular radio Continuously Lit - Not registered Slow Blink (-0.2Hz) - Registered or connected...
-
Page 15: Power Draw
SPECIFICATIONS Power Draw MTCDT-L4G1 with Modem and an MTAC-LORA-H-915 Accessory Card Radio Protocol Cellular Call Box Average TX Pulse (Avg) Total Inrush Total Inrush Connection No Measured Amplitude Charge Charge Data (mA) Current at Max Current (A) Measured in DURATION Power (A) MilliCoulombs during Powerup... -
Page 16: Chapter 3 - Antenna Information
ANTENNA INFORMATION Chapter 3 – Antenna Information Cellular Antenna Cellular devices were approved with the following antenna: Manufacturer: Wieson Description: LTE GY115HT467-017 Model Number: 11320Y11194A1 MultiTech ordering information: Model Quantity ANLTE2-2HRA ANLTE2-10HRA ANLTE2-50HRA Cellular Antenna Specifications Category Description Frequency Range .069~0.96GHz, 1.71~2.17GHz, 2.3GHz~2.69GHz... -
Page 17: Antenna Specifications
Omni-directional Polarization Linear Vertical Connector RP-SMA(M) LoRa Antenna Manufacturer: PulseLarsen Antenna Description: 868-928 MHz RP-SMA Antenna, 8" Model Number: W1063 MultiTech ordering information: Ordering Part Number Quantity AN868-915A-1HRA AN868-915A-10HRA AN868-915A-50HRA LoRa Antenna Specifications Category Description Frequency Range 868-928 MHz Impedance... -
Page 18: Chapter 4 - Setting Up And Configuring The Device
Gently push the new SIM card into SIM card holder face up with the cut corner to the right and the SIM contacts facing toward the Conduit’s interior. If not installing a battery or micro SD card, reattach the MultiTech nameplate to the Conduit using the screw removed in Step 2. -
Page 19: Accessory Port (Mcard) Interfaces
SETTING UP AND CONFIGURING THE DEVICE Accessory Port (mCard) Interfaces The accessory card interface on the Conduit base board has the following interface options: Interface Description Used by all accessory cards. I2C is required for Electronic Identification (EID) support on the accessory card but can be used for other I2C devices. -
Page 20: Installing A Micro Sd Card
If replacing a battery, non-metal tweezers or similar object CR1632 standard coin lithium battery To install or replace the battery: If connected, disconnect power to the Conduit. At the front of the Conduit housing, remove the screw that secures the MultiTech nameplate to the housing. ® Conduit... -
Page 21: Connecting To The Debug Interface
Standard USB Micro B cable Disconnect power to the Conduit, if it is connected. At the front of the Conduit housing, remove the screw that secures the MultiTech nameplate to the housing. Locate and identify the USB debug cable connector in the center of the opening. Make sure have the appropriate cable available (if you have the 3-pin connector, see cable details below). - Page 22 SETTING UP AND CONFIGURING THE DEVICE If you have the 3-pin connector, connect the 3-pin cable to the debug connector. Connect the Type A end of the USB cable to the host. From the host, use an application such as TeraTerm with a baud rate of 115,200. If the USB driver does not automatically install, do the following: Unplug the USB cable.
- Page 23 SETTING UP AND CONFIGURING THE DEVICE Purchase a USB to 3.3V Serial UART cable with a USB-A connector for the host end and three leads on the device end. See cable information for details. Purchase a 3-pin connector using crimp-style contacts for the device end of the cable. See connector information for details.
- Page 24 SETTING UP AND CONFIGURING THE DEVICE Olimex cable FTDI Cable ® Conduit Cat 4 MTCDT-L4G1 Hardware Guide...
-
Page 25: Restoring User Defined Settings
SETTING UP AND CONFIGURING THE DEVICE Connector Information Description Manufacturer P/N or Product Number Contacts 3-pin connector with JST-ZHR-3 SZH-002T-P0.5 crimp-style contacts (female socket) Restoring User Defined Settings You need: A pin, paperclip, or similar thin object that can fit into the reset hole. To restore user defined settings for an mPower device: Locate the hole in the panel labeled RESET. - Page 26 SETTING UP AND CONFIGURING THE DEVICE For mLinux models: Press and hold the RESET button for less than 5 seconds, then release. Holding it beyond 5 seconds resets an mLinux device to factory defaults. The status LED will keep blinking normally for a couple of seconds until the unit resets. Then the status light will stay solid while the device reboots.
-
Page 27: Powering Up The Device
Use only the power cord provided with the device. Using any other power cord voids the warranty and can damage the device. To power up the device: Install the desired MultiTech accessory card or cards into the slots at the back of the device. Refer to the appropriate installation documentation for the accessory card. Note: Some models already have MTAC cards installed. -
Page 28: Chapter 5 - Regulatory & Safety Information
The MultiTech Conduit is an open embedded development product. Configurations of this product may optionally contain a sub GHz radio technology which MultiTech has certified for compliance with US and Foreign compliance bodies including FCC, R&TTE and others. (e.g. FCC 15.247:2015 & IC RSS-210:2010). - Page 29 REGULATORY & SAFETY INFORMATION FCC Rule Parts: 22H, 24E, 27, 90 Rule Parts Frequency Range Output Watts Frequency Tolerance Emission Designator 824.2 - 848.8 1.8493 0.1 PPM 247KGXW 824.2 - 848.8 0.4797 0.1 PPM 245KG7W 1850.2 - 1909.8 1.3335 0.1 PPM 249KGXW 1850.2 - 1909.8 0.6012...
- Page 30 REGULATORY & SAFETY INFORMATION Rule Parts Frequency Range Output Watts Frequency Tolerance Emission Designator 819.0 - 819.0 0.1738 0.1 PPM 8M91W7D 814.7 - 823.3 0.2455 0.1 PPM 1M09G7D 814.7 - 823.3 0.1972 0.1 PPM 1M09W7D 831.5 - 841.5 0.2582 0.1 PPM 13M5G7D 831.5 - 841.5 0.1828...
-
Page 31: Industry Canada Class B Notice
REGULATORY & SAFETY INFORMATION Industry Canada Class B Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Reglement Canadien sur le matériel brouilleur. -
Page 32: Rf Exposure Results/Résultats D'exposition Humaine Aux Rf
REGULATORY & SAFETY INFORMATION RF Exposure Results/Résultats d’exposition humaine aux RF Type Value/Valeur Compliance Distance/Distance de conformité 5.6 W/m2 200 mm Specificati Issue Frequency Emission Power/Puissance Field Dist. on/Cahiers Number/N Range/Gamme de Designator Strength/I uméro de fréquence /Désignatif ntensité charges la version d’émission de champ... - Page 33 REGULATORY & SAFETY INFORMATION Specificati Issue Frequency Emission Power/Puissance Field Dist. on/Cahiers Number/N Range/Gamme de Designator Strength/I uméro de fréquence /Désignatif ntensité charges la version d’émission de champ RSS132 From/De To/À Min. Max. RSS139 1720.0 1745.0 17M9W7D- 208.0 mW 377.0 mW -- RSS199 1710.7 1754.3...
-
Page 34: Emc, Safety, And Radio Equipment Directive (Red) Compliance
Council Directive 2014/53/EU on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. MultiTech declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity may be downloaded at https://www.multitech.com/red... -
Page 35: Regulatory Compliance Mark (Rcm) For Australia
If the device is left powered off, the battery lasts approximately 90 days. When this battery starts to weaken, the date and time may be incorrect. Battery is not user replaceable. If the battery fails, the device must be sent back to MultiTech Systems for battery replacement. -
Page 36: Device Maintenance
Do not expose the device to water, rain, or spilled beverages. It is not waterproof. Exposure to liquids could result in damage to the device. Using accessories, such as antennas, that MultiTech has not authorized or that are not compliant with the device's accessory specifications may invalidate the warranty. -
Page 37: Radio Frequency (Rf) Safety
REGULATORY & SAFETY INFORMATION Compliance of the device with the FCC, EU and IC rules regarding RF Exposure was established and is given with the maximum antenna gain as specified above for a minimum distance of 20 cm between the devices radiating structures (the antenna) and the body of users. -
Page 38: Interference With Pacemakers And Other Medical Devices
REGULATORY & SAFETY INFORMATION Interference with Pacemakers and Other Medical Devices Potential interference Radio frequency energy (RF) from cellular devices can interact with some electronic devices. This is electromagnetic interference (EMI). The FDA helped develop a detailed test method to measure EMI of implanted cardiac pacemakers and defibrillators from cellular devices. -
Page 39: Chapter 6 - Environmental Notices
Substances) complements the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase. The WEEE Directive covers all MultiTech products imported into the EU as of August 13, 2005. EU-based manufacturers, distributors, retailers and importers are obliged to finance the costs of recovery from municipal collection points, reuse, and recycling of specified percentages per the WEEE requirements. -
Page 40: Restriction Of The Use Of Hazardous Substances (Rohs)
2015/863 of the European Parliament (Restriction of the use of certain Hazardous Substances in electrical and electronic equipment - RoHS 3). These MultiTech products do not contain the following banned chemicals Lead, [Pb] < 1000 PPM Mercury, [Hg] <... -
Page 41: Information On Hs/Ts Substances According To Chinese Standards (In Chinese)
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards (in Chinese) 依 依 照 照 中 中 国 国 标 标 准 准 的 的 有 有 毒 毒 有 有 害 害 物 物 质 质 信 信 息 息 根据中华人民共和国信息产业部... -
Page 42: Information On Hs/Ts Substances According To Chinese Standards
ENVIRONMENTAL NOTICES Information on HS/TS Substances According to Chinese Standards In accordance with China's Administrative Measures on the Control of Pollution Caused by Electronic Information Products (EIP) # 39, also known as China RoHS, the following information is provided regarding the names and concentration levels of Toxic Substances (TS) or Hazardous Substances (HS) which may be contained in Multi-Tech Systems Inc.
