Back Panel Description

The cable connections for the MultiVOIP are made at the back panel. Connectors include Power,

Command Port (RS232), Ethernet (10BASE-T), Voice/Fax Channels (E&M, FXO and FXS). The

cable connectors are shown in Figure 1-4 and defined in the following groups.

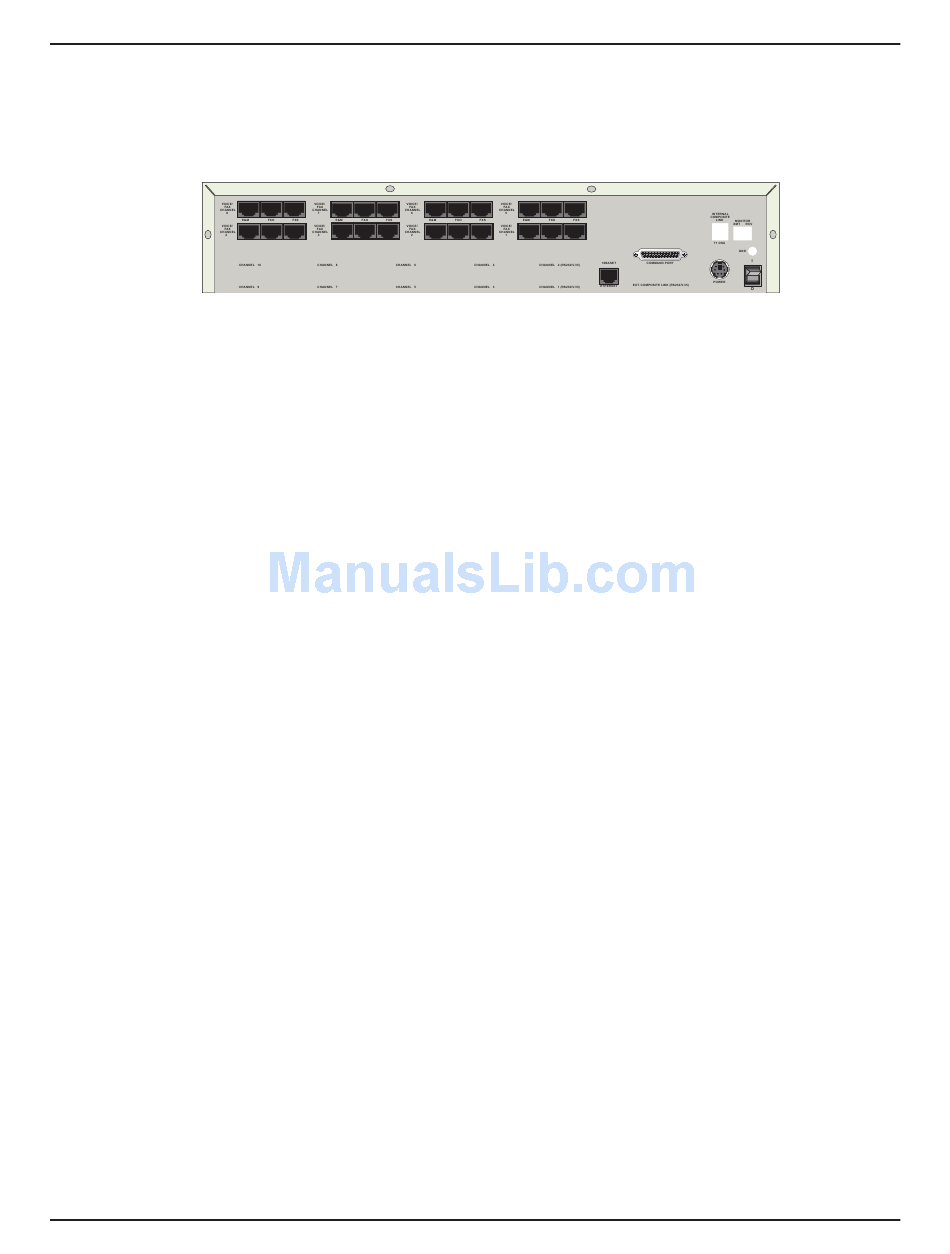

Figure 1-4. Back Panel

The Power connector is used to connect the external power supply to the MultiVOIP. The Power

connector is a 7-pin circular DIN connector. A separate power cord is connected to the power supply

and the live AC grounded outlet.

The Command Port connector is used to configure the MultiVOIP using a PC with a serial port and

running Windows® software. The Command Port connector is a DB-25 female connector.

The Ethernet 10Base-T connector is used to connect the MultiVOIP to a LAN using unshielded

twisted cable. This connector is a keyed RJ-45 jack.

The Voice/Fax channel connectors include three options per channel: E&M, FXO and FXS.

E&M - This connector is used if you are connecting VOICE/FAX CHANNEL _ to the E&M trunk on a

PBX. This connector is an RJ-45 jack.

FXO - This connector is used if you are connecting VOICE/FAX CHANNEL _ to the station side of a

PBX. This connector is an RJ-11 jack.

FXS - This connector is used if you are connecting VOICE/FAX CHANNEL _ to a station device, etc.,

an analog telephone, KTS telephone system, or fax machine. This connector is an RJ-11 jack.
