Intellitronix DP/BG10003 Installation Manual page 3

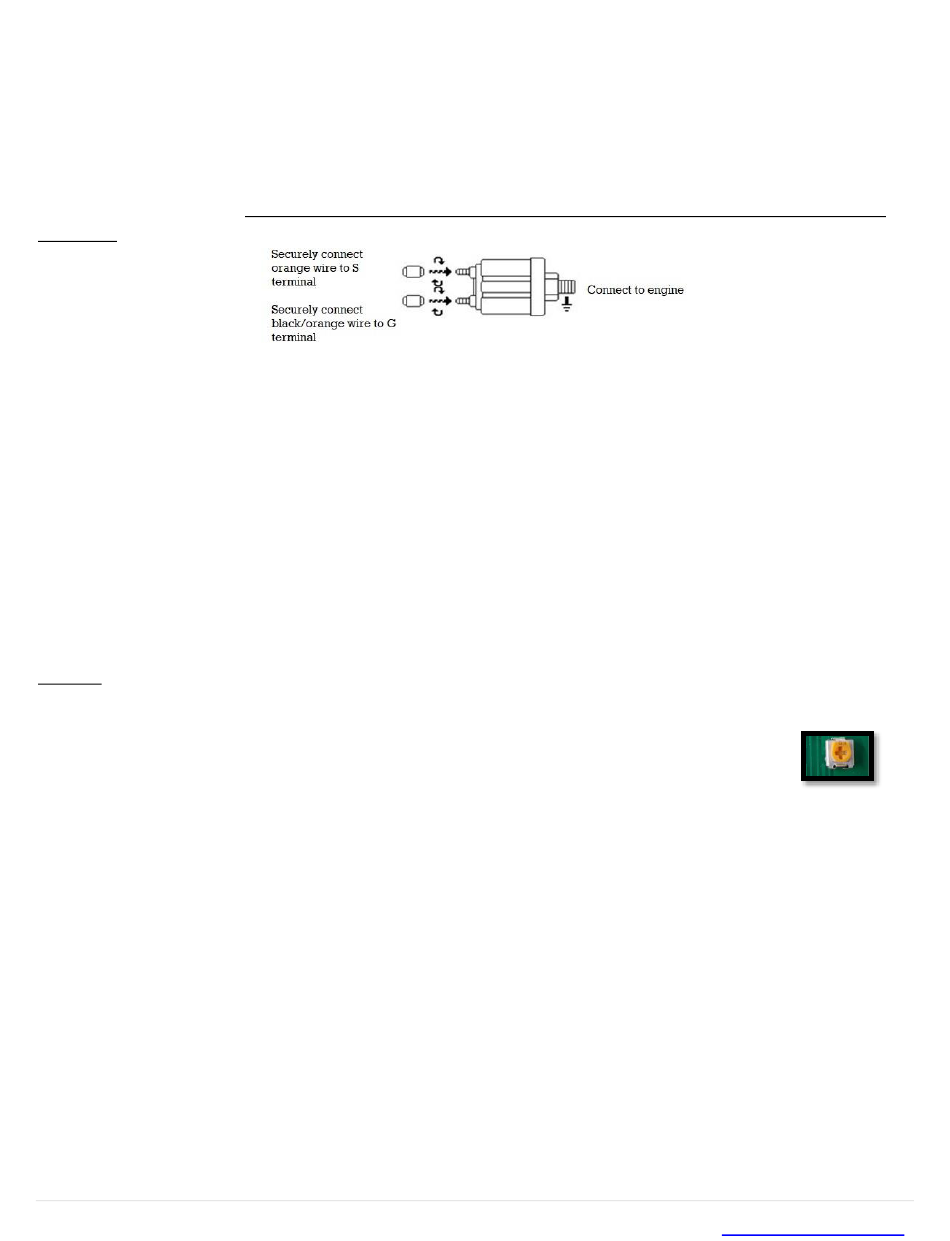

Oil Pressure – Orange - Replace the existing oil pressure sending unit with the unit included with
your gauge. The Orange wire will get wired to the S terminal on the sending unit. This gauge is
incompatible with other sending units, so you must replace the existing water temperature sending
unit with the included sender and wire pigtail. These wires will be both be wired to dash panel.
Oil Pressure – Black/ Orange -This is ground for oil pressure sender and must be wired to the G
terminal on the sender (THIS IS ONLY IF YOU HAVE TWO WIRE OIL PRESSER SENDER which
are new)
Dimmer – Purple Connect to the parking lights to dim the LEDs 50% when the headlights are on.
However, *DO NOT * connect to the headlight rheostat control wire, or the dimming feature will not work
properly and may cause damage to the Unit.
Brake – Brown - Connect to the parking brake or wire from the dash to negative side of parking
brake light switch. NOTE: If you are using a one wire switch you may need to switch to a two-wire
switch. This wire is an optional wire some vehicles may not require
High-Beam – Light Blue - Connect the Light Blue wire on the Dash unit to your high beam headlight
circuit. This wire is powered on when the high beam is turned on and receives 12 volts.
Right Turn Signals - Grey 18-gauge wire is the - RIGHT turn signal
Left Turn Signals – Tan 18-gauge wire is the – Left turn signal.
NOTE: Each wire is also labeled on the printed circuit board as 'LEFT' or 'RIGHT'. Connect each
wire to its corresponding indicator circuit.
Voltage Gauge – This Gauge Requires no wire hookup. Volt Gauge is built into the
dash panel and is powered by the main power and ground connection of the dash.
It does have an Adjuster to fine tune the voltage. Note: you will need to adjust it
before fully installing the dash
CABLE BUTTONS
Trip/Cal Button - Grey Cable Button or Push button on Dash - There are two grey wires
connected to the push-button for the speedometer board. Mount the switch in a convenient location
such as under the steering column so that you may easily reset your trip odometer or other
speedometer functions.
Tach program Button – Grey Cable Button or Push button on Dash There are two grey wires
connected to the push-button for the tachometer board. Mount the switch in a convenient location
such as under the steering column so that you may easily set the other functions of the tachometer.
Check Engine - Green/Yellow Connect to the Negative side of the Check Engine Light circuit.
Check Engine light will come on when working with a PCM
