1.5 Components

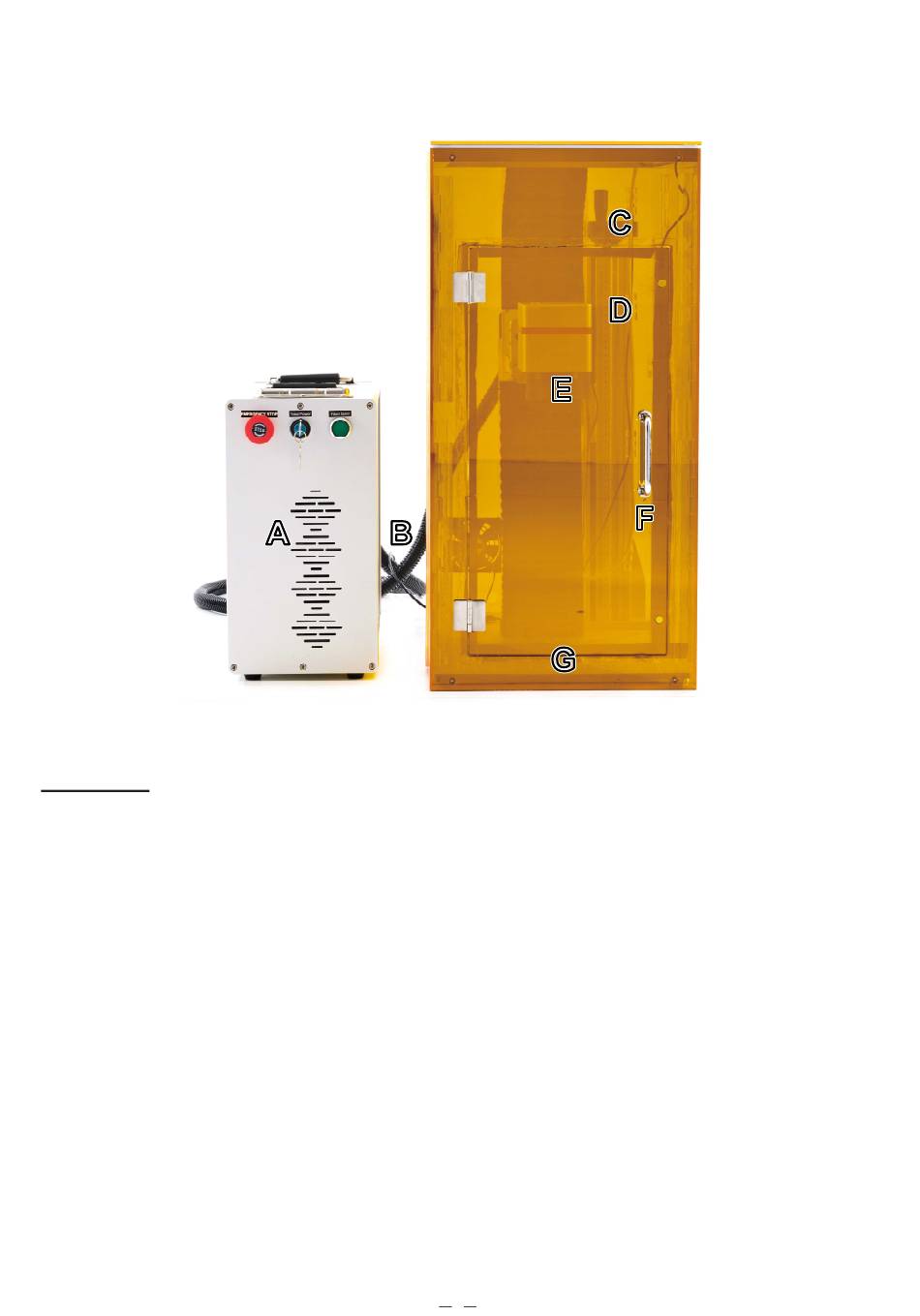

Main Parts

A. Main Tower—This houses the fibre laser source, its mainboard, and various connections.
B. Laser Cable—This transmits the laser beam from its source to the galvonometric lens.
C. Support Column—The support column holds the laser arm and includes a precise graduated rule for quickly
adjusting height to work with different materials and thicknesses.
D. Height Adjustment Knob—This wheel moves the laser arm up and down for the correct alignment across different
materials and thicknesses.
E. Galvo Lens Head—The high-speed galvanometer scanning head focuses the laser beam to a fine point, directing it
to proper locations on the target material during engraving.
F. Protective Covering—This protects onlookers from the potentially harmful effects of the invisible laser and its
reflections. Its exhaust fan will put out gasses and airborne dust from your worktable, sending it through your vent
to a window or air purifier.
G. Worktable—This platform holds the target material, with optional positioning bars to ensure precise
alignment.
A A B B
C C
D D
E E
G G
3 3
F F
