1.5 Components

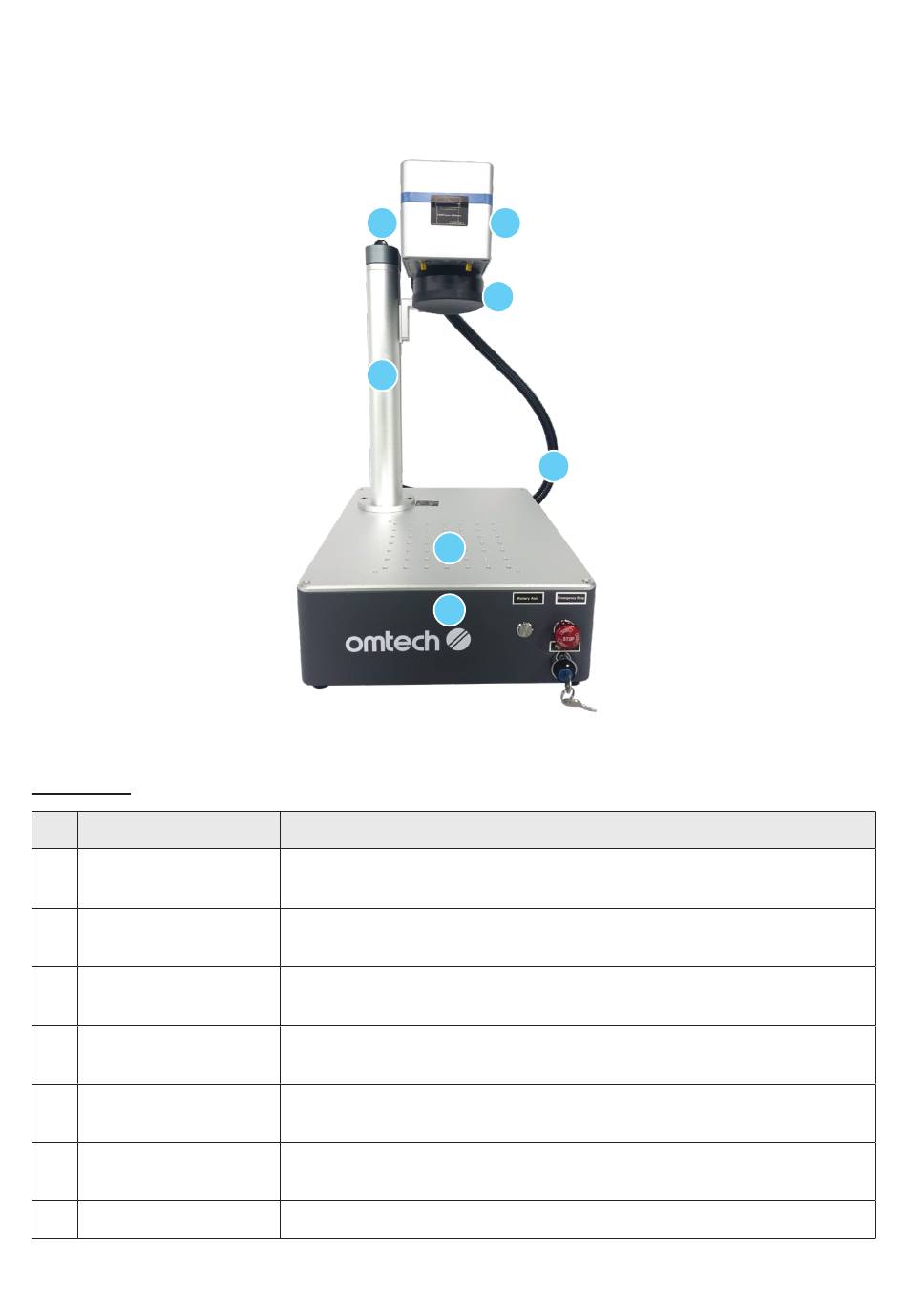

Main Parts
No. Name
A
Focus Adjustment Wheel
B Support Column
C Galvo Scanning Head
D Field Lens
E
Worktable
F Control Box
G Laser Cable
A
B
E
F
Function
This wheel moves the laser arm up and down for the correct focus alignment
across different materials and thicknesses.
The support column holds the laser arm and provides stability and support to the
machine's moving parts.
The high-speed galvanometer scanning head focuses the laser beam to a fine
point, directing it to proper locations on the target material during engraving.
The field lens creates vivid markings on flat surfaces by maintaining a consistent,
focused laser spot size across its working area.
This worktable holds the target material and has optional positioning holes for
aligning and positioning the marking targets accurately.
It houses the control system and various electronics that are responsible for
controlling and managing the operation of the machine.
It transmits the laser beam from its source to the marking head.
4
C
D
G
