End-of-line (EOL) Switch

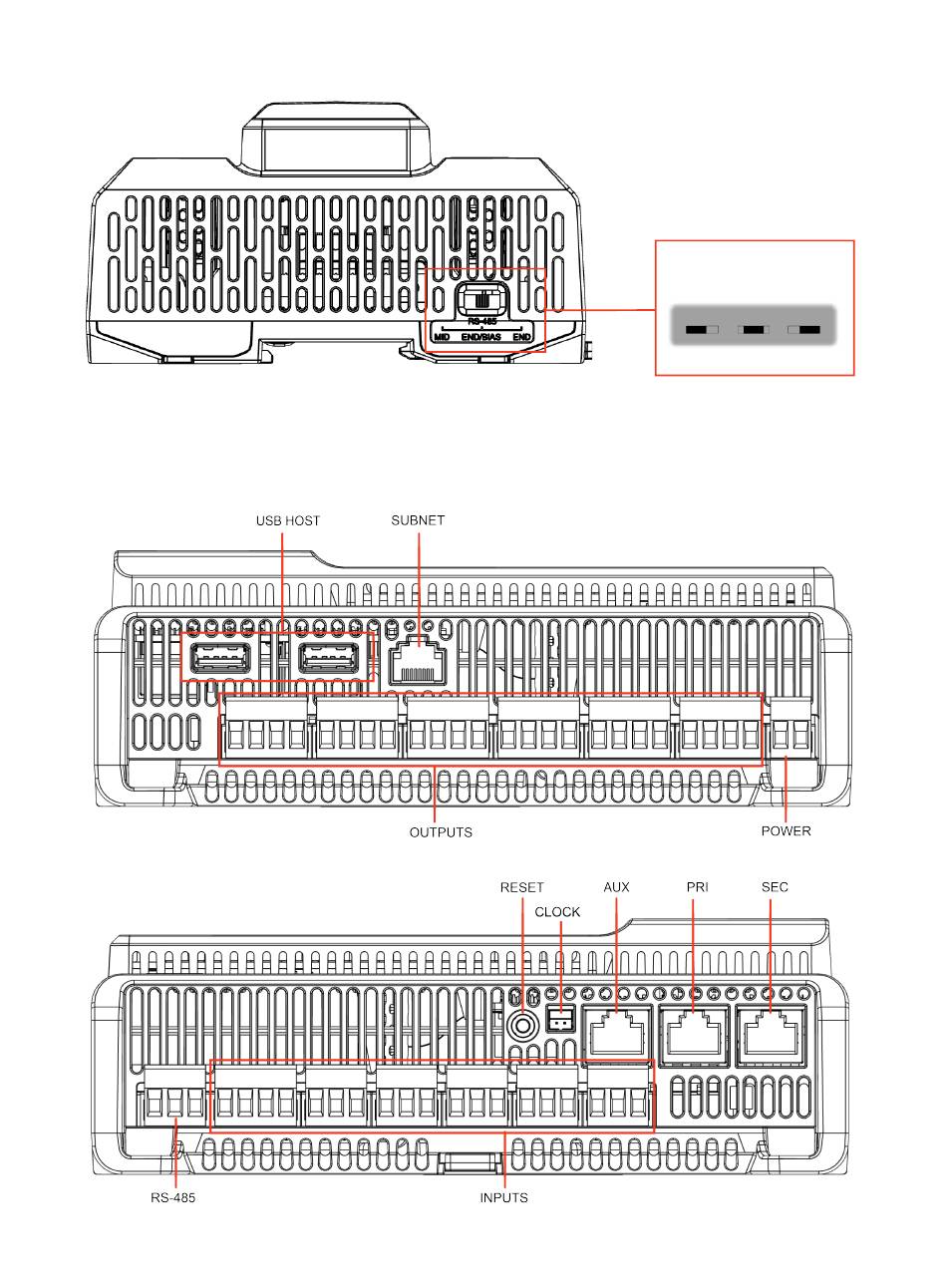

Controllers have an integrated EOL switch located on the side, as shown in the figure below.
Figure 4:
RS-485 EOL Termination Option Configuration Switch Location
Ports and Reset Button
Controllers have a Reset button and the following ports as shown in the figures below:
Figure 5:
Port locations - top view
Figure 6:
Port locations - bottom view
4 / 15
RS-485 EOL Termination
Option Configuration
END/BIAS
MID
END
