Connecting To The Controller's Configuration Web Interface - Distech Controls ECLYPSE ECY-400 Series Installation Manual

Using the Controller's Secondary Ethernet IP Address
The secondary port has a static IP address of 192.168.100.1. This procedure is useful when you don't know the controller's primary IP address.
1. Connect your computer to the controller's secondary Ethernet port.
2. Open your Web browser.
3. In the Web browser's address bar, enter the secondary port's default IP address (192.168.100.1).
4. Login to the controller. Then set the controller's configuration parameters in the controller's configuration Web interface. See Connecting to the Con-
troller's Configuration Web Interface.

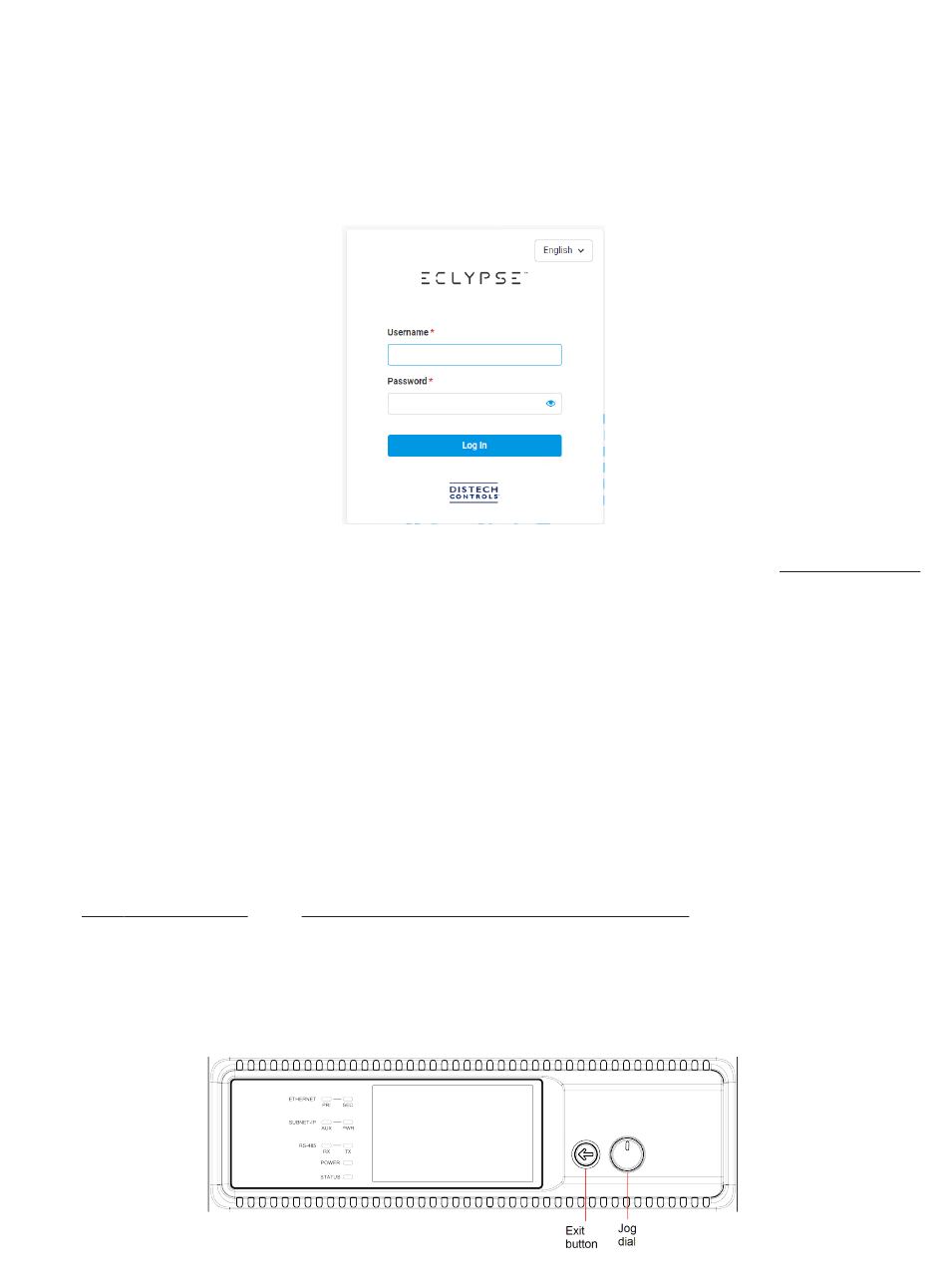

Connecting to the Controller's Configuration Web Interface

When connecting to an ECLYPSE Controller for the first time, you will be prompted to change the password.
In Network Settings, configure the controller's network parameters so that they are compatible with your network. See the ECLYPSE User Guide for
more information about network settings and how to secure the controller. It is important to create new user accounts with strong passwords to protect
the controller from unauthorized access. Remove the factory default admin account as this is a commonly known security breech (only the password for
this user account needs to be compromised).
Using the Controller's Operator Interface
Once some code has been created in EC- gfx Program and then synchronized with the controller, various objects (points, schedules, PID loops, and so
on) used in the code become visible through this operator interface. Object values can be viewed and, in many cases, modified or overridden.
Configuration of this operator interface is done in EC- gfx Program in the LCD Screen block when the controller is programmed. The following items can
be configured:
£ The title of the main screen can be set.
£
The About menu content can be configured.
£
The passwords can be set for multiple users according to their role.
£ The operator interface languages can be set.
Other menus, such as Favorites and Weather, may be greyed-out (that is, inaccessible) on your operator interface screen when the corresponding ob-
jects have not previously been configured through EC- gfx Program for this controller.
Refer to the EC- gfx Program User guide and the ECx-Display And ECB & ECL 50 Series Controllers User Guide for more information.
Navigation
Navigating throughout the operator interface is done by using the Jog Dial and the EXIT button:
£ By turning the Jog Dial , you can highlight screen icons, context menu options, or change a parameter's value.
£ By pressing the Jog Dial , you can select the current icon to enter a menu, select a context menu option, or to enter the current parameter's value.
£
By pressing the EXIT button, you can navigate back to the previous menu or item while cancelling any changes that have been made.
11 / 15
