2.1.4. AVS Docking Mechanism

The AVS hardware also contains a patented docking mechanism to connect the AVS
Console to the AVS hardware.
Figure 8 below displays the procedure for docking the AVS Console to a Validator AVS
via its docking station.
Note: The AVS Console can be docked to the AVS hardware with or without power
applied to the AVS hardware or AVS Console. The AVS Console can be
undocked from the AVS hardware with power off.
If Power is applied to Console and to AVS hardware, ensure that you first
navigate to Main screen in the AVS software and press "Disconnect" (upper
right side of the screen). Failure to do so could cause connection problems for
the next connection.
Kaye Validator AVS User Manual

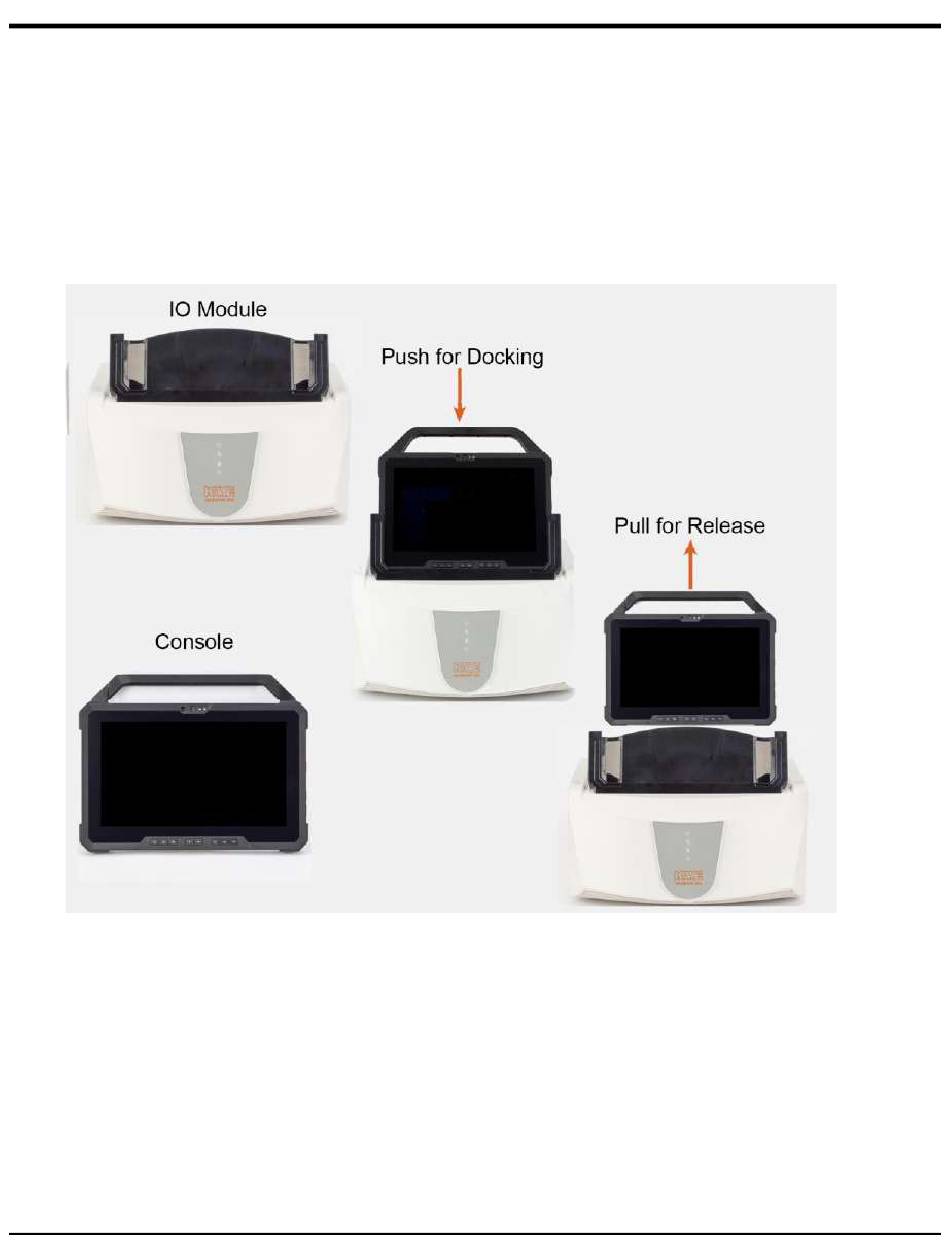

Figure 8: Docking and Releasing Console
