Mark Cycles - Kaye Validator AVS User Manual

Chapter 11: Qualification Reports
11.8.2.

Mark Cycles

Before generating Qualification reports, use the Define Qual / Exposure screen to
review, or modify, the Qual Start/ End and or Exposure Start / End cycles times from
the Qualification study data. Each cycle is defined with a start and end time which
define the cycle duration. The defined cycles are used in the Qualification Summary
and Pass/Fail Criteria report to provide detailed calculations and analysis during
specified cycles.
The existing Qual and Exposure times and duration are listed in the table above the
graph. To edit any of the times select the pen icon for the selected time to change. A
pop-up window opens for selection for Time Marker or Events to change the selected
cycle time.

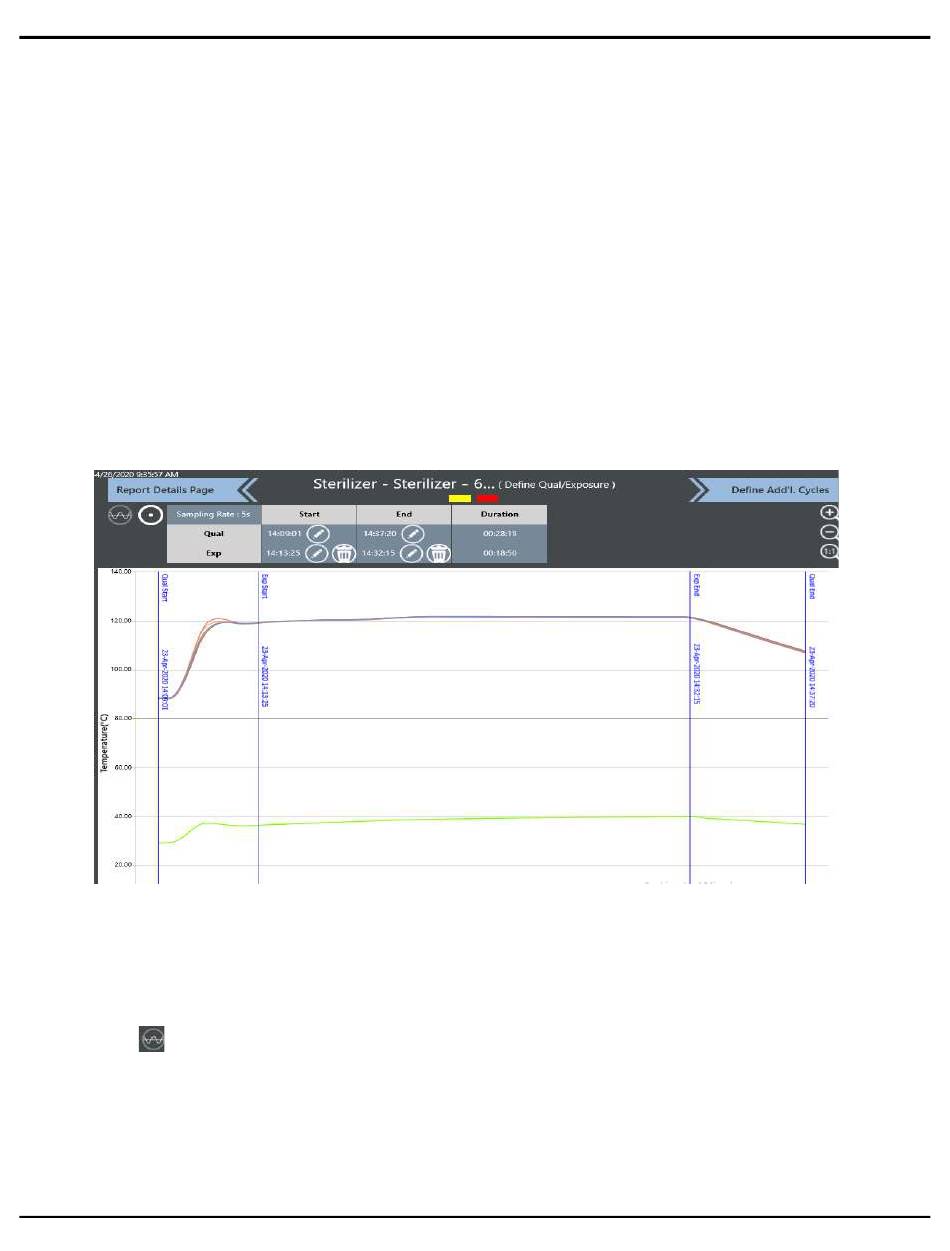

Figure 104: Mark Cycles Screen
Selecting Time / Marker displays a line marker. The time can be changed manually by
using the dropdown from the time box or via the marker by sliding the line to the
selected time and select the Checkmark. Options such as the Zoom icons, adding
Limit Lines or Selecting the Marker Position, improve the ability to accurately edit
times. The process can then be repeated for any necessary edits to Qual / Exposure
times.
Kaye Validator AVS User Manual 155
