Chapter 11: Qualification Reports

11.4. Graph Reports

Graph reports offer a flexible tool to analyze data from the raw encrypted Qualification
file and create numerous graph reports.
The Graphs reports, calculations, and groups they utilize are based on the sampling
rate along with other parameters defined in the Setup.

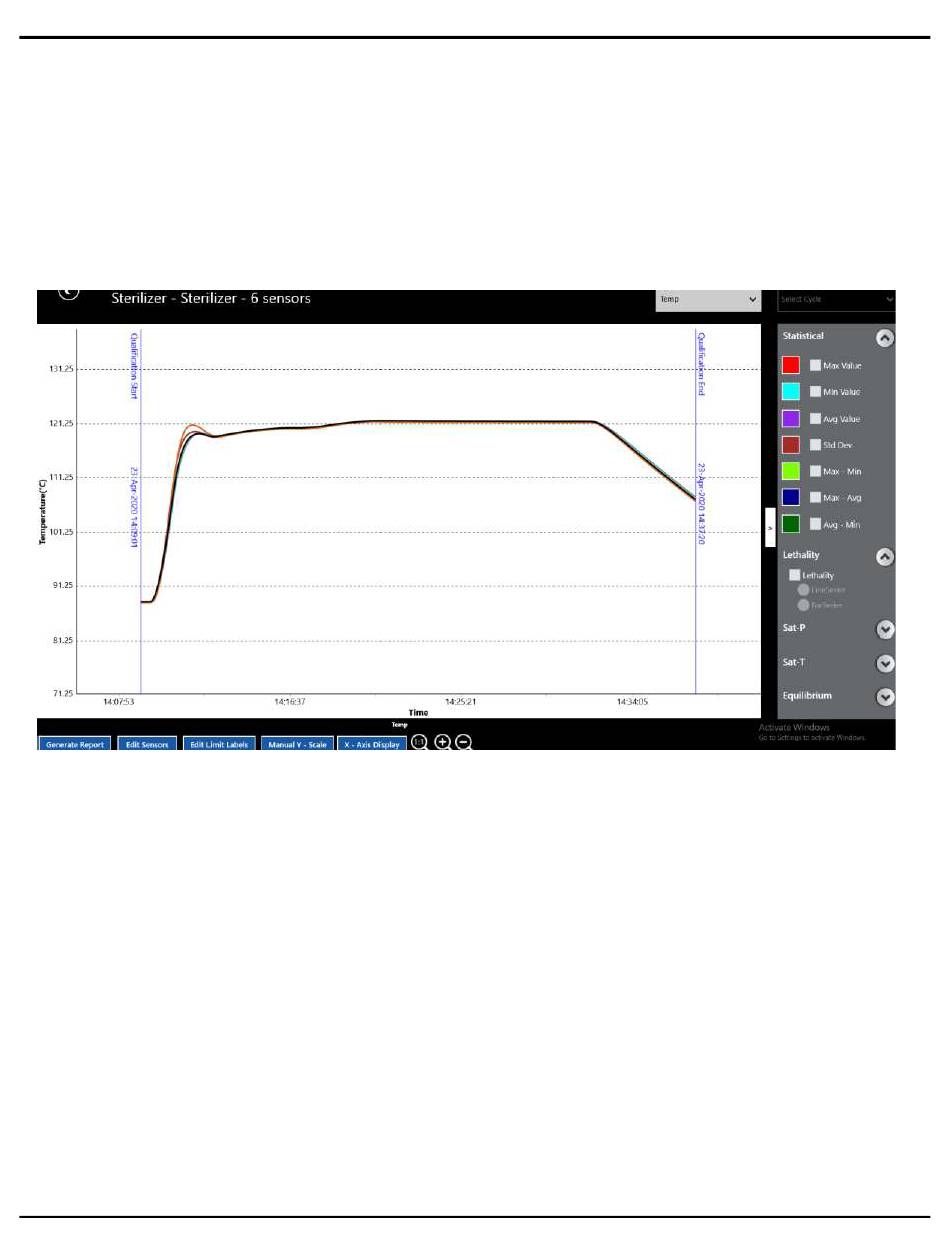

Figure 94: Graph Report Screen
The Graph report defaults to displaying All Temp Sensors for the duration of the
Qualification study. Use the Select Group dropdown at the top right of the screen, to
select different types of sensors or groups to display. Use the Cycle dropdown to select
defined Cycles for graphing.
Use the > or < to the right of the graph to maximized to full screen or minimized the
graph.
From the right pane, select data based on different calculations such as Statistical
calculations, Lethality, Saturation Pressure and Temperature or Equilibrium to graph.
