Print Mechanism - Intermec EasyCoder F2 Installation & Operation Manual

Chapter 2 Installation

Print Mechanism

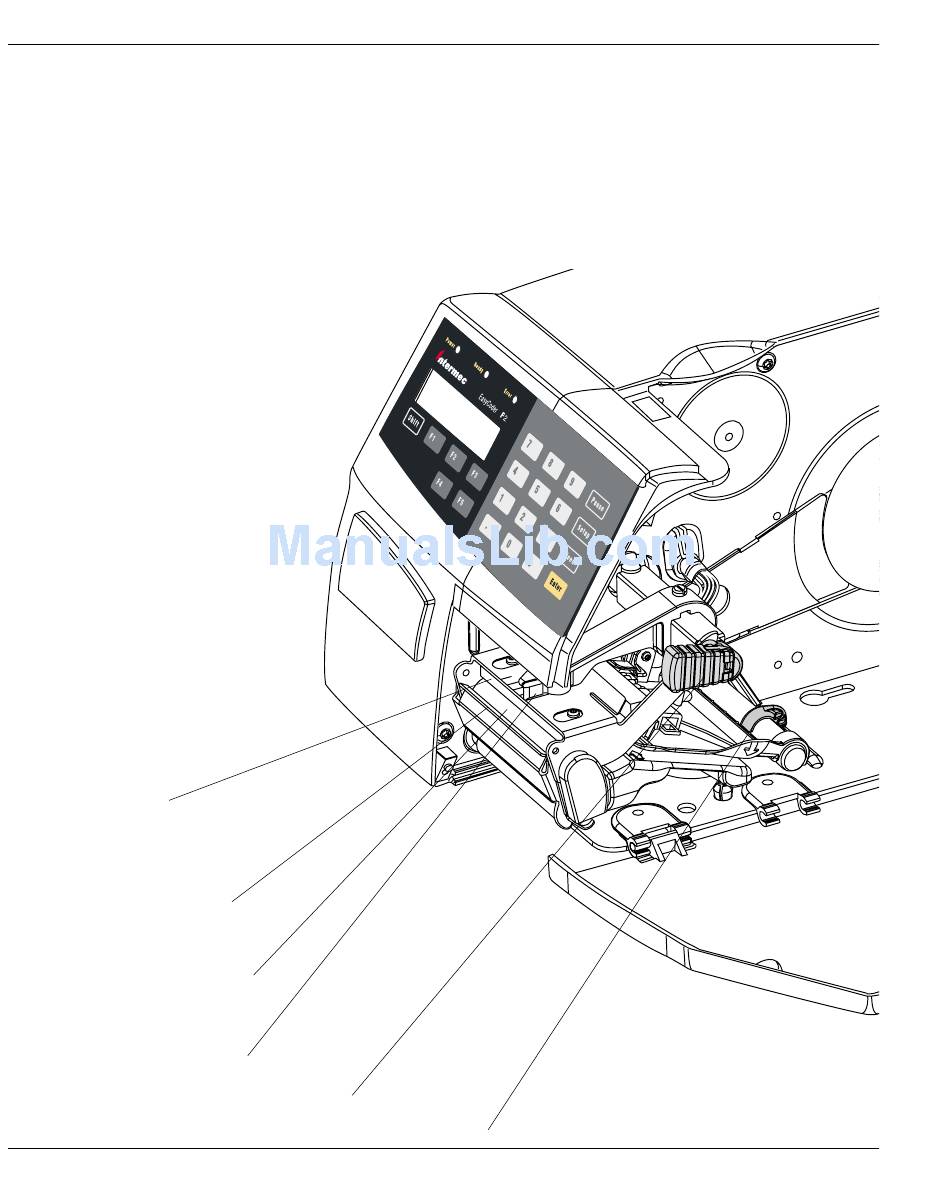

Thermal Printhead
Tear Bar
Platen Roller
Pressure Arm
14
The print mechanism features a high-performance 8 dots-per-mm
(203.2 dots-per-inch) thermal printhead with quick-mount fi ttings
to facilitate replacement. The thermal transfer ribbon mechanism
is omitted in dedicated direct thermal printing models. Refer to
Chapter 5, "Thermal Transfer Printing" and Chapter 8, "Options"
for illustrations of the optional thermal transfer mechanism, which
is partly integrated with the print mechanism.
Printhead Lift Lever
Intermec EasyCoder F2 – Installation & Operation IPL Version, Ed. 1
Edge Guide
