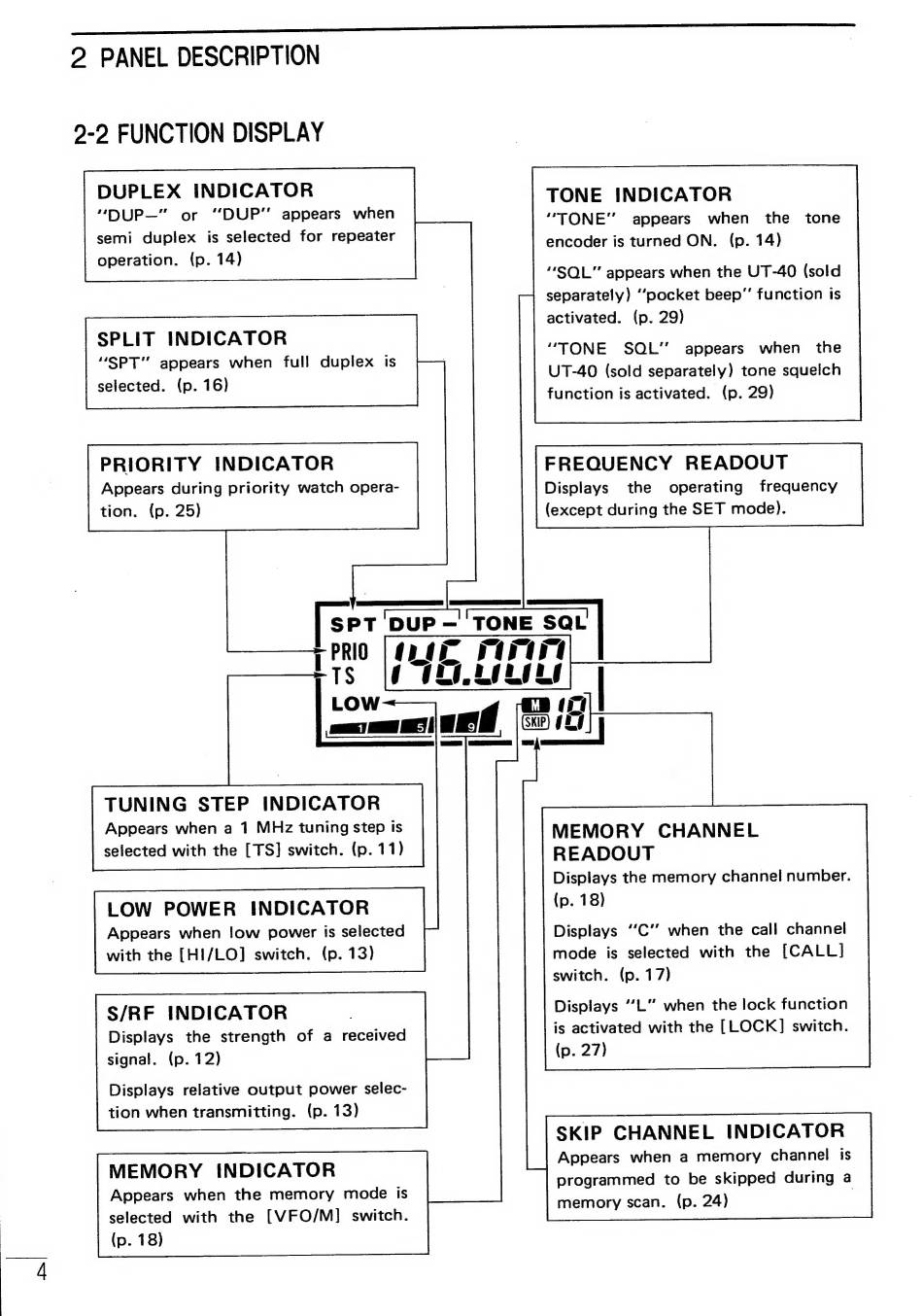

2-2 FUNCTION DISPLAY
DUPLEX INDICATOR
TONE INDICATOR
'"TONE" appears when the tone
encoder is turned ON. (p. 14)
"SQL" appears when the UT-40 (sold
separately) "pocket beep'' function is
activated. (p. 29)
"TONE SQL" appears when the
UT-40 (sold separately) tone squelch
function is activated. (p. 29)
SPLIT INDICATOR
"SPT" appears when full duplex is
selected. (p. 16)
PRIORITY INDICATOR
Appears during priority watch opera-
tion. (p. 25)
FREOUENCY READOUT
Displays the operating frequency
(except during the SET mode).
TUNING STEP INDICATOR
Appears when a 1 MHz tuning step is
selected with the [TS] switch. (p. 11)
MEMORY CHANNEL
READOUT
Displays the memory channel number.
(p. 18)
Displays "C" when the call channel
mode is selected with the [CALL]
switch. (p. 17)
LOW POWER INDICATOR
Appears when low power is selected
with the [HI/LO] switch. (p. 13)
S/RF INDICATOR
Displays the strength of a received
signal. (p. 12)
Displays relative output power selec-
tion when transmitting. (p. 13)
MEMORY INDICATOR
Appears
when
the memory
mode
is
selected with the [VFO/M] switch.
(p. 18)
